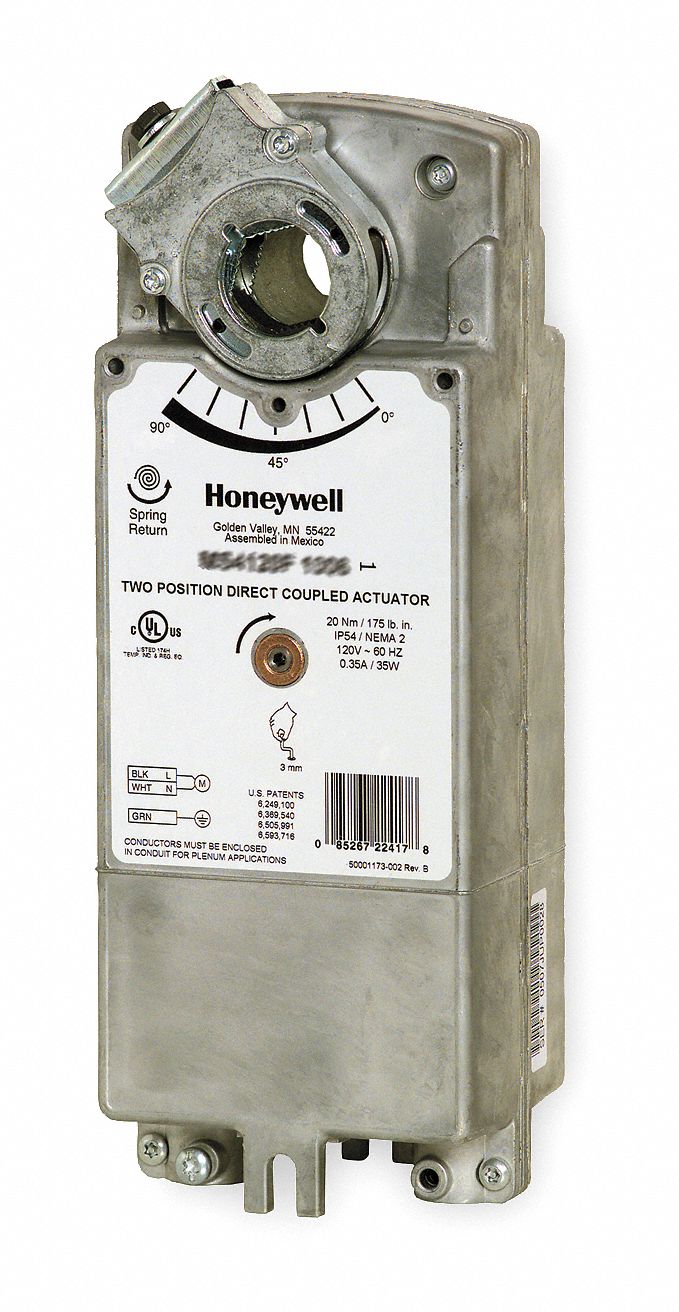

HONEYWELL Two-Position Actuator, Spring Return

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Two-Position Actuator, SPST, Shaft Type 3/8 To 1.03 Round Or 3/8 To 11/16 Square, Torque 175 In-Lbs, 95 +/- 3 Stroke Deg, Height 10 11/16 In, Width 2 15/16 In, Depth 3 15/16 In, Electrical Connections Two Integral 3/8 In Flexible Conduit Connections, Ambient Temp. Range -40 To 130 F, Power Consumption Driving 0.35A, 35W, Holding 0.15A, 10W, Timing 15 Nominal at 60Hz, 15 Max Spring return Sec, 120, For Use With Dampers, Includes Spring Return, Fast Acting Two-Position

Grainger Item #	2HEY9
Price (ea.)	$379.00
Brand	HONEYWELL
Mfr. Model #	MS4120F1006
UNSPSC #	31251501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	8.16
Availability	Typically in Stock
Catalog Page No.	4590
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Actuator
Type		Spring-Return
Shaft Type		3/8 to 1-3/8" Round or 3/8 to 11/16" Square
Torque (In.-Lbs.)		175
Stroke Deg.		95 +/-3
Height (In.)		10-11/16
Width (In.)		2-15/16
Depth (In.)		3-15/16
Switch Type		2 SPST
Electrical Connections		(2) Integral 3/8" Flexible Conduit Connections
Signal Type		On/Off
Ambient Temp. Range (F)		-40 to 130
Power Consumption		Driving 0.35A, 35W, Holding 0.15A, 10W
Timing (Sec.)		15
Voltage		120 AC
For Use With		Valves And Dampers
