HONEYWELL Prmium Mini Swch, 3A, SPDT, Shrt Rollr Levr

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Premium Miniature Snap Switch, V-Basic Series, Type of Actuator Short Roller Lever, Actuator Length 0.82 In., Contact Form SPDT, Current Rating 3A, Voltage Rating 277VAC, Terminal Type Quick Connect, Operating Force 10 oz., Max. Pretravel 0.056 In., Release Force 1.00 oz., Differential Travel 0.013 In., Over Travel 0.034 In., Length 1.14 In., Height 0.63 In., Depth 0.4 In., Mounting Dimension 0.41 x 0.87 In. Centers, Operating Temp. Range -40 Degrees to 185 Degrees F

Grainger Item #	24A313
Price (ea.)	$3.33
Brand	HONEYWELL
Mfr. Model #	V7-7B17D8-201
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.02
Availability	Typically in Stock
Catalog Page No.	417
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

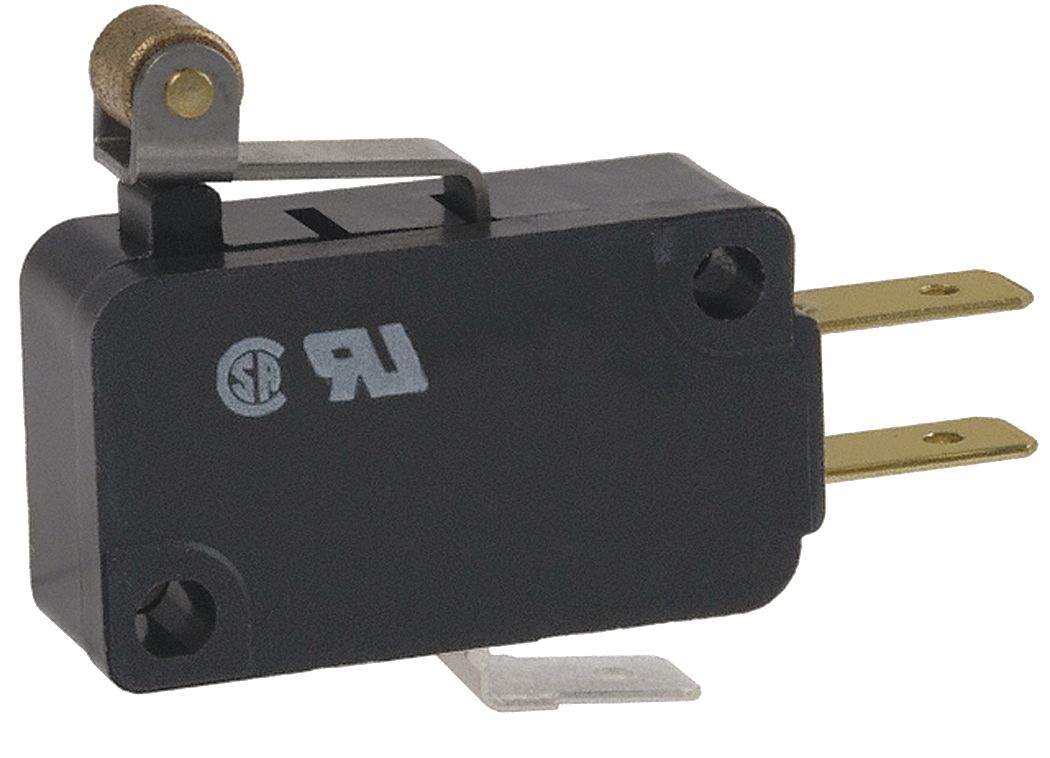

Prmium Mini Swch, 3A, SPDT, Shrt Rollr Levr

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Premium Miniature Snap Switch
Series		V-Basic
Type of Actuator		Short Roller Lever
Actuator Length		0.82"
Contact Form		SPDT
Current Rating		3A
Voltage Rating		277VAC
Terminal Type		Quick Connect
Operating Force		10 oz.
Max. Pretravel		0.056"
Release Force		1.00 oz.
Differential Travel		0.013"
Over Travel		0.034"
Length		1.14"
Height		0.63"
Depth		0.4"
Mounting Dimension		0.41 x 0.87" Centers
Operating Temp. Range		-40 Degrees to 185 Degrees F
Housing Material		PCT Polyester Thermoplastic
Standards		UL, CSA, ENEC
