Electrical
>
Switches
>
Snap Action Switches

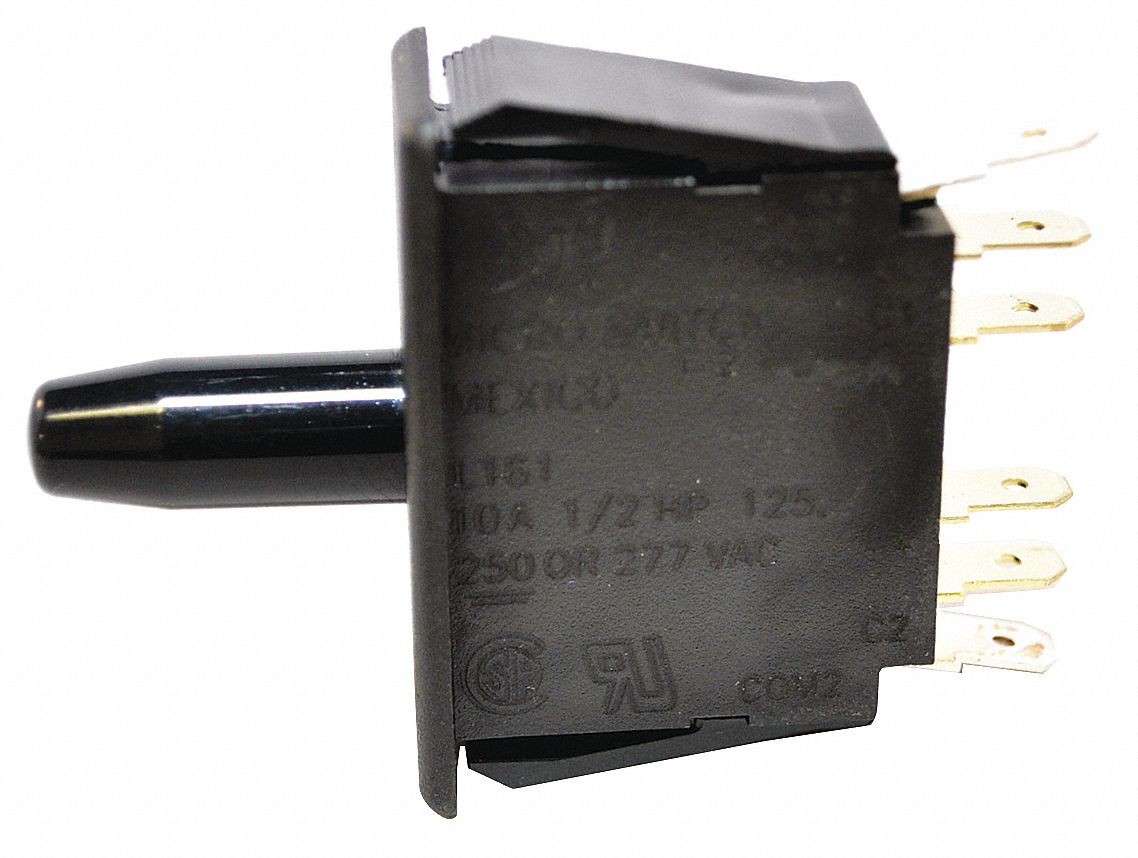

HONEYWELL Pnl Mt Switch, 10A, DPDT, Bullet Nose Plngr

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Panel Mount Precision Snap Switch, DM Series, Type of Actuator Bullet Nose PlungerContact Form DPDT, Current Rating 10A, Voltage Rating 277VAC, Terminal Type Quick Connect, Operating Force 24 oz., Max. Pretravel 0.110 In., Release Force 6.00 oz., Differential Travel 0.045 In., Over Travel 0.4 In.Height 1.12 In., Depth 0.55 In., Mounting Dimension 1.45 x 0.55 In. Panel Hole, Operating Temp. Range -35 Degrees to 180 Degrees F, Housing Material Polyester, Standards UL, CSA

Grainger Item #	24A124
Price (ea.)	$10.86
Brand	HONEYWELL
Mfr. Model #	2DM1
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.01
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Pnl Mt Switch, 10A, DPDT, Bullet Nose Plngr

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Panel Mount Precision Snap Switch
Series		DM
Type of Actuator		Bullet Nose Plunger
Contact Form		DPDT
Current Rating		10A
Voltage Rating		277VAC
Terminal Type		Quick Connect
Operating Force		24 oz.
Max. Pretravel		0.110"
Release Force		6.00 oz.
Differential Travel		0.045"
Over Travel		0.4"
Height		1.12"
Depth		0.55"
Mounting Dimension		1.45 x 0.55" Panel Hole
Operating Temp. Range		-35 Degrees to 180 Degrees F
Housing Material		Polyester
Standards		UL, CSA
