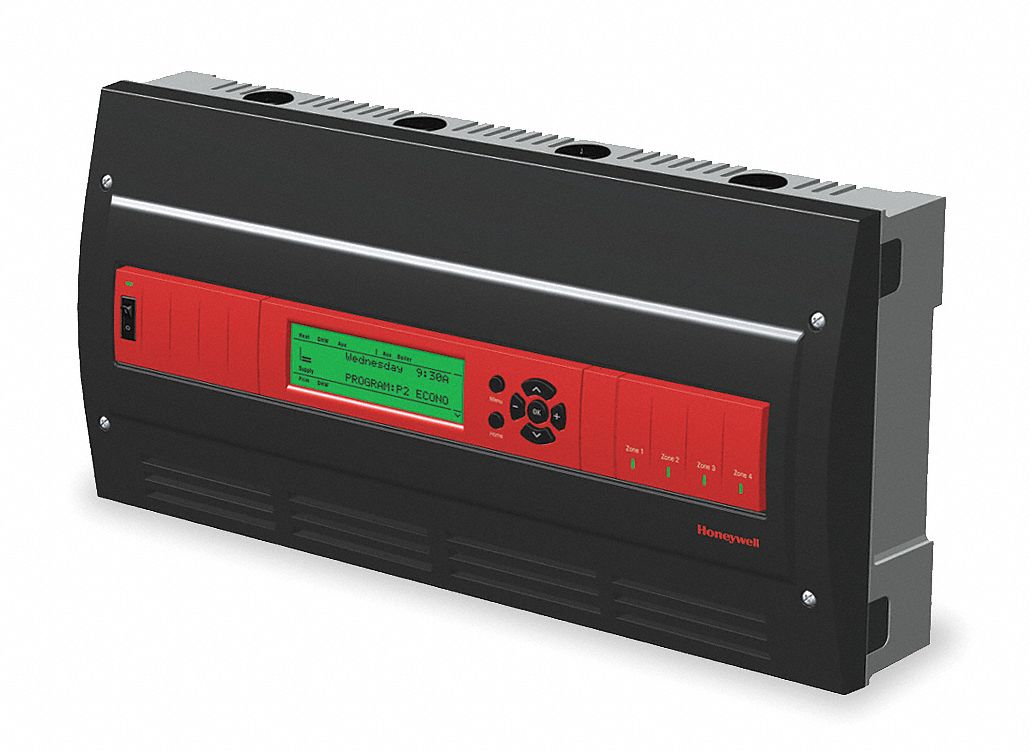

HONEYWELL Boiler Reset Control, For Main Control

Mixing Injection Expansion Panel, Additional Temperature To A Hydronic Zoning System, User Interface LCD Display And a 3 button Key Pad, Max No Zones 1, For Use With Any Main Control, Includes Triac Modulated: 120 Vac, 2.1A, 1/6 HP
  • Grainger Item #2GZH2
    Price (ea.) N/A
    BrandHONEYWELL
    Mfr. Model #AQ3541E0
    UNSPSC #41112209
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)5.2
    Availability Item no longer available
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)    		China
  •   This Item no longer available and cannot be ordered online.

    Some item(s) may be available through your local branch. An alternate item(s) may be available online. See the Alternate Products tab below.
  • Price shown may not reflect your price. Sign in or register.
ItemAdd-a-Temperature Expansion Control Panel
TypePump
User InterfaceLCD Display, 3 Button Key Pad
Max. No. Zones1
Control Range (F)120 to 225
Purge ValveTiming 0 to 2 Minutes
Sensor10K Ohm NTC Thermistor at 77 F, +/- 0.5 F
Boiler Output Voltage24 to 240V, 0.2A
Auxiliary Contact Rating24V, 12 Va
Locked Rotor Amps @ 120V44.4
Resistive Amps @ 120V10
Full Load Amps @ 120V7.4
Max. VA1200
Power Rating (VA)38
Sensor Lead10 Ft
Lead Length (Ft.)Max 500
Min. Wire Size (AWG)18
Electrical ConnectionsWire Clamp Screw Terminals, Max 2 Wire, 14 Awg Each
Sensor Range-58 Degrees F to +230 Degrees F
Height (In.)13
Length (In.)8
Width (In.)3.3
Weight (Lbs.)4.9
Agency ComplianceCSA C/Us Certified to CSA and UL Standards, File No LR76030
For Use With1TCY6
IncludesPositive Off Position
