HONEYWELL MICRO SWITCH

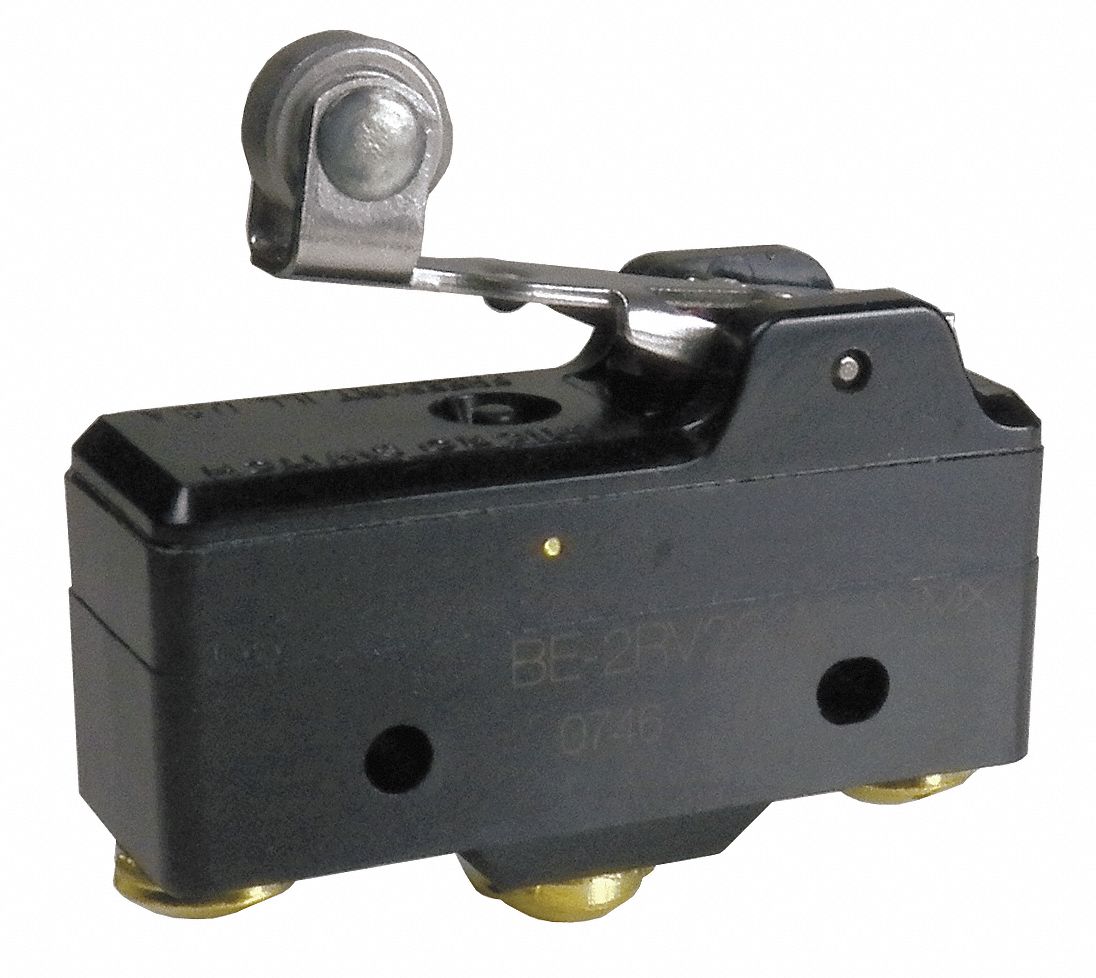

Lg Snap Switch, 20A, SPDT, Roller Lever

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Large Snap Switch, BA Series, Type of Actuator Roller Lever, Actuator Length 1.05 In., Contact Form SPDT, Current Rating 20A, Voltage Rating 125/250/480VAC, Terminal Type Screw, Operating Force 6 oz., Max. Pretravel 0.25 In., Release Force 1.50 oz., Differential Travel 0.045 In., Over Travel 0.03 In., Length 1.94 In., Height 0.95 In., Depth 0.063 In., Mounting Dimension 1 In. Centers, Operating Temp. Range -67 Degrees to 185 Degrees F, Housing Material Phenolic, Standards UL, CSA, CE, ENEC

Grainger Item #	6DXA7
Price (ea.)	$19.69
Brand	HONEYWELL MICRO SWITCH
Mfr. Model #	BA-2RV22-A2
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.05
Availability	Typically in Stock
Catalog Page No.	419
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Large Snap Switch
Series		BA
Type of Actuator		Roller Lever
Actuator Length		1.05"
Contact Form		SPDT
Current Rating		20A
Voltage Rating		125/250/480VAC
Terminal Type		Screw
Operating Force		6 oz.
Max. Pretravel		0.25"
Release Force		1.50 oz.
Differential Travel		0.045"
Over Travel		0.03"
Length		1.94"
Height		0.95"
Depth		0.063"
Mounting Dimension		1" Centers
Operating Temp. Range		-67 Degrees to 185 Degrees F
Housing Material		Phenolic
Standards		UL, CSA, CE, ENEC
