HONEYWELL MICRO SWITCH

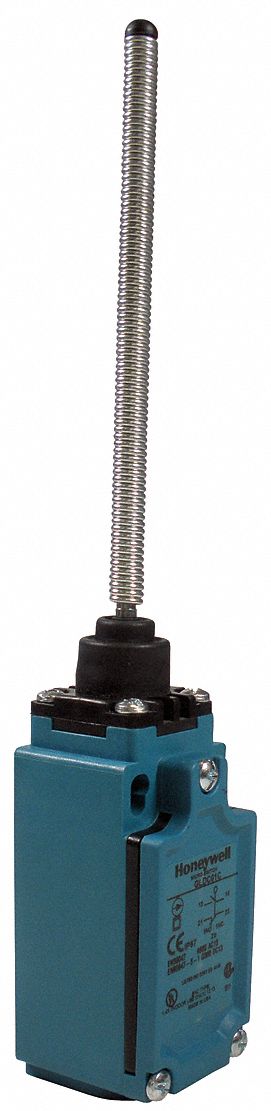

Limit Switch, Wobble, Coil Spring, SPDT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Global Limit Switch EN 50041/47, Wobble - Coil Spring Actuator, Height (In.) 2.16, Depth (In.) 1.18, Width (In.) 1.20, Contact Type SPDT, Snap Action, 1NC/1NO, Movement Pretravel (PT) 16 Degrees ; Differential Travel (DT) 10 Degrees max, Style Mechanical Actuator Operated, Voltage 600VAC and 250VDC Max., Amps 10A, NEMA Rating 1, 4X (indoor use only), 12, 13, Operating Temp. Range (F) -13 to 185, Operating Force 0.29 Lb, Actuator Length (In.) 6.50

Grainger Item #	12U940
Price (ea.)	$55.45
Brand	HONEYWELL MICRO SWITCH
Mfr. Model #	GLDA01E7B
UNSPSC #	39121509
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.3
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Global Limit Switch
Actuator Style		Wobble Stick
Contact Type		SPDT, Snap Action,1NC/1NO
Series		Honeywell GLD/GLS
Width		1.20"
Height		2.16"
Depth		1.18"
Style		Mechanical Actuator Operated
Amps		10A
Operating Force		0.29 Lb
NEMA Rating		1, 4X (indoor use only), 12, 13
Description/Special Features		Plastic EN 50047 Housing, 0.5 in - 14 NPT Conduit, shock 50 g per IEC 68-2-27c (w/o Actuator), vibration 10 g per IEC 68-2-6 (w/o Actuator), Expected Mechanical Life 5 Million Operations
Type		Wobble - Coil Spring Actuator
Movement		Pretravel (PT) 16 Degrees ; Differential Travel (DT) 10 Degrees max
Voltage		600VAC and 250VDC Max.
Operating Temp. Range		-13 Degrees to 185 Degrees F
Actuator Length		6.50"
IP Rating		66, 67
Standards		UL, CE, CSA, CCC. IEC 947-5-1, EN60947-5-1, UL508; UL746-C
