HONEYWELL MICRO SWITCH

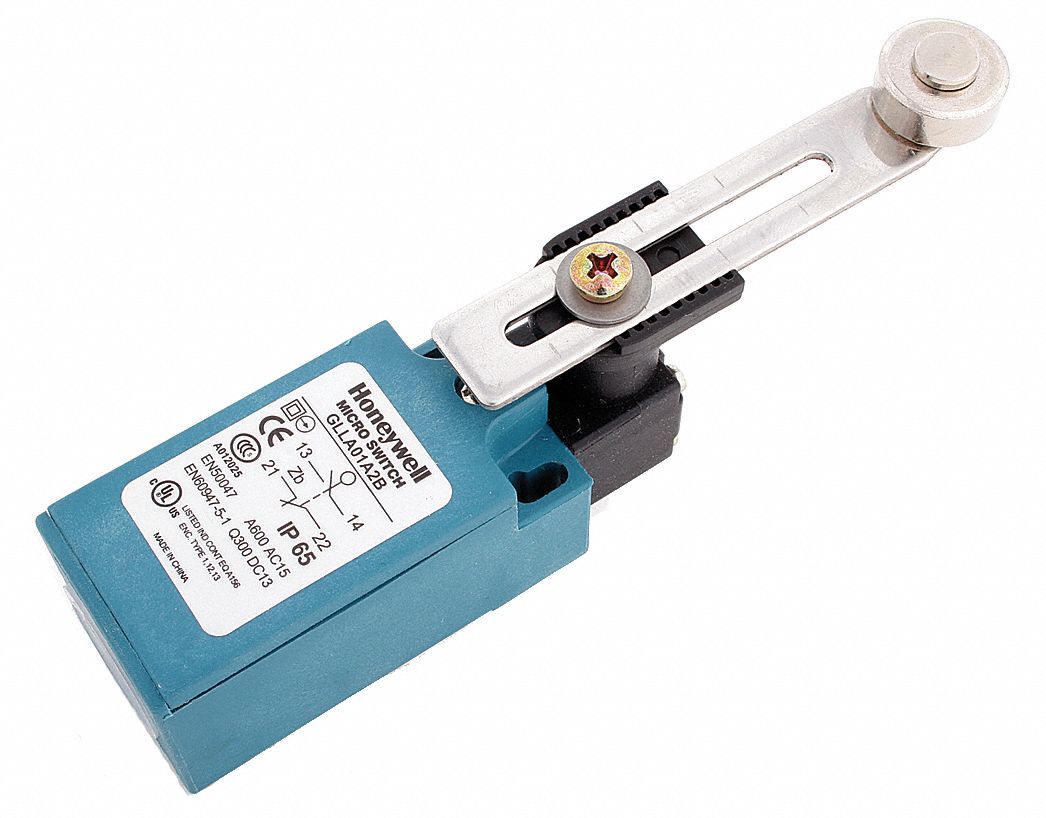

Limit Switch, SideRotary, AdjRoller, SPDT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Global Limit Switch EN 50047, Side Rotary Actuator, 20 mm - 65 mm adjustable length Lever with metal Roller (17mm dia x 7 mm wide) 0.79 in - 2.56 in ( 0.67in dia x 0.28in wide), Height (In.) 1.22, Depth (In.) 3.844, Width (In.) 1.20, Contact Type SPDT, Direct Opening snap Action, 1NC/1NO, Double Break, Silver Contacts, Movement Release Force 0.177 lb-in; Pretravel (PT) 30 Degrees max; Overtravel (OT) 40 Degrees min; Differential Travel (DT) 18 Degrees max., Style Mechanical Actuator Operated

Grainger Item #	12U917
Price (ea.)	$27.70
Brand	HONEYWELL MICRO SWITCH
Mfr. Model #	GLLA01A2B
UNSPSC #	39121509
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.22
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Limit Switch, SideRotary, AdjRoller, SPDT

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Global Limit Switch
Actuator Style		Rotary Lever Arms
Contact Type		SPDT, Direct Opening snap Action, 1NC/1NO, Double Break, Silver Contacts
Series		Honeywell GLL/GLS
Width		1.20"
Height		1.22"
Depth		3.844"
Style		Mechanical Actuator Operated
Amps		10A
Operating Force		1.062 Lb-In.
NEMA Rating		1, 12, 13
Description/Special Features		Plastic EN 50047 Housing, 0.5 conduit, shock 50 g per IEC 68-2-27c (w/o Actuator), vibration 10 g per IEC 68-2-6 (w/o Actuator), Expected Mechanical Life 5 Million Operations
Type		Side Rotary Actuator, 20 mm - 65 mm adjustable length Lever with metal Roller (17mm dia x 7 mm wide) 0.79 in - 2.56 in ( 0.67in dia x 0.28in wide)
Movement		Release Force 0.177 lb-in; Pretravel (PT) 30 Degrees max; Overtravel (OT) 40 Degrees min; Differential Travel (DT) 18 Degrees max.
Voltage		300VAC/250VDC Max.
Operating Temp. Range		14 Degrees to 176 Degrees F
Actuator Length		0.79" to 2.56"
IP Rating		65
Standards		cULus, CE, CCC
