Electrical
>
Switches
>
Limit/Interlock Switches

HONEYWELL MICRO SWITCH

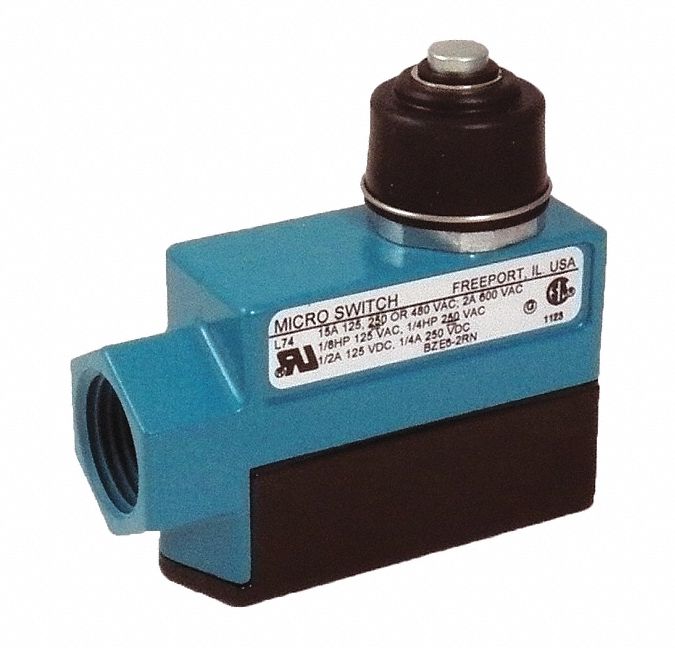

Switch, Sealed, Top Plunger, Side, SPDT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Enclosed Snap Action Switch, Side Mount, Top Pin Plunger Actuator, With Seal Boot, Height (In.) 2.50, Depth (In.) 3.04, Width (In.) 1.00, Contact Type Momentary, SPDT, 1NC/1NO, Silver Contacts, Movement Pretravel (PT) 0.078 in max: Overtravel (OT) 0.219 in min; Differential Travel (DT) 0.002 in. Release Force 0.25 lb. min, Style Mechanical Actuator Operated, Voltage 125VAC, 250VAC, 480VAC/600VAC/125VDC/250VDC, Amps 15A Ind./2A Ind./0.5A Res./0.25A Res, NEMA Rating 1, 3, 4

Grainger Item #	12U161
Price (ea.)	$73.45
Brand	HONEYWELL MICRO SWITCH
Mfr. Model #	BZE6-2RN
UNSPSC #	39121509
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.65
Availability	Typically in Stock
Catalog Page No.	412
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Enclosed Limit Switch
Actuator Style		Plunger
Contact Type		Momentary, SPDT, 1NC/1NO, Silver Contacts
Series		Honeywell BZ
Width		1.00"
Height		2.50"
Depth		3.04"
Style		Mechanical Actuator Operated
Amps		15A Ind./2A Ind./0.5A Res./0.25A Res
Operating Force		9 Oz. to 24 Oz.
NEMA Rating		1, 3, 4
Description/Special Features		Zinc Die-Cast Housing, 0.5 In - 14NPT Conduit
Type		Top Pin Plunger Actuator, With Seal Boot
Movement		Pretravel (PT) 0.078 in max: Overtravel (OT) 0.219 in min; Differential Travel (DT) 0.002 in. Release Force 0.25 lb. min
Voltage		125VAC, 250VAC, 480VAC/600VAC/125VDC/250VDC
Operating Temp. Range		-25 Degrees to 160 Degrees F
Actuator Length		0.97"
IP Rating		66
Standards		UL, CSA
Footnotes		Installed With #6 Screws
