HONEYWELL Low V Thermostat, H Only, Hg Free, Vertical

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Low Voltage T-Stat, Manual Non Programmable, For Use With Gas, Oil, Forced Warm Air, Hot Water, Steam or Gravity, Terminal Designations R, W, Control Range 50-90 F, Stages 1 Heat, Power Method Hardwired, Color White, Height 4 3/4 In, Width 2 7/8 In, Depth 1 3/8 In, Volts 20-30 AC, Display Type Analog, Vertical Mounting, Includes Sub Base

Grainger Item #	1JUB2
Price (ea.)	$51.00
Brand	HONEYWELL
Mfr. Model #	T822K1018
UNSPSC #	41112209
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.31
Availability	Typically in Stock
Catalog Page No.	4568
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

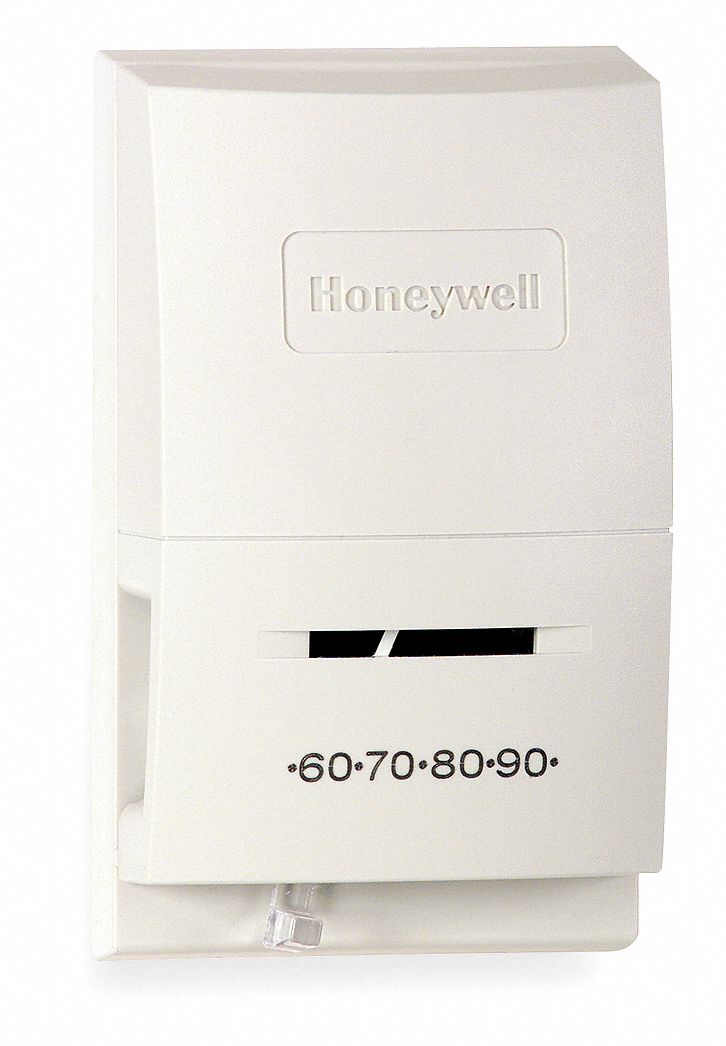

Low V Thermostat, H Only, Hg Free, Vertical

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Low Voltage Thermostat
Type		Mechanical Nonprogrammable Conventional Systems
Stages Heat		1
Temp. Settings per Day		1
Terminal Designations		R,W
System Switching		None
Fan Switching		None
Display		Analog
Key Pad Lockout		No
Programmable Fan		No
Automatic Changeover		No
Humidification Control		No
Dehumidification Control		No
Remote Sensing Capability		No
Temporary Program Override		No
Temporary Temperature Hold		No
Filter Indicator		No
Temperature Limiting		No
Battery Backup		No
Low Battery Indicator		No
Batteries Included		No
Dual Transformer Compatible		No
Power Method		Hardwired
Voltage (AC)		20 to 30
750mV Compatible		No
Mounting		Vertical
Height (In.)		4-3/4
Width (In.)		2-7/8
Depth (In.)		1-3/8
Color		White
Control Range (F)		50 to 90
Characteristics		Mercury Free, Integrated thermometer
For Use With		Gas, Oil, Forced Warm Air, Hot Water, Steam or Gravity
Includes		Range Stops, Consisting of a Range Stop Plate, Two Range Stop Adjustment Screws (#2-56 X 7/32 Phillips Pan Head Screws), and an Upper Range Stop Screw (#4-40 X 5/16 Phillips Pan Head Screw)
