HONEYWELL Lg Basic Swch, 15A, 2-Circuit, Pin Plngr

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Large Basic Snap Switch, MN Series, Type of Actuator Pin PlungerContact Form 2-Circuit/Dbl. Break, Current Rating 15A, Voltage Rating 600VAC, Terminal Type Screw, Operating Force 12.0 to 20.0 oz., Max. Pretravel 0.06 In., Release Force 6.00 oz., Differential Travel 0.015 to 0.025 In., Over Travel 0.08 In., Length 2.0 In., Height 1.0 In., Depth 0.7 In., Mounting Dimension 2.13 In. Centers, Operating Temp. Range -67 Degrees to 185 Degrees F, Housing Material General Purpose Phenolic

Grainger Item #	24A144
Price (ea.)	$34.85
Brand	HONEYWELL
Mfr. Model #	3MN1
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.0050
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

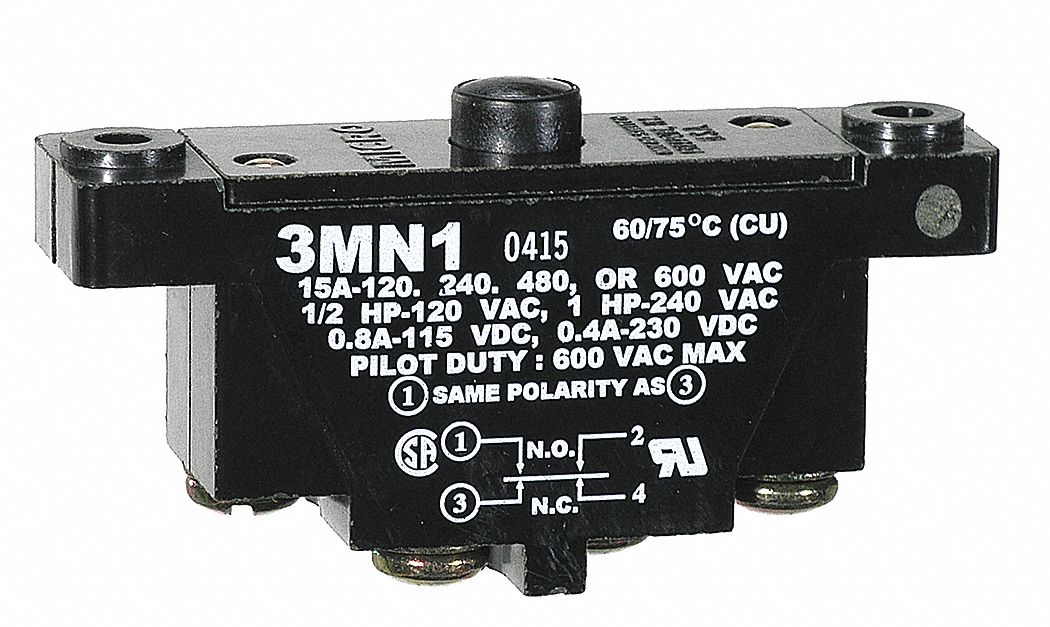

Lg Basic Swch, 15A, 2-Circuit, Pin Plngr

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Large Basic Snap Switch
Series		MN
Type of Actuator		Pin Plunger
Contact Form		2-Circuit/Dbl. Break
Current Rating		15A
Voltage Rating		600VAC
Terminal Type		Screw
Operating Force		12.0 to 20.0 oz.
Max. Pretravel		0.06"
Release Force		6.00 oz.
Differential Travel		0.015 to 0.025"
Over Travel		0.08"
Length		2.0"
Height		1.0"
Depth		0.7"
Mounting Dimension		2.13" Centers
Operating Temp. Range		-67 Degrees to 185 Degrees F
Housing Material		General Purpose Phenolic
