HONEYWELL Lg Basic Snap Swch, 15A, SPDT, Pnl Mt Plngr

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Large Basic Snap Switch, BZ Series, Type of Actuator Panel Mount PlungerContact Form SPDT, Current Rating 15A, Voltage Rating 250VAC, Terminal Type Screw, Operating Force 9.0 to 13.0 oz., Max. Pretravel 0.015 In., Release Force 4.00 oz., Differential Travel 0.0004 to 0.0020 In., Over Travel 0.219 In., Length 2.0 In., Height 1.0 In., Depth 0.7 In., Mounting Dimension 1 In. Centers, Operating Temp. Range -67 Degrees to 185 Degrees F, Housing Material General Purpose Phenolic

Grainger Item #	24A059
Price (ea.)	$25.75
Brand	HONEYWELL
Mfr. Model #	BZ-2RQ77
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.15
Availability	Typically in Stock
Catalog Page No.	419
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

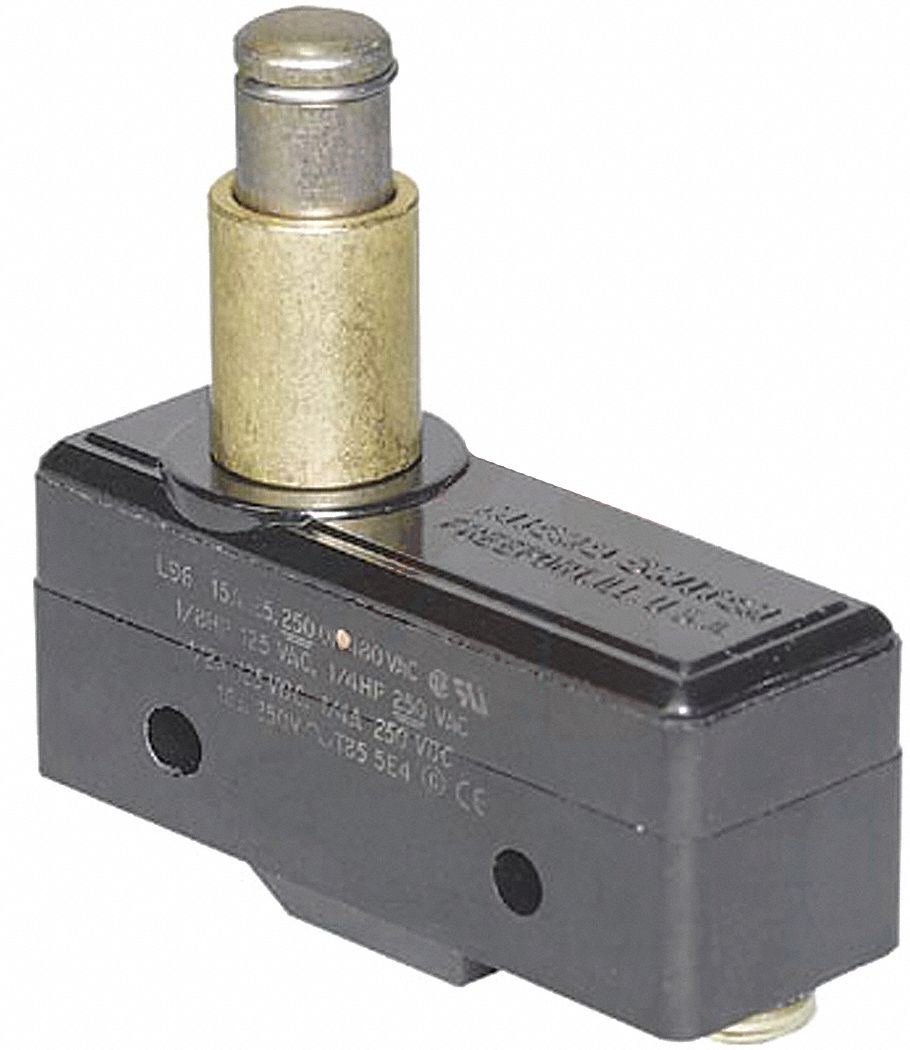

Lg Basic Snap Swch, 15A, SPDT, Pnl Mt Plngr

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Large Basic Snap Switch
Series		BZ
Type of Actuator		Panel Mount Plunger
Contact Form		SPDT
Current Rating		15A
Voltage Rating		250VAC
Terminal Type		Screw
Operating Force		9.0 to 13.0 oz.
Max. Pretravel		0.015"
Release Force		4.00 oz.
Differential Travel		0.0004 to 0.0020"
Over Travel		0.219"
Length		2.0"
Height		1.0"
Depth		0.7"
Mounting Dimension		1" Centers
Operating Temp. Range		-67 Degrees to 185 Degrees F
Housing Material		General Purpose Phenolic
Standards		UL, CSA, CE, DEMKO
