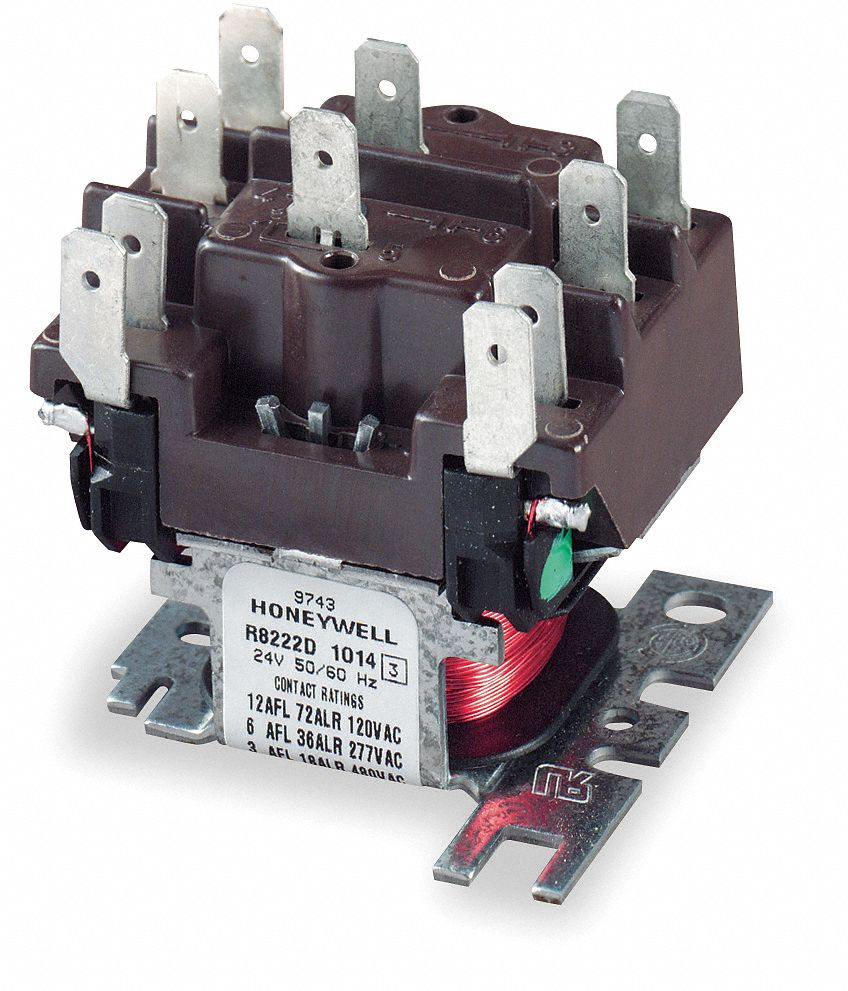

HONEYWELL Relay, Switching, 24 Vac

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Switching Relay, Coil Voltage 24 VAC, Switch Action DPDT, Height 1 7/8 Inches, Depth 2 3/8 Inches, Width 2 5/32 Inches

Grainger Item #	2E682
Price (ea.)	$24.77
Brand	HONEYWELL
Mfr. Model #	R8222D1014
UNSPSC #	39121515
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.45
Availability	Typically in Stock
Catalog Page No.	4575
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Magnetic Relay
Type		AC Switching
Coil Volts		24
Switch Type		DPDT
HP		3/4
Resistive Amps @ 120V		20.8
Full Load Amps @ 120V		12
Locked Rotor Amps @ 120V		60
Resistive Amps @ 208VAC		20.8
Full Load Amps @ 208V		8
Locked Rotor Amps @ 208V		35
Resistive Amps @ 240V		20.8
Full Load Amps @ 240VAC		6
Locked Rotor Amps @ 240V		35
Resistive Amps @ 277V		20.8
Full Load Amps @ 277V		6
Locked Rotor Amps @ 277VAC		35
Resistive Amps @ 480V		10
Full Load Amps @ 480V		3
Locked Rotor Amps @ 480V		18
Height (In.)		1-7/8
Width (In.)		2-5/32
Depth (In.)		2-3/8
Mounting		Universal
Application		Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control
Agency Compliance		UL
Includes		Double Quick Connect Coil Terminals
