HVAC and Refrigeration
>
HVAC Controls
>
Aquastat Relays

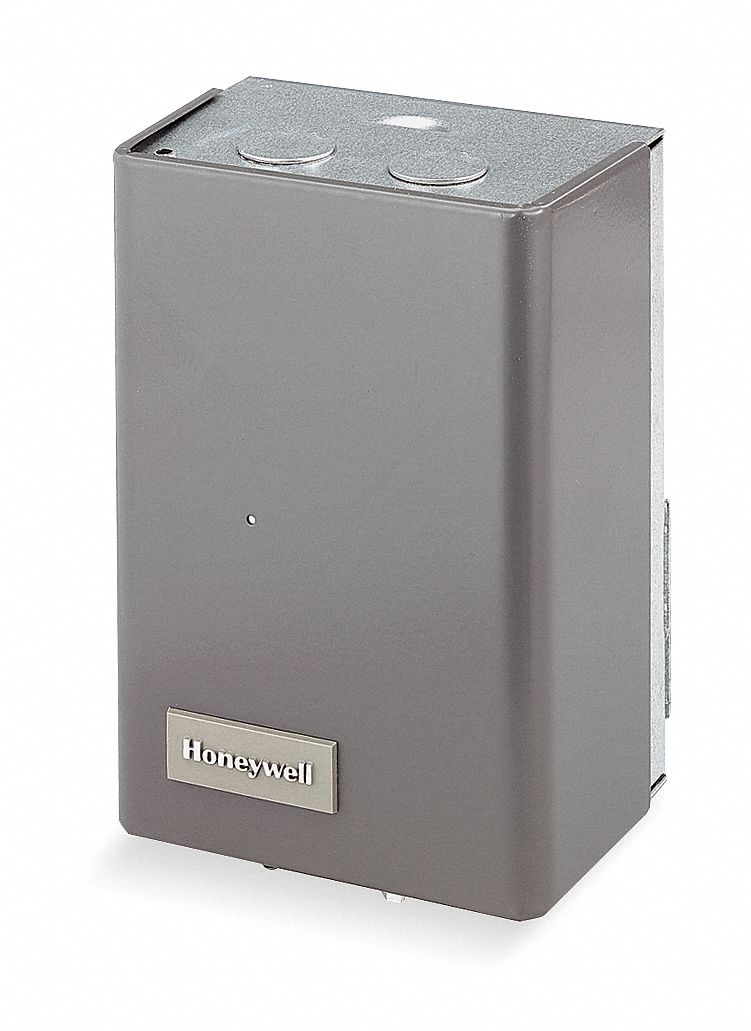

HONEYWELL Relay, Aquastat

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Aquastat Relay, Range/Differential 140-240 Degrees High Limit/8 Degrees, Mounting Horizontal/Vertical, Burner Control Circuit @ 24 VAC 0.8 Amp, Full Load Current @ 120 VAC 7.4 Amps, Full Load Current @ 240 VAC 3.7 Amps, Locked Rotor Current @ 120 VAC 44.4 Amps, Locked Rotor Current @ 240 VAC 22.2 Amps, Height 4 5/16 Inches, Depth 3 1/8 Inches, Width 6 1/8 Inches, 0.25 Amp

Grainger Item #	2E861
Price (ea.)	$252.75
Brand	HONEYWELL
Mfr. Model #	L8148J1009
UNSPSC #	39121515
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.25
Availability	Typically in Stock
Catalog Page No.	4595
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Immersion Controller, Multizone
Type		High Limit and Relay Control of Burner and Circulation Control
Height (In.)		4-5/16
Depth (In.)		3-1/8
Width (In.)		6-1/8
Temp. Range		High Limit 120 Degrees to 240 Degrees F
Differential		8 Degrees F Fixed
Full Load Amps @ 120V		7.4
Full Load Amps @ 240VAC		3.7
Locked Rotor Amps @ 120V		44.4
Locked Rotor Amps @ 240V		22.7
Burner Control Circuit		24V or mV
Mounting		Horizontal or Vertical
Application		Aquastat Relay
Burner Control Circuit @ 24V (A)		0.8
Requires		High Limit Protection with Switching Relay Control of Burner and Circulator Motors
Includes		Tradeline
System Switching		SPST
Insulation Depth (In.)		1 1/2 to 3 less well
Humidity Range (% RH)		Non-Condensing 0 To 95
Agency Compliance		UL

Other Popular Terms for this Product

• Hot Water Controls (265)

• Water Heater Controls (72)

• Aquastat Controls (40)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

Immersion Well, Copper, 3/4NPT, 1-1/2 Depth

Brand:

HONEYWELL

Grainger Item #:

3XK90

Price (ea.):

$44.05

Item #	Description	Brand Mfr. Model #	Availability	Price
3XK90	Immersion Well, Copper, 3/4NPT, 1-1/2 Depth >More Details... Country of Origin: USA	HONEYWELL 121371B	Typically in Stock	$44.05
Be the First to Write a Review



4E847	Thermal Mastic, 7.5 Oz >More Details... Country of Origin: USA	VIRGINIA KMP PM8	Typically in Stock	$50.25
Be the First to Write a Review
