HVAC and Refrigeration
>
HVAC Controls
>
Damper and Valve Replacement Motors

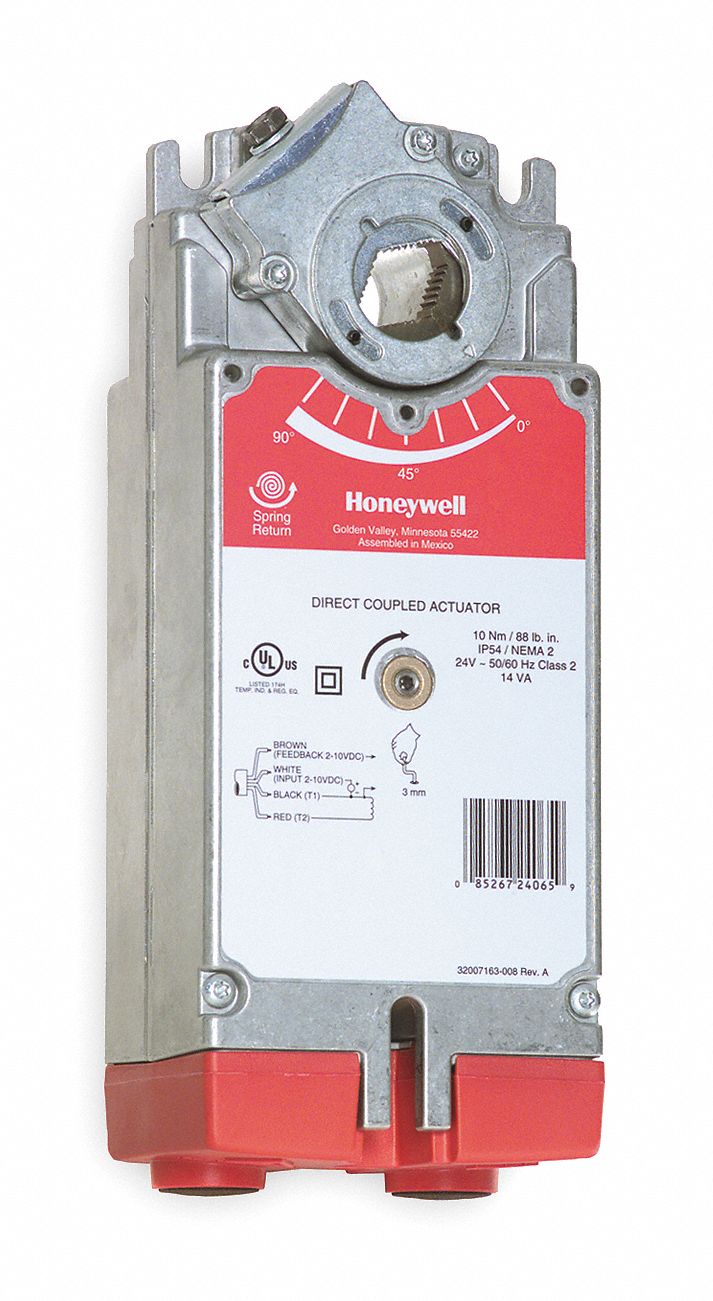

HONEYWELL Actuator, 16VA, Mounting Bracket

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Actuator, Spring Return 2 Position, Shaft Type Self-Centering Clamping, Torque 175 In-Lbs, 95 +/- 3 Stroke Deg, Height 9 3/4 In, Width 3 15/16 In, Depth 2 15/16 In, Electrical Connections Enclosed Screw Terminal Strip, Signal Type (0) 2-10 VDC Floating, 145K Ohm Input Impedance, Ambient Temp. Range -40 to 140 F, Power Consumption 16VA, Timing 90 Sec, Voltage 24 VAC +/- 20%, 24 VDC, For Use With Valves And Dampers, Includes 50Hz, 60Hz Frequency

Grainger Item #	2HFE3
Price (ea.)	$376.75
Brand	HONEYWELL
Mfr. Model #	MS7520A2007
UNSPSC #	31251501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.21
Availability	Typically in Stock
Catalog Page No.	4590
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Actuator
Type		Spring-Return
Shaft Type		Self-Centering Clamping
Torque (In.-Lbs.)		175
Stroke Deg.		95 +/-3
Height (In.)		9-3/4
Width (In.)		3-15/16
Depth (In.)		2-15/16
Electrical Connections		Enclosed Screw Terminal Strip
Signal Type		On/Off
Ambient Temp. Range (F)		-40 to 140
Power Consumption		16 VA
Timing (Sec.)		90
Voltage		24 AC
Power Rating (VA)		50/60Hz
For Use With		Valves And Dampers
