Pumps
>
Engine Driven Pumps
>
Portable Engine Driven Pumps

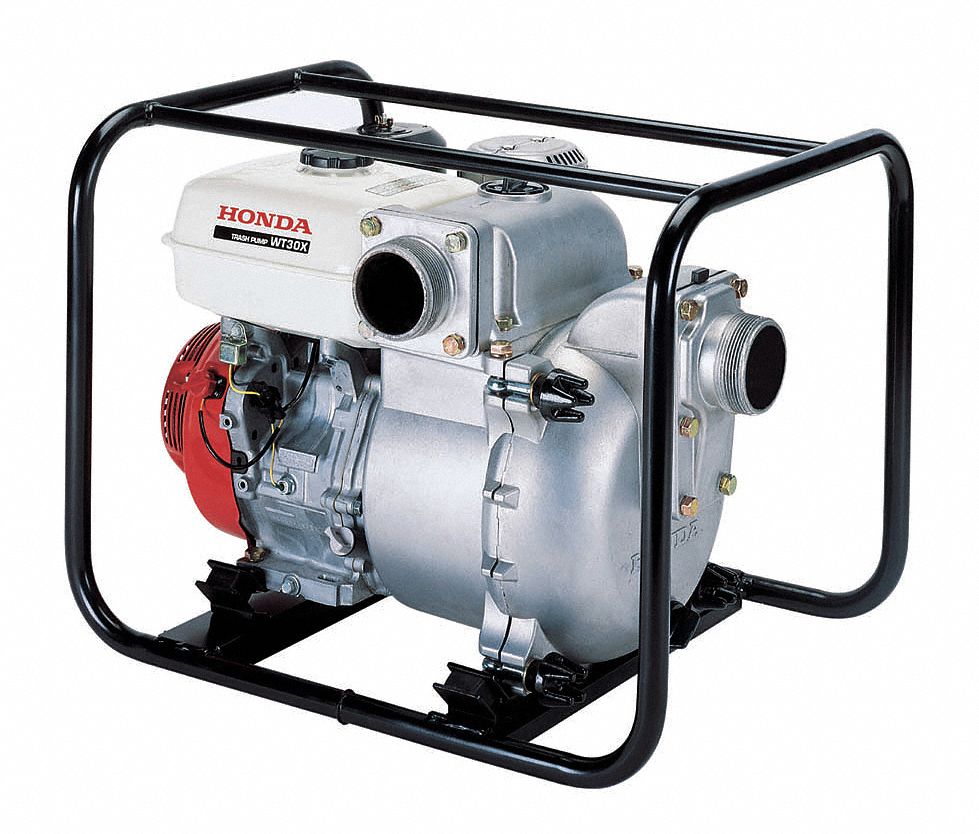

HONDA Engine Driven Trash Pump, 242 cc

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Engine Driven Trash Pump, Engine Size 242 cc, Engine Brand Honda, Engine/Motor Type Gas, Tank Capacity (Qt.) 5.6, NPT Port (In.) 3, Material of Construction Aluminum, Impeller Cast Iron, Impeller Type Trash, Solids Handling Capacity (In.) 1-1/16, Max. Pressure (PSI) 39, Engine RPM 4000, Max. Flow 319, Max. Head (Ft.) 89, Max. Suction Lift (Ft.) 26, Roll Bar Frame Steel, Temp. Range (F) 0 to 130, Self-Priming Yes

Grainger Item #	6DLY5
Price (ea.)	$2,206.00
Brand	HONDA
Mfr. Model #	WT30XK4A
UNSPSC #	40151517
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	150.0
Availability	Typically in Stock
Catalog Page No.	4061
Country of Origin (Country of Origin is subject to change.)	Thailand

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Engine Driven Trash Pump
Type		Trash Pump
Connection		MNPT
Engine Size		242 cc
Engine Brand		Honda
Engine/Motor Type		Gas
Tank Capacity (Qt.)		5.6
NPT Port (In.)		3
Length (In.)		26
Width (In.)		19-1/2
Height (In.)		20
Material of Construction		Aluminum
Impeller		Cast Iron
Impeller Type		Trash
Seal Material		Silicon Carbide
Solids Handling Capacity (In.)		1-1/16
Max. Pressure (PSI)		39
Engine RPM		4000
GPM of Water @ 10 Ft. of Head		310
GPM of Water @ 20 Ft. of Head		296
GPM of Water @ 30 Ft. of Head		267
GPM of Water @ 40 Ft. of Head		238
GPM of Water @ 50 Ft. of Head		201
GPM of Water @ 60 Ft. of Head		158
GPM of Water @ 70 Ft. of Head		109
GPM of Water @ 80 Ft. of Head		55
Max. Flow		319
Max. Head (Ft.)		89
Max. Suction Lift (Ft.)		26
Volute/Wear Plate		Cast Iron with Stainless Steel Wear Plate
Mechanical Seal		Silicon Carbide
Check Valve		Buna N
Roll Bar Frame		Steel
Number of Impellers		1
Temp. Range (F)		0 to 130
Ignition Type		Electronic
Fuel Type		Gas
Sensor Type		Low Oil
Self-Priming		Yes
