Pumps
>
Engine Driven Pumps
>
Portable Engine Driven Pumps

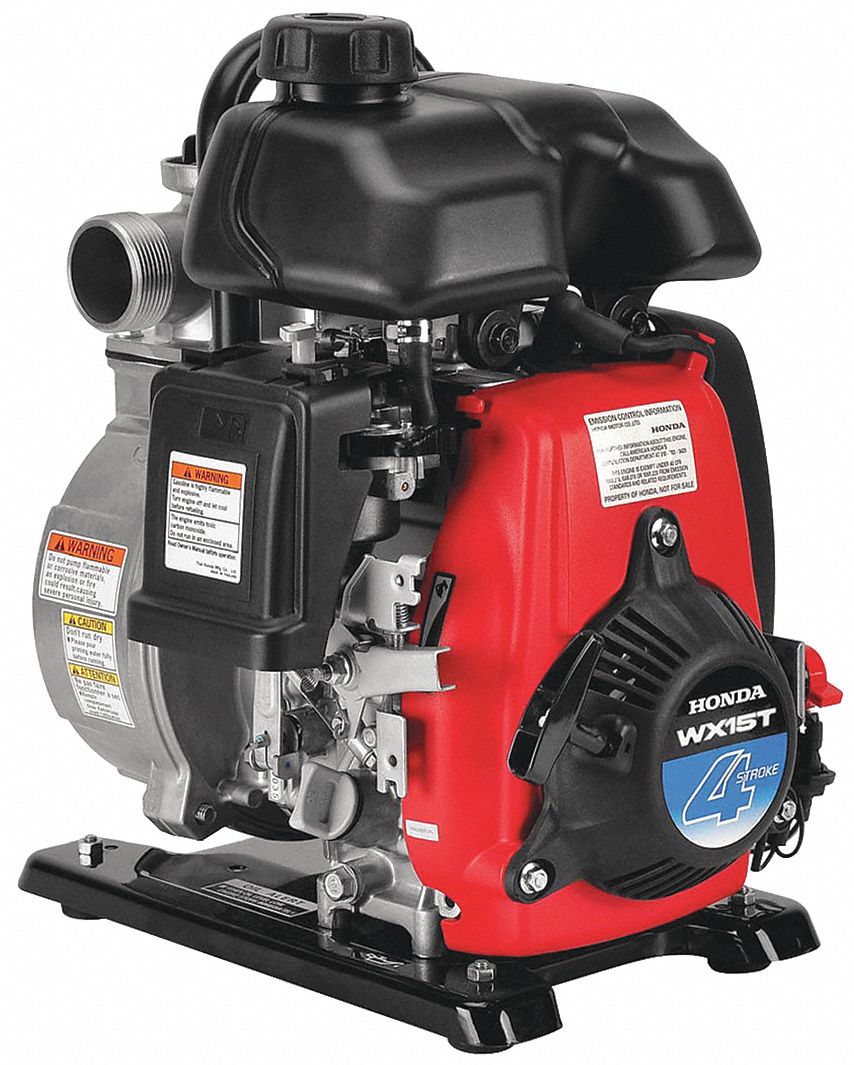

HONDA Engine Driven Pump, 49 cc

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Engine Driven Centrifugal Pump, Engine Size 49 cc, Engine Brand Honda, Engine/Motor Type Gas, Tank Capacity (Qt.) 0.8, NPT Port (In.) 1-1/2, Material of Construction Aluminum, Impeller Aluminum, Impeller Type Open, Max. Pressure (PSI) 54, Engine RPM 7800, Max. Flow 72, Max. Head (Ft.) 125, Max. Suction Lift (Ft.) 26, Roll Bar Frame None, Temp. Range (F) 0 to 130, Self-Priming

Grainger Item #	6DLY7
Price (ea.)	$720.00
Brand	HONDA
Mfr. Model #	WX15AX2
UNSPSC #	40151517
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	24.21
Availability	Typically in Stock
Catalog Page No.	4061
Country of Origin (Country of Origin is subject to change.)	Japan

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Engine Driven Centrifugal Pump
Type		General Purpose
Connection		MNPT
Engine Size		49 cc
Engine Brand		Honda
Engine/Motor Type		Gas
Tank Capacity (Qt.)		0.8
NPT Port (In.)		1-1/2
Length (In.)		13
Width (In.)		11
Height (In.)		15
Material of Construction		Aluminum
Impeller		Aluminum
Impeller Type		Open
Seal Material		Carbon/Ceramic
Max. Pressure (PSI)		54
Engine RPM		7800
GPM of Water @ 10 Ft. of Head		72
GPM of Water @ 20 Ft. of Head		70
GPM of Water @ 30 Ft. of Head		67
GPM of Water @ 40 Ft. of Head		63
GPM of Water @ 50 Ft. of Head		59
GPM of Water @ 60 Ft. of Head		54
GPM of Water @ 70 Ft. of Head		47
GPM of Water @ 80 Ft. of Head		41
GPM of Water @ 90 Ft. of Head		34
GPM of Water @ 100 Ft. of Head		26
Max. Flow		72
Max. Head (Ft.)		125
Max. Suction Lift (Ft.)		26
Volute/Wear Plate		Aluminum
Mechanical Seal		Carbon/Ceramic
Check Valve		Buna N
Roll Bar Frame		None
Number of Impellers		1
Temp. Range (F)		0 to 130
Ignition Type		Electronic
Fuel Type		Gas
Sensor Type		Low Oil
Self-Priming		Yes
