HOFFMAN SPECIALTY Steam Trap, Max OperatIng PSI 25, 3/4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Steam Trap, Thermostatic, Max. Operating PSI 25, Body Material Brass, Downstream PSI Range 0 to 25, (F)NPT Connections (In.) 3/4, NPT Inlet (In.) 3/4, NPT Outlet 3/4, NPT Port (In.) 3/4, Pipe Configuration Angle, Pressure Air Vent Self-Adjusts To All Operating Pressures, Application Drains Heat Exchangers And Other Equipment After Condensate Has Sub cooled To Maximize Heat Transfer From The Steam

Grainger Item #	2CMG8
Price (ea.)	$136.00
Brand	HOFFMAN SPECIALTY
Mfr. Model #	17C-A-3-25
UNSPSC #	40142503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.7
Availability	Typically in Stock
Catalog Page No.	4593
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

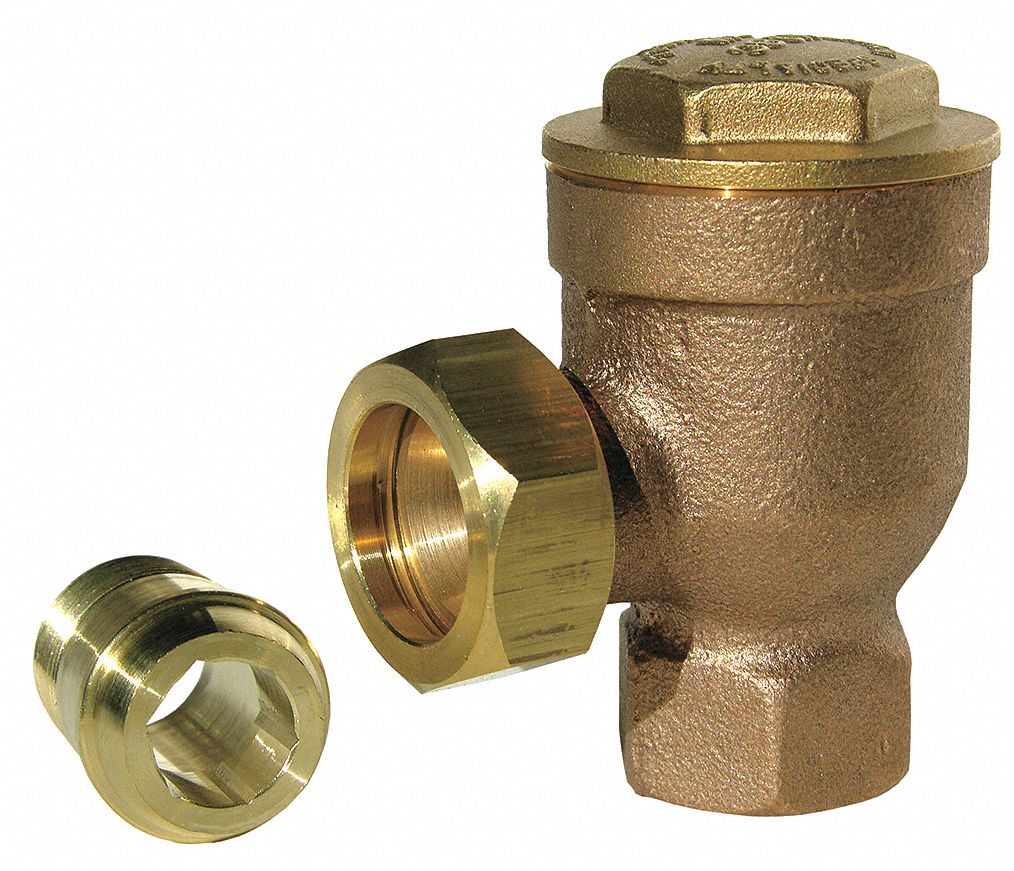

Steam Trap, Max OperatIng PSI 25, 3/4 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Steam Trap
Type		Thermostatic
Max. Operating PSI		25
Body Material		Brass
Downstream PSI Range		0 to 25
(F)NPT Connections (In.)		1
NPT Inlet (In.)		3/4
NPT Outlet		3/4"
NPT Port (In.)		3/4
Pipe Configuration		Angle
Pressure Air Vent		Self-Adjusts To All Operating Pressures
Application		Drains Heat Exchangers And Other Equipment After Condensate Has Sub cooled To Maximize Heat Transfer From The Steam
