Pumps
>
Condensate Pumps
>
Condensate Return System

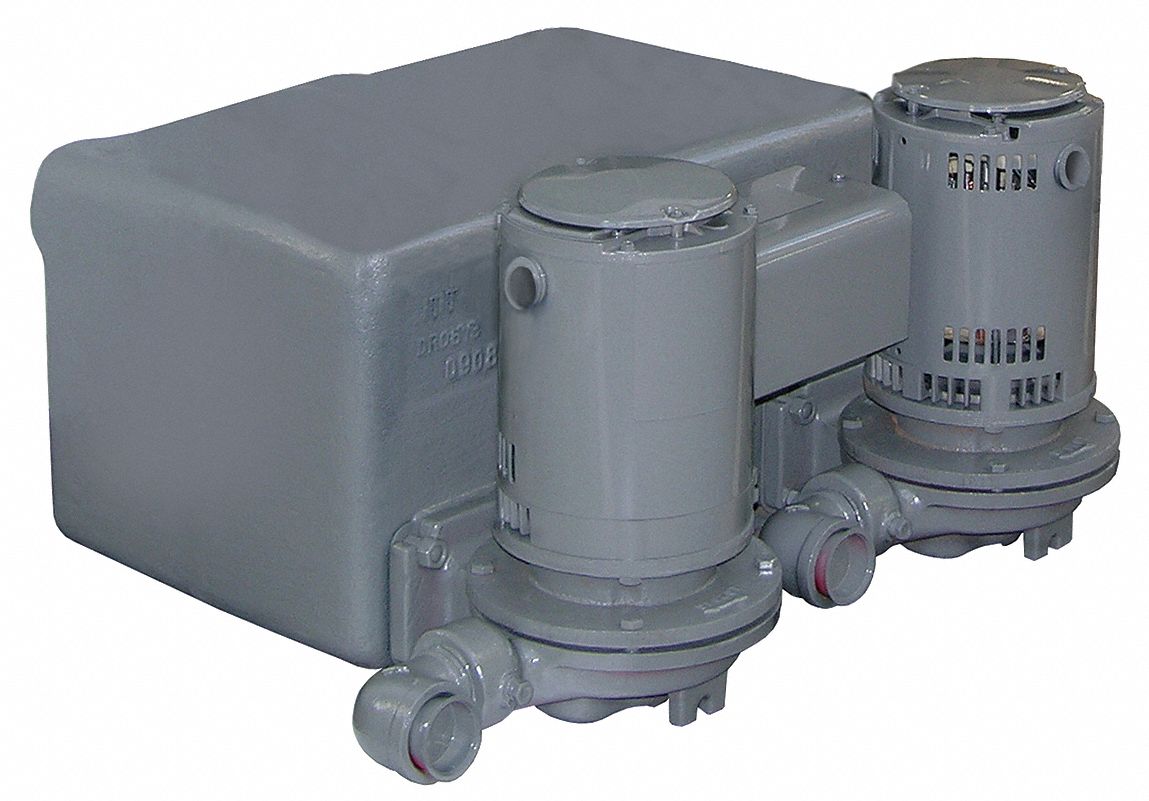

HOFFMAN Condensate Return Unit, 36 Gal, 45 GPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Condensate Return Unit, Duplex, Tank Material Cast Iron, Receiver Size 36 Gal., Number of Pumps 2, EDR Rating 45000, Length 34 1/2 In., Width 33 1/2 In., Height 35 3/4 In., Discharge Pressure 30 PSI, Pump Flow 45 GPM, Max. Head 72 Ft., Mechanical Alternator, Contactors, Thermal Overload Relay, Transformer, Liquid Tight Conduit

Grainger Item #	5DPZ4
Price (ea.)	$10,784.00
Brand	HOFFMAN
Mfr. Model #	SCC4A
UNSPSC #	40151510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	550.0
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $1,999.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Condensate Return Unit
Type		Duplex
Tank Material		Cast Iron
Receiver Size (Gal.)		36
Number of Pumps		2
EDR Rating		45000
Length (In.)		34-1/2
Width (In.)		33-1/2
Height (In.)		35-3/4
Discharge Pressure (PSI)		30
Pump Flow (GPM)		45
Max. Head (Ft.)		72
Motor Type		Open Drip Proof
Hz		60
Seal Type		John Crane
Shaft Material		Stainless Steel
RPM		3500
Switch Type		Normally Open
Volute Material		Cast Iron
Impeller Material		Bronze
Pump Material		Cast Iron
HP		1-1/2
Voltage		208-230/460
Full Load Amps @ 115/230V		6/5.2/2.6
Bearings		Permanently Lubricated Ball
Mounting		4 Bolt Flange
NPT Drain Port (In.)		1
NPT Low Return Inlet (In.)		3
NPT Overflow Port (In.)		2
NPT Pump Discharge (In.)		1-1/2
NPT Vent Line Port (In.)		2
Application		Condensate Transfer for Residential, Commercial and Industrial Steam Heating and Industrial Recessing, Dry Cleaning Plants, Chemical Refineries, Wood Pulp Processing, Textile Mills and Manufacturing Facilities
Features		Mechanical Alternator, Contactors, Thermal Overload Relay, Transformer, Liquid Tight Conduit

Other Popular Terms for this Product

• Water System Pumps (260)

• Condensate Return Pumps (57)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

View Printable Page

Return To Top

Optional Accessories

More Accessories

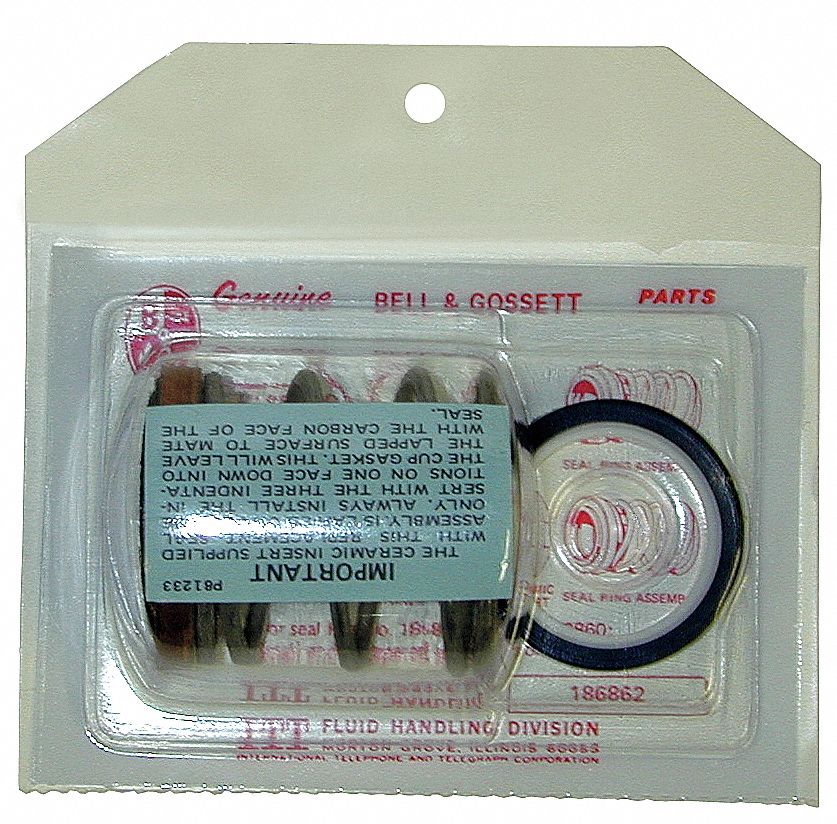

Seal Kit
