Pumps
>
Pump Controls
>
Flowmeters

5-38

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Flowmeter, Variable Area, Max. Pressure 3500 PSI, Connection Size (In.) 3/4 FNPT, Max. Temp. 240 F, Housing Material Brass, Chamber Material Brass, Seal Material Viton, Accuracy +/-2% Full Scale %, Flow Material Water and Other Liquids, Flow Range @ GPM/LPM 1 to 10 / 5 to 38, Pressure Drop - 100% Flow 9 PSI, Pressure Drop - 50% Flow 3.5 PSI, Specific Gravity 1

Grainger Item #	4NNA4
Price (ea.)	$513.00
Brand	HEDLAND
Mfr. Model #	H705B-010
UNSPSC #	41112501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.05
Availability	Typically in Stock
Catalog Page No.	4116
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Flowmeter
Type		Variable Area
Max. Pressure (PSI)		3500
Connection Size (In.)		3/4 FNPT
Max. Temp. (F)		240
Length (In.)		7-3/16
Width (In.)		2-1/2
Height (In.)		2-7/8
Housing Material		Brass
Fitting		Brass
Chamber Material		Brass
Seal Material		Viton
Flow Range		1 to 10 gpm
Accuracy (%)		+/-2% Full Scale
Flow Material		Water and Other Liquids
Flow Range @ GPM/LPM		1 to 10 / 5 to 38
Pressure Drop - 100% Flow (PSI)		9.00
Pressure Drop - 50% Flow (PSI)		3.50
Specific Gravity		1.000

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Pumps > Pump Controls > Flowmeters

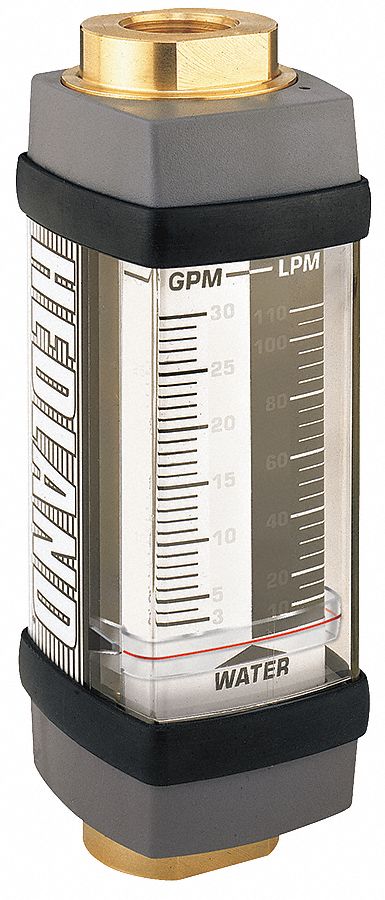

HEDLAND Flowmeter, GPM/LPM 1.0 - 10 / 5-38
