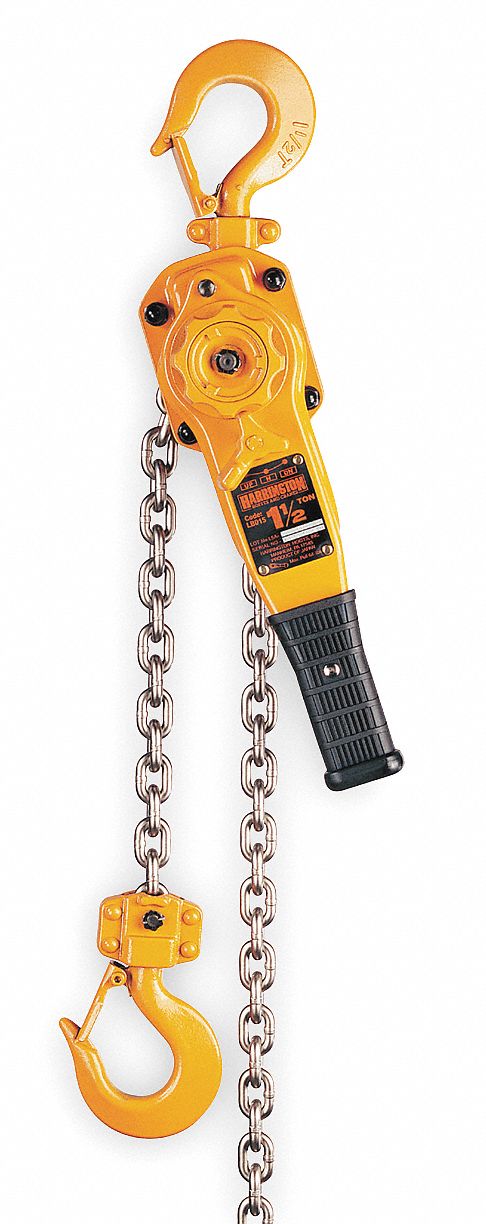

HARRINGTON Hoist, Ratchet Lever, 1 1/2 Ton, 5 Ft Lift

Lever Chain Hoist, Load Capacity 3000 lb., Lift 5 ft., Hook Opening 1-5/16 In., Min. Between Hooks 13-3/16 In., Pull to Lift Rated Load 64 lb., Lever Length 10-3/8 In., Brake Weston Style Load Brake, Reeving 1, Chain Manganese, Chain Length 6 ft., Finish Electrostatic Enamel, Standards ANSI/ASME B30.21, Includes Safety Latch Hooks
  • Grainger Item #1TAJ4
    Price (ea.)$772.50
    BrandHARRINGTON
    Mfr. Model #LB015-5
    UNSPSC #24101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)19.05
    Availability Typically in Stock
    Catalog Page No.1433
    Country of Origin
    (Country of Origin is subject to change.)    		Japan
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemLever Chain Hoist
Load Capacity3000 lb.
Lift5 ft.
Hook Opening1-5/16"
Min. Between Hooks13-3/16"
Pull to Lift Rated Load64 lb.
Lever Length10-3/8"
BrakeWeston Style Load Brake
Reeving1
ChainManganese
Chain Length6 ft.
FinishElectrostatic Enamel
StandardsANSI/ASME B30.21
IncludesSafety Latch Hooks
