Material Handling
>
Hoist and Rigging
>
Air Chain Hoist

HARRINGTON Air Chain Hoist, 6000 lb. Cap., 20 ft. Lft

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Chain Hoist, Load Capacity 6000 lb., Series TCR, Suspension Hook, Control Pendant, Lift 20 ft., Lift Speed 10 fpm, Min. Between Hooks 22-3/16 In., Reeving 1, Housing Length 17-11/16 In., Housing Width 8-29/32 In., Overall Length 22-3/16 In., Overall Width 8-29/32 In.Brake Self AdjustingAir Consumption 71 scfm, Air Pressure 90 psi, Yellow, Finish Acrylic Resin Paint, Inlet Size 1/2 In. NPT, Noise Level 92 dBA, Standards ANSI/ASME B30.17

Grainger Item #	5DZN6
Price (ea.)	$10,714.00
Brand	HARRINGTON
Mfr. Model #	TCR3000P-20
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	172.0
Availability	Item ships within 8 business days from supplier
Catalog Page No.	1421
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $1,999.00 each.
Price shown may not reflect your price. Sign in or register.

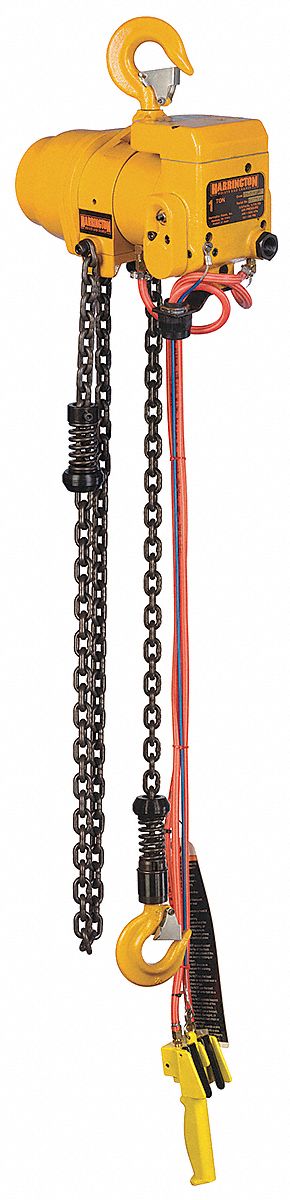

Air Chain Hoist, 6000 lb. Cap., 20 ft. Lft

Enlarge Image

Item		Air Chain Hoist
Load Capacity		6000 lb.
Series		TCR
Suspension		Hook
Control		Pendant
Lift		20 ft.
Lift Speed		10 fpm
Min. Between Hooks		22-3/16"
Reeving		1
Housing Length		17-11/16"
Housing Width		8-29/32"
Overall Length		22-3/16"
Overall Width		8-29/32"
Brake		Self Adjusting
Air Consumption		71 scfm
Air Pressure		90 psi
Color		Yellow
Finish		Acrylic Resin Paint
Inlet Size		1/2" NPT
Noise Level		92 dBA
Standards		ANSI/ASME B30.17
Includes		Nickle Plated Load Chain, Chain Container, Limit Switches, Built in Load Limiter
