Material Handling
>
Hoist and Rigging
>
Air Chain Hoist

HARRINGTON Air Chain Hoist, 500 lb. Cap., 10 ft. Lift

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Chain Hoist, Load Capacity 500 lb., Series TCS, Suspension Hook, Control Pull Cord, Lift 10 ft., Lift Speed 121 fpm, Min. Between Hooks 16-5/16 In., Reeving 1, Housing Length 14-3/8 In., Housing Width 8-11/16 In., Overall Length 14-3/8 In., Overall Width 8-11/16 In.Brake Self AdjustingAir Consumption 64 scfm, Air Pressure 90 psi, Yellow, Finish Acrylic Resin Paint, Inlet Size 1/2 In. NPT, Noise Level 83 dBA, Standards ANSI/ASME B30.17

Grainger Item #	5DZG9
Price (ea.)	$4,784.00
Brand	HARRINGTON
Mfr. Model #	TCS250C-10
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	40.0
Availability	Item ships within 8 business days from supplier
Catalog Page No.	1421
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

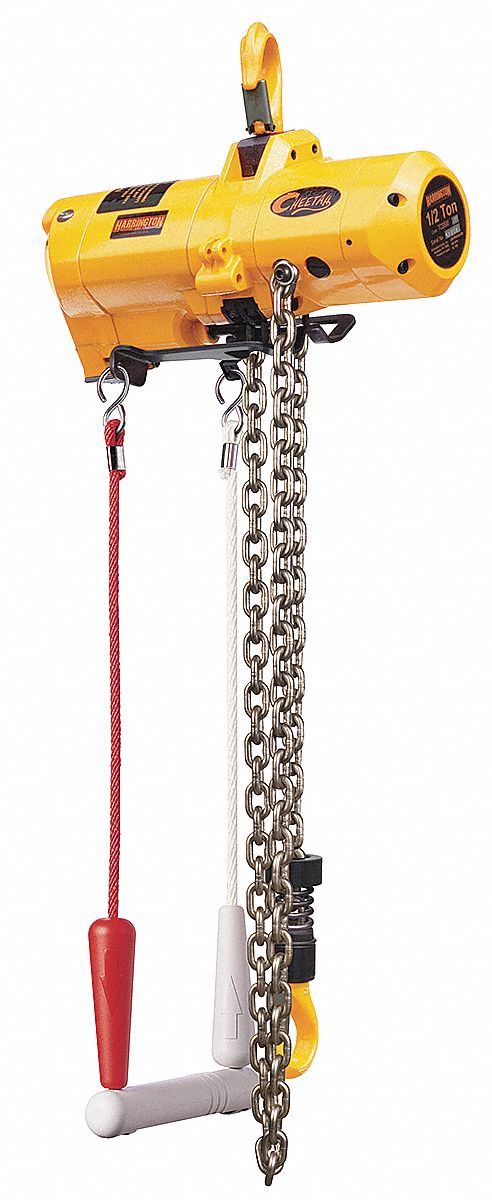

Air Chain Hoist, 500 lb. Cap., 10 ft. Lift

Enlarge Image

Item		Air Chain Hoist
Load Capacity		500 lb.
Series		TCS
Suspension		Hook
Control		Pull Cord
Lift		10 ft.
Lift Speed		121 fpm
Min. Between Hooks		16-5/16"
Reeving		1
Housing Length		14-3/8"
Housing Width		8-11/16"
Overall Length		14-3/8"
Overall Width		8-11/16"
Brake		Self Adjusting
Air Consumption		64 scfm
Air Pressure		90 psi
Color		Yellow
Finish		Acrylic Resin Paint
Inlet Size		1/2" NPT
Noise Level		83 dBA
Standards		ANSI/ASME B30.17
Includes		Nickle Plated Load Chain, Chain Container, External Speed Adjustment
