Material Handling
>
Hoist and Rigging
>
Air Chain Hoist

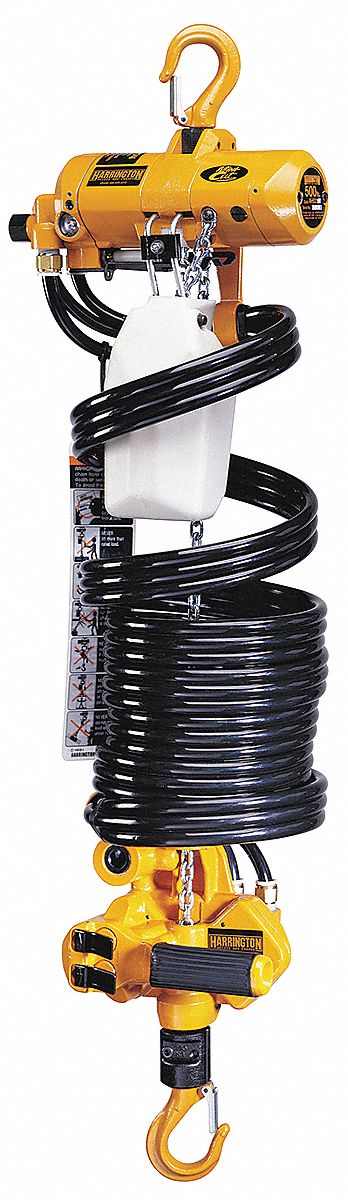

HARRINGTON Air Chain Hoist, 500 lb. Cap., 13 ft. Lift

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Chain Hoist, Load Capacity 500 lb., Series AH, Suspension Hook, Control Manipulator, Lift 13 ft., Lift Speed 29 fpm, Min. Between Hooks 45 In., Reeving 1, Housing Length 9-11/16 In., Housing Width 4 In., Overall Length 11-5/16 In., Overall Width 7-3/16 In.Brake Self AdjustingAir Consumption 26 scfm, Air Pressure 90 psi, Yellow, Finish Acrylic Resin Paint, Inlet Size 3/8 In. NPT, Noise Level 76 dBA, Standards ANSI/ASME B30.17, Includes Nickle Plated Load Chain, Chain Container

Grainger Item #	5DZG8
Price (ea.)	$5,139.00
Brand	HARRINGTON
Mfr. Model #	AH500M-13
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	34.75
Availability	Typically in Stock
Catalog Page No.	1421
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Chain Hoist
Load Capacity		500 lb.
Series		AH
Suspension		Hook
Control		Manipulator
Lift		13 ft.
Lift Speed		29 fpm
Min. Between Hooks		45"
Reeving		1
Housing Length		9-11/16"
Housing Width		4"
Overall Length		11-5/16"
Overall Width		7-3/16"
Brake		Self Adjusting
Air Consumption		26 scfm
Air Pressure		90 psi
Color		Yellow
Finish		Acrylic Resin Paint
Inlet Size		3/8" NPT
Noise Level		76 dBA
Standards		ANSI/ASME B30.17
Includes		Nickle Plated Load Chain, Chain Container
