Hydraulics
>
Hydraulic Hoses
>
Hydraulic Quick Couplers

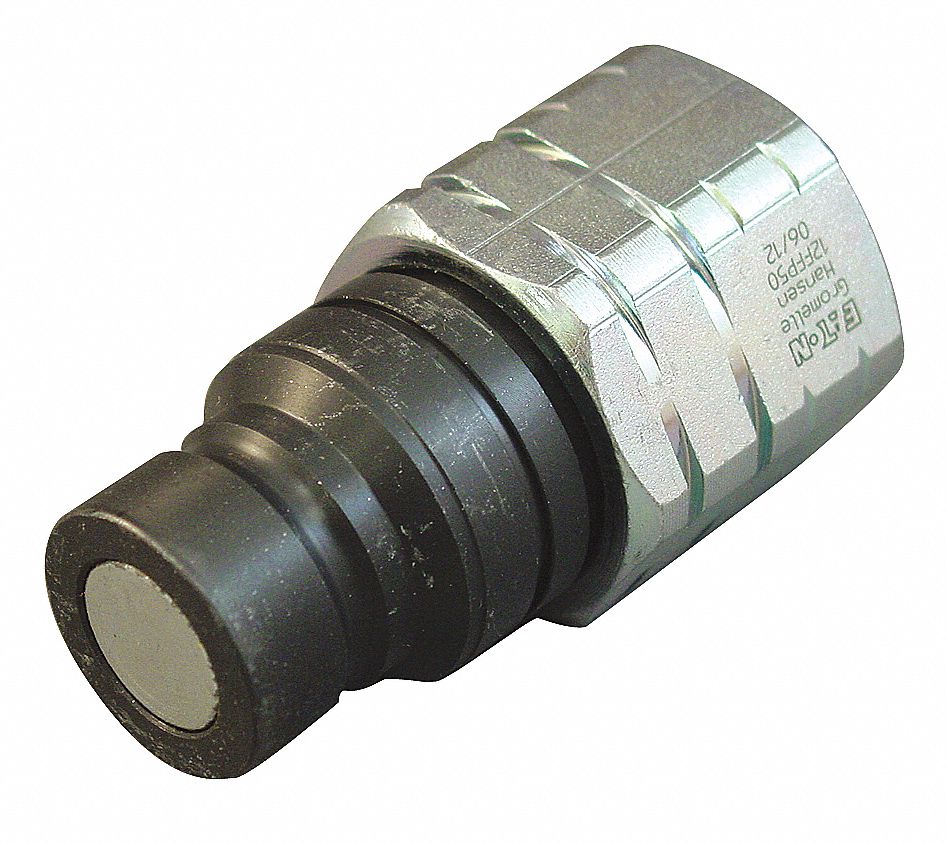

HANSEN Hydraulic Quick Coupler, Male, 1/4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hydraulic Quick Coupler, Flat Face, Male, Pipe Size NPT 1/4 In., Max. Pressure (PSI) 5075, Flow Rate (GPM) 3, Temp. Range (F) -4 To 212, Zinc Plated Steel Body Material, Zinc Plated Steel Sleeve Material, Stainless Steel Bearings, Buna N Seal Material, Flat Face Shut Off, Buna N Seal, Tubular Valve Design, Standard Sleeve Lock Locking Mechanism, Clear Chromate Finish, FF Series, For Use With 12FFS50, 12FFS75UN, 12FFS106UN, Heavy Knurled Sleeve, Push To Connect, Sleeve Lock, ISO 16028 Standards

Grainger Item #	33M283
Price (ea.)	$67.20
Brand	HANSEN
Mfr. Model #	6FFP25
UNSPSC #	27121701
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.2
Availability	Typically in Stock
Catalog Page No.	3889
Country of Origin (Country of Origin is subject to change.)	France

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hydraulic Quick Coupler
Type		Flat Face, Male
Pipe Size NPT		1/4"
Max. Pressure (PSI)		5075
Flow Rate (GPM)		3
Temp. Range (F)		-4 To 212
Body Material		Zinc Plated Steel
Sleeve Material		Zinc Plated Steel
Bearings		Stainless Steel
Seal Material		Buna N
Shut Off		Flat Face
Seal		Buna N
Valve Design		Tubular
Locking Mechanism		Standard Sleeve Lock
Finish		Clear Chromate
Series		FF
For Use With		Mfr. No. 12FFS50, 12FFS75UN, 12FFS106UN
Features		Heavy Knurled Sleeve, Push To Connect, Sleeve Lock
Standards		ISO 16028
Parker Interchange		FEM252-4FP
