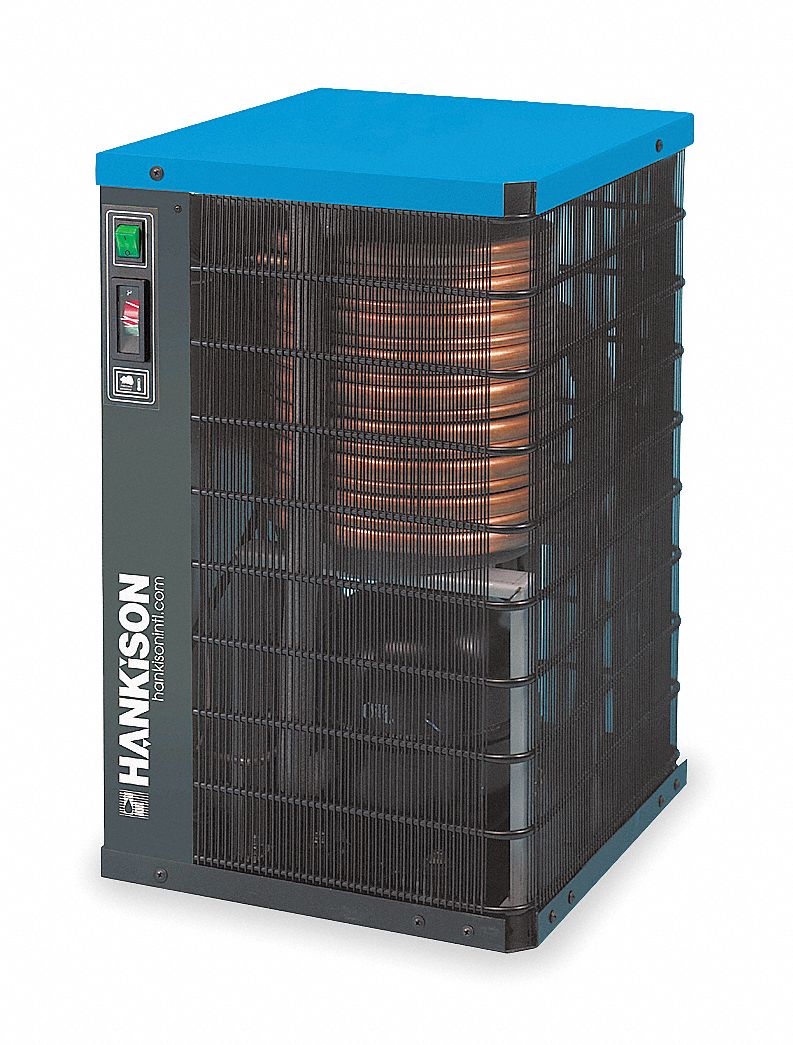

Refrigerated Air Dryer, Non Cycling Direct Expansion Refrigeration System, Rated For 7.5 HP, 25 CFM Capacity, 115 VAC, Inlet/Outlet 3/4 Inch NPT, Height 22 Inches, Width 15 Inches, Depth 16 Inches, Epoxy Powder Coat Finish, Uses 134A Refrigerant, Includes Constant Expansion Valve With Freeze Up Protection, Air Flow @ 38 Degrees Fahrenheit Dew Point Pressure 25 CFM, Air Flow @ 50 Degrees Fahrenheit Dew Point Pressure 33 CFM
  • Grainger Item #3YA45
    Price (ea.)$1,447.00
    BrandHANKISON
    Mfr. Model #HPR25
    UNSPSC #23201202
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)72.75
    Availability Typically in Stock
    Catalog Page No.4021
    Country of Origin
    (Country of Origin is subject to change.)
    South Korea
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCompressed Air Dryer
ISO Class6
CFM25
Dew Point (Deg. F)46
Max. Air Compressor HP7.5
Max. Pressure (PSI)250
Inlet/Outlet (In.)3/4 NPT
Voltage115
Phase1
Amps AC6.00
Max. Inlet Temp. (Deg. F)120
Max. Ambient Temp. (F)110
FinishEpoxy Powder Coated
Height (In.)22
Width (In.)15
Depth (In.)16
FeaturesOn/Off Switch, Power On Light and Dew Point Indicator
Includes6 ft. Power Cord
