Electrical
>
Solenoids
>
Mechanical Solenoids

GUARDIAN ELECTRIC Solenoid, Tubular, 12DC, 1.29A, 9.3 Ohms

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid, Tubular, Dia. 1 In., Body Length 2 1/32 In., Length 2 1/32 In., Coil Volts 12DC, Seated Amps 1.29A, Seated Watts 16.9, Coil Resistance (Ohms) 9.3, Coil Insulation Class 105, Terminals 6.5 In Leads, Duty Cycle Intermittent, Material of Construction Steel, Mounting Holes MOUNTING BRACING (2 HOLES), Standards UL, RoHs

Grainger Item #	5EGV0
Price (ea.)	$41.50
Brand	GUARDIAN ELECTRIC
Mfr. Model #	TP8X16-I-12D
UNSPSC #	31251510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.48
Availability	Typically in Stock
Catalog Page No.	397
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

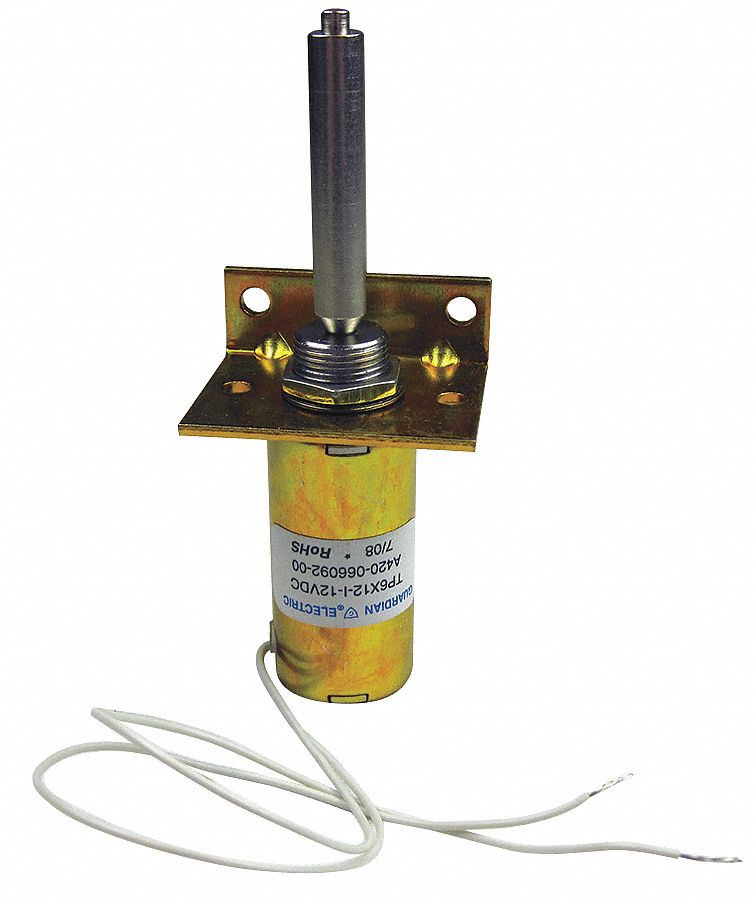

Solenoid, Tubular, 12DC, 1.29A, 9.3 Ohms

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid
Type		Tubular
Stroke Range		1/8 to 3/4"
Pull Force Range		6 to 32 oz.
Dia. (In.)		1
Width (In.)		1
Length (In.)		2-1/32
Body Length (In.)		2-1/32
Coil Volts		12DC
Seated Amps		1.29A
Seated Watts		16.9
Coil Resistance (Ohms)		9.3
Coil Insulation		Class 105
Terminals		6.5" Leads
Duty Cycle		Intermittent
Material of Construction		Steel
Mounting Holes		Mounting Bracket (2 Holes)
Standards		UL, RoHs
