GUARDIAN ELECTRIC
Solenoid, Box Frame, 12DC, 471mA, 25.5 Ohms

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid, Box Frame, Latching, Body Length 2 In., Length 2 In., Width 1 7/16 In., Depth 1 5/8 In., Coil Volts 12DC, Seated Amps 471mA, Seated Watts 5.9, Coil Resistance (Ohms) 25.5, Coil Insulation Class 105, Terminals Solder Lug, Duty Cycle Continuous, Material of Construction Steel, Mounting Holes 8-32 UNC-2B (8 HOLES), From Mounting Holes to Plunger Hole 1 7/8 In., Standards UL, RoHs

Grainger Item #	5EGP6
Price (ea.)	$142.30
Brand	GUARDIAN ELECTRIC
Mfr. Model #	4L-C-12D
UNSPSC #	31251510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.75
Availability	Item ships within 31 business days from supplier
Catalog Page No.	397
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

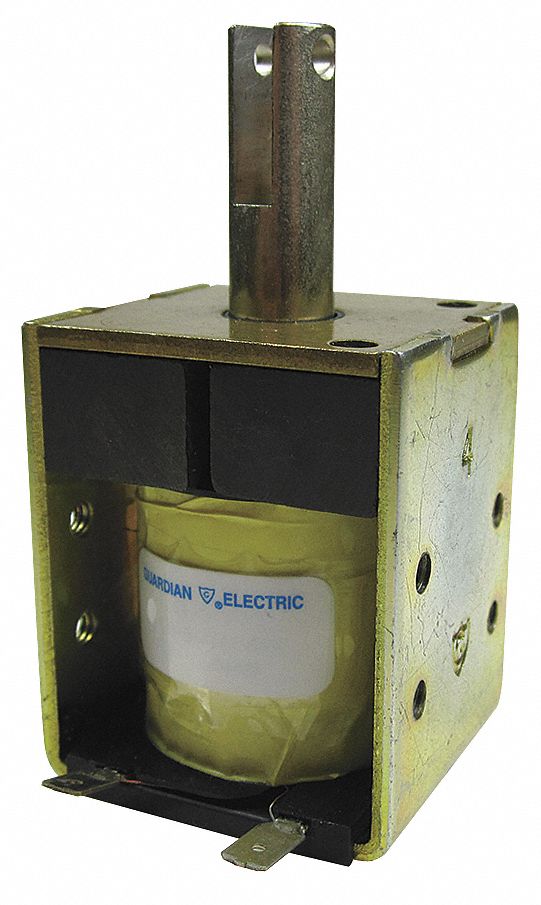

Solenoid, Box Frame, 12DC, 471mA, 25.5 Ohms

Enlarge Image

Item		Solenoid
Type		Box Frame, Latching
Stroke Range		1/8 to 1"
Pull Force Range		1 to 65 oz.
Width (In.)		1-7/16
Depth (In.)		1-5/8
Length (In.)		2
Body Length (In.)		2
Coil Volts		12DC
Seated Amps		471mA
Seated Watts		5.9
Coil Resistance (Ohms)		25.5
Coil Insulation		Class 105
Terminals		Solder Lug
Duty Cycle		Continuous
Material of Construction		Steel
Mounting Holes		8-32 UNC-2B (8 Holes)
From Mounting Holes to Plunger Hole (In.)		1-7/8
Standards		UL, RoHs
