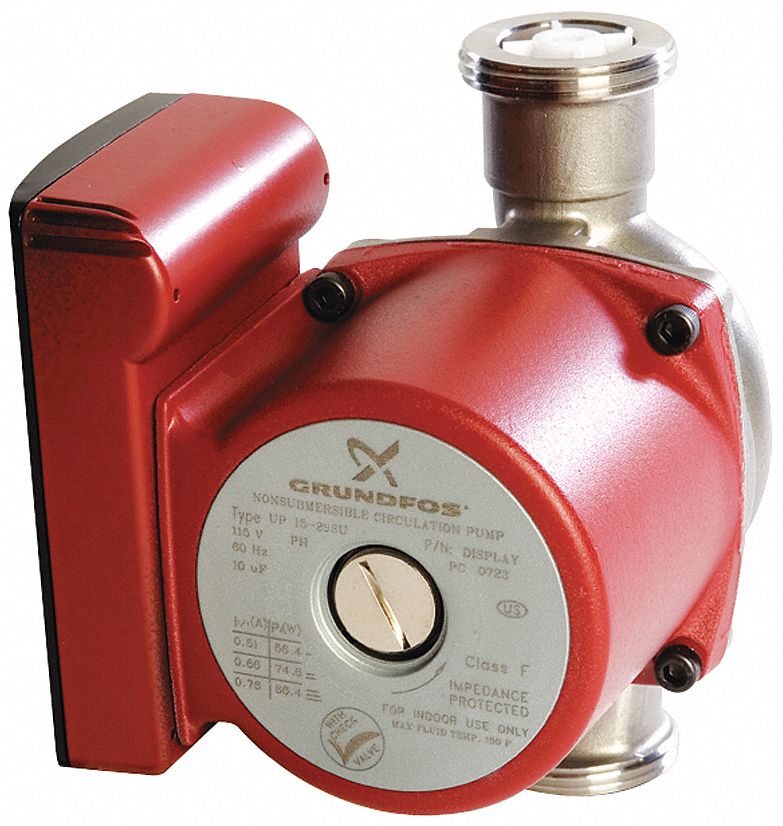

GRUNDFOS Circulator Pump, 1/12 HP, 115 V, 0.75 Amps

Circulator Pump, Open Loop, 1/12 HP, 1 Phase, Voltage 115, 0.75 Amps, Inlet/Outlet 1 1/4 NPSM, Housing Material Stainless Steel, Max. Temp. 230 F, Max. Working Pressure 145 PSI, Shut-Off 20 Ft., 2180 RPM, Impeller Material PES Composite, Auto Thermal Protection, Mechanical Seal Wet Rotor, Warranty Length 3 Years
  • Grainger Item #4VZJ6
    Price (ea.)$320.00
    BrandGRUNDFOS
    Mfr. Model #UP15-29SU
    UNSPSC #40151504
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)5.3
    Availability Typically in Stock
    Catalog Page No.4129
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCirculator Pump
TypeOpen Loop
StyleHot Water Return Line
HP1/12
Voltage115
Phase1
Amps0.75
Inlet/Outlet1 1/4" NPSM
Housing MaterialStainless Steel
Face to Face Dimension (In.)5-7/8
Max. Temp. (F)230
Max. Working Pressure (PSI)145
Flange/Union IncludedNo
Shut-Off (Ft.)20
RPM2180
Impeller MaterialPES Composite
Shaft MaterialCeramic
Thermal ProtectionAuto
GPM of Water @ 1 Ft. of Head18.7
GPM of Water @ 2 Ft. of Head16.9
GPM of Water @ 3 Ft. of Head14.8
GPM of Water @ 4 Ft. of Head13
GPM of Water @ 5 Ft. of Head11
GPM of Water @ 6 Ft. of Head9
GPM of Water @ 7 Ft. of Head6.8
GPM of Water @ 8 Ft. of Head4.3
GPM of Water @ 9 Ft. of Head2
Length (In.)5-7/8
Width (In.)5-1/2
Feet of Head @ 3 GPM8.55
Feet of Head @ 4 GPM8.2
Feet of Head @ 5 GPM7.85
Max. GPM @ Head (Ft.)18 @ 1
Best Efficiency GPM @ Head (Ft.)10 @ 5.4
Feet of Head @ 6 GPM7.5
Feet of Head @ 7 GPM6.95
Min. GPM @ Head (Ft.)2 @ 9
Feet of Head @ 8 GPM6.5
Drive TypeDirect
Bearing TypeCarbon
Feet of Head @ 9 GPM5.9
Feet of Head @ 10 GPM5.4
Mechanical SealWet Rotor
ConstructionPES Composite
Feet of Head @ 12 GPM4.4
Feet of Head @ 15 GPM2.9
Feet of Head @ 18 GPM1.4
Watts87
Manufacturers Warranty Length3 Years
ComplianceCertified For Use in Potable Water Applications in CA and VT

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Circulator Pump, 1/12 HP, 115 V, 0.75 Amps" /> <div id="BVRRContentValidationID_4VZJ6"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-17" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Circulator Pump, 1/12 HP, 115 V, 0.75 Amps" />Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_4VZJ6"><div id='1157162' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Circulator Pump, 1/12 HP, 115 V, 0.75 Amps" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">cleanpools</span><span itemprop="name"> Great product.</span><span itemprop="description"> Used as a replacement for the same motor and it fit perfectly. Thank you for keeping the specs the same.</span> March 22, 2012<meta itemprop="datePublished" content="2012-03-22" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_4VZJ6').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>

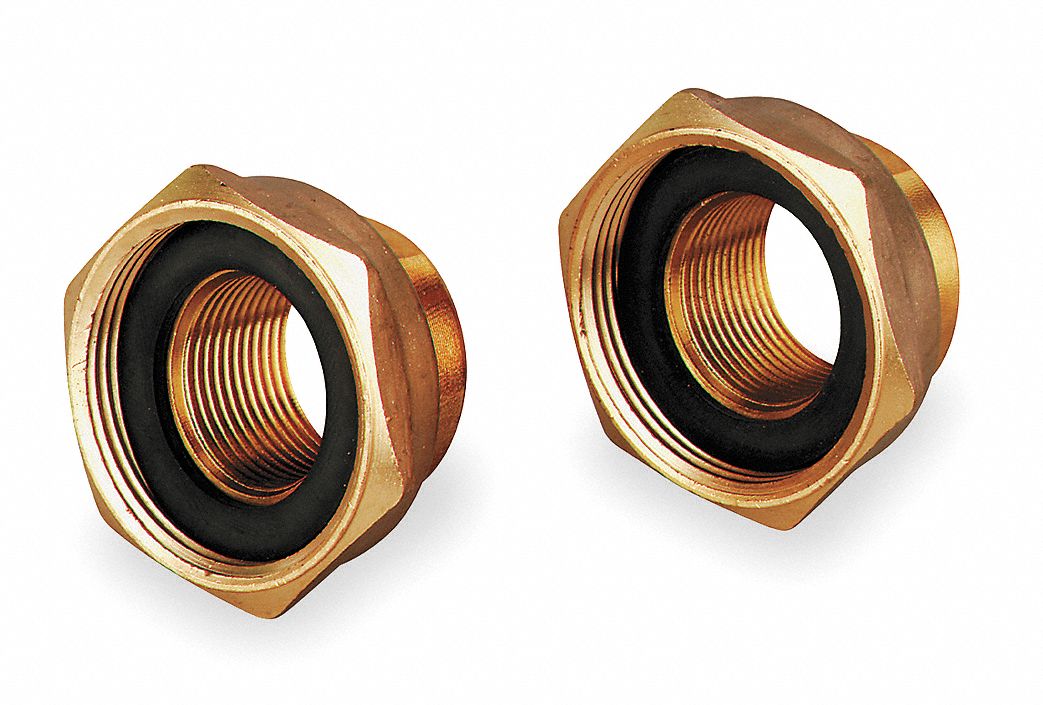

Optional Accessories
