Pumps
>
Hot Water Circulating Pumps
>
Hot Water Circulating Pumps

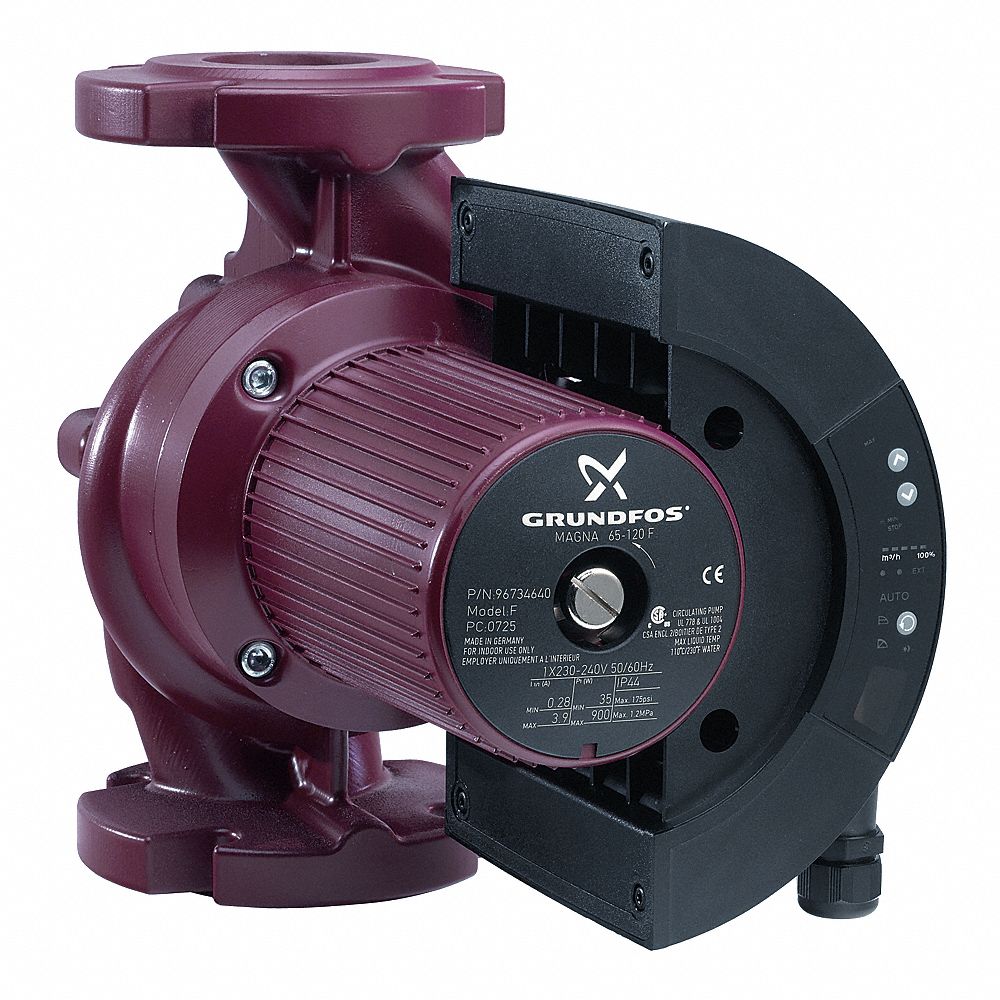

GRUNDFOS Circulator Pump, Closed, 900 Watts, CI

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circulator Pump, Closed Loop, Variable Speed, Voltage 230, 1 Phase, Amps 3.9, Inlet/Outlet GF 53 In Flanged, Cast Iron Housing Material, Face to Face Dimension 11-1/2 In., Max. Temp. 200 Degrees F, Max. Working Pressure 175 PSI, Stainless Steel Impeller Material, Auto Thermal Protection

Grainger Item #	19H338
Price (ea.)	$4,375.00
Brand	GRUNDFOS
Mfr. Model #	MAGNA 65-120
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	60.5
Availability	Item ships within 6 business days from supplier
Catalog Page No.	4129
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Circulator Pump
Type		Closed Loop
Series		MAGNA
Style		Wet Rotor, Maintenance-Free
Speed		Variable
Voltage		230
Phase		1
Connection (In.)		2-1/2
Inlet/Outlet NPT (In.)		2-1/2
Amps		3.9
Inlet/Outlet		GF 53" Flanged
Housing Material		Cast Iron
Face to Face Dimension (In.)		11-1/2
Max. Temp. (F)		200 Degrees
Max. Working Pressure (PSI)		175
Flange/Union Included		No
Shut-Off (Ft.)		40
RPM		Variable
Impeller Material		Stainless Steel
Shaft Material		Stainless Steel
Thermal Protection		Auto
GPM of Water @ 9 Ft. of Head		170
GPM of Water @ 10 Ft. of Head		167
Agency Compliance		CE, CCSAUS
GPM of Water @ 11 Ft. of Head		163
GPM of Water @ 12 Ft. of Head		160
GPM of Water @ 13 Ft. of Head		155
GPM of Water @ 15 Ft. of Head		150
GPM of Water @ 18 Ft. of Head		138
GPM of Water @ 20 Ft. of Head		131
GPM of Water @ 25 Ft. of Head		111
GPM of Water @ 30 Ft. of Head		91
GPM of Water @ 35 Ft. of Head		67
GPM of Water @ 40 Ft. of Head		45
Length (In.)		11-1/2
Width (In.)		8-1/2
Feet of Head @ 3 GPM		40
Feet of Head @ 4 GPM		40
Feet of Head @ 5 GPM		40
Max. GPM @ Head (Ft.)		169 @ 9
Best Efficiency GPM @ Head (Ft.)		106 @ 26
Feet of Head @ 6 GPM		40
Feet of Head @ 7 GPM		40
Min. GPM @ Head (Ft.)		1 @ 40
Feet of Head @ 8 GPM		40
Drive Type		Direct
Bearing Type		Ceramic
Feet of Head @ 9 GPM		41
Feet of Head @ 10 GPM		41
Feet of Head @ 12 GPM		41
Feet of Head @ 15 GPM		41
Feet of Head @ 18 GPM		41
Feet of Head @ 20 GPM		41
Watts		900
Feet of Head @ 25 GPM		42
Feet of Head @ 30 GPM		42
Feet of Head @ 40 GPM		41
Feet of Head @ 50 GPM		39
Feet of Head @ 60 GPM		37
Manufacturers Warranty Length		2 Years
Feet of Head @ 70 GPM		35
Feet of Head @ 80 GPM		32
Feet of Head @ 90 GPM		30
Feet of Head @ 100 GPM		28
Feet of Head @ 110 GPM		25
Feet of Head @ 120 GPM		23
