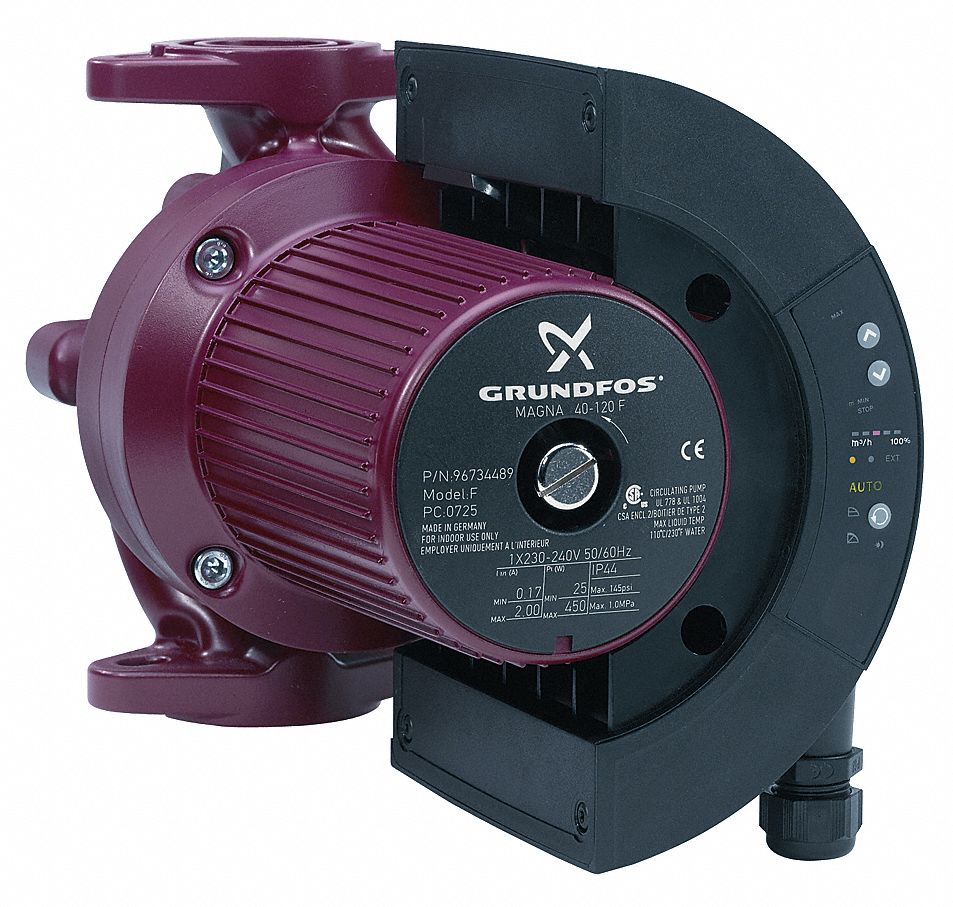

GRUNDFOS Circulator Pump, Open, 450 Watts, SS

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circulator Pump, Open Loop, Variable Speed, Voltage 230, 1 Phase, Amps 2, Inlet/Outlet GF 40/43 In Flanged, Stainless Steel Housing Material, Face to Face Dimension 8-1/2 In., Max. Temp. 200 Degrees F, Max. Working Pressure 175 PSI, Stainless Steel Impeller Material, Auto Thermal Protection

Grainger Item #	19H337
Price (ea.)	$4,050.00
Brand	GRUNDFOS
Mfr. Model #	MAGNA 40-120
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	41.75
Availability	Typically in Stock
Catalog Page No.	4129
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circulator Pump
Type		Open Loop
Series		MAGNA
Style		Wet Rotor, Maintenance-Free
Speed		Variable
Voltage		230
Phase		1
Connection (In.)		1-1/2
Inlet/Outlet NPT (In.)		1-1/2
Amps		2
Inlet/Outlet		GF 40/43" Flanged
Housing Material		Stainless Steel
Face to Face Dimension (In.)		8-1/2
Max. Temp. (F)		200 Degrees
Max. Working Pressure (PSI)		175
Flange/Union Included		No
Shut-Off (Ft.)		38
RPM		Variable
Impeller Material		Stainless Steel
Shaft Material		Stainless Steel
Thermal Protection		Auto
GPM of Water @ 6 Ft. of Head		95
GPM of Water @ 7 Ft. of Head		93
GPM of Water @ 8 Ft. of Head		91
GPM of Water @ 9 Ft. of Head		89
GPM of Water @ 10 Ft. of Head		87
Agency Compliance		CE, CCSAUS
GPM of Water @ 11 Ft. of Head		84
GPM of Water @ 12 Ft. of Head		83
GPM of Water @ 13 Ft. of Head		80
GPM of Water @ 15 Ft. of Head		76
GPM of Water @ 18 Ft. of Head		69
GPM of Water @ 20 Ft. of Head		64
GPM of Water @ 25 Ft. of Head		52
GPM of Water @ 30 Ft. of Head		39
GPM of Water @ 35 Ft. of Head		25
GPM of Water @ 40 Ft. of Head		10
Length (In.)		8-1/2
Width (In.)		7-1/2
Feet of Head @ 3 GPM		39
Feet of Head @ 4 GPM		39
Feet of Head @ 5 GPM		39
Max. GPM @ Head (Ft.)		95 @ 6
Best Efficiency GPM @ Head (Ft.)		55 @ 23
Feet of Head @ 6 GPM		39
Feet of Head @ 7 GPM		39
Min. GPM @ Head (Ft.)		1 @ 39
Feet of Head @ 8 GPM		40
Drive Type		Direct
Bearing Type		Ceramic
Feet of Head @ 9 GPM		40
Feet of Head @ 10 GPM		40
Feet of Head @ 12 GPM		40
Feet of Head @ 15 GPM		39
Feet of Head @ 18 GPM		38
Feet of Head @ 20 GPM		37
Watts		450
Feet of Head @ 25 GPM		35
Feet of Head @ 30 GPM		34
Feet of Head @ 40 GPM		30
Feet of Head @ 50 GPM		26
Feet of Head @ 60 GPM		22
Manufacturers Warranty Length		2 Years
Feet of Head @ 70 GPM		17
Feet of Head @ 80 GPM		13
Feet of Head @ 90 GPM		9
