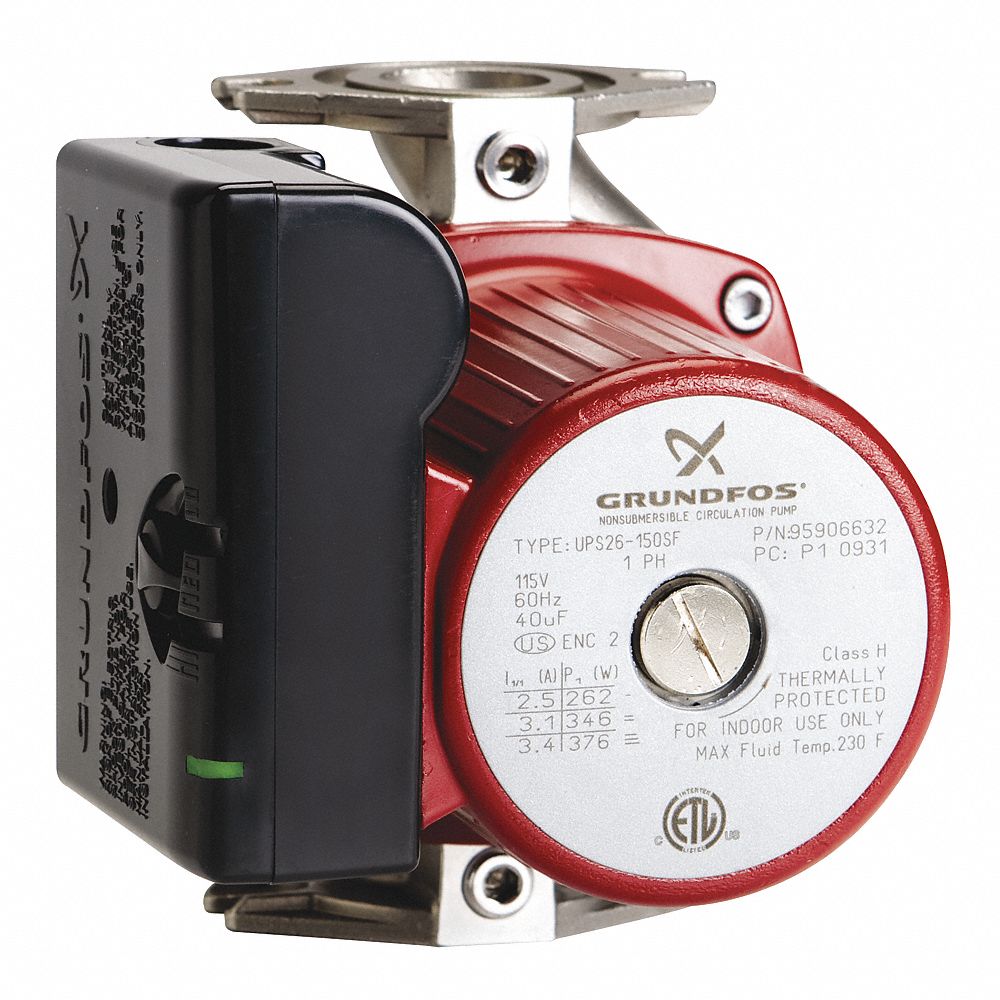

GRUNDFOS Circulator Pump, Open, 115V, Max3.5A, SS

Circulator Pump, Open Loop, 1/6 HP, Voltage 115, 1 Phase, Amps 3.5 Max, Inlet/Outlet GF 50 In 2-Bolt Flange, Stainless Steel Housing Material, Face to Face Dimension 8-1/8 In., Max. Temp. 230 F, Max. Working Pressure 145 PSI, PES Composite Impeller Material, Auto Thermal Protection, Wet Rotor Mechanical Seal
  • Grainger Item #15E572
    Price (ea.)$2,500.00
    BrandGRUNDFOS
    Mfr. Model #UPS50-60 SF
    UNSPSC #40151504
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)22.5
    Availability Typically in Stock
    Catalog Page No.4129
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCirculator Pump
TypeOpen Loop
HP1/6
Voltage115
Phase1
Amps3.5 Max
Inlet/OutletGF 50" 2-Bolt Flange
Housing MaterialStainless Steel
Face to Face Dimension (In.)8-1/8
Max. Temp. (F)230
Max. Working Pressure (PSI)145
Flange/Union IncludedNo
Shut-Off (Ft.)21
RPM3380
Impeller MaterialPES Composite
Shaft MaterialStainless Steel
Thermal ProtectionAuto
GPM of Water @ 7 Ft. of Head92
GPM of Water @ 8 Ft. of Head88
GPM of Water @ 9 Ft. of Head82
GPM of Water @ 10 Ft. of Head76
GPM of Water @ 11 Ft. of Head71
GPM of Water @ 12 Ft. of Head67
GPM of Water @ 13 Ft. of Head62
GPM of Water @ 15 Ft. of Head52
GPM of Water @ 18 Ft. of Head30
GPM of Water @ 20 Ft. of Head12
Length (In.)8-1/2
Width (In.)6
Feet of Head @ 3 GPM21
Feet of Head @ 4 GPM21
Feet of Head @ 5 GPM21
Max. GPM @ Head (Ft.)92 @ 7
Best Efficiency GPM @ Head (Ft.)56 @ 14
Feet of Head @ 6 GPM21
Feet of Head @ 7 GPM21
Min. GPM @ Head (Ft.)0 @ 21
Feet of Head @ 8 GPM21
Drive TypeDirect
Bearing TypeCeramic
Feet of Head @ 9 GPM20
Feet of Head @ 10 GPM20
Mechanical SealWet Rotor
ConstructionStainless Steel
Feet of Head @ 12 GPM20
Feet of Head @ 15 GPM20
Feet of Head @ 18 GPM19
Gas Connection (In.)No
Feet of Head @ 20 GPM19
Watts395
Feet of Head @ 25 GPM19
Feet of Head @ 30 GPM18
Feet of Head @ 40 GPM17
Feet of Head @ 50 GPM15
Additional Features3-Speed
Feet of Head @ 60 GPM13
Manufacturers Warranty Length3 Years
Feet of Head @ 70 GPM11
CompliancecETL
Feet of Head @ 80 GPM9
Feet of Head @ 90 GPM8

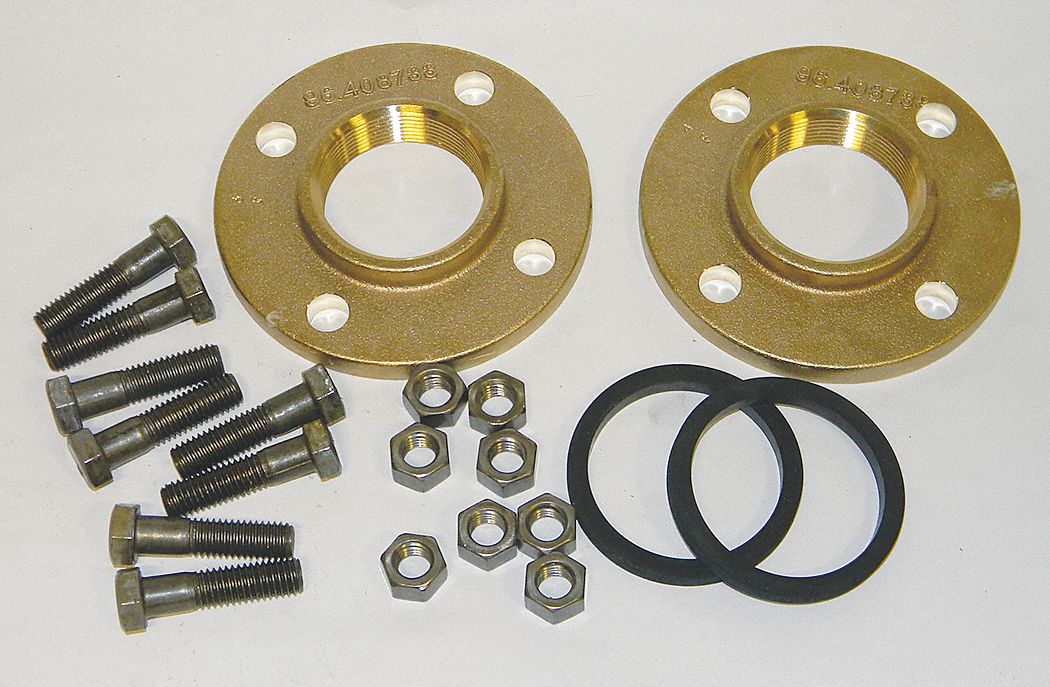

Optional Accessories
