Pumps
>
Centrifugal Pumps
>
Straight Center Discharge Pumps

GOULDS WATER TECHNOLOGY

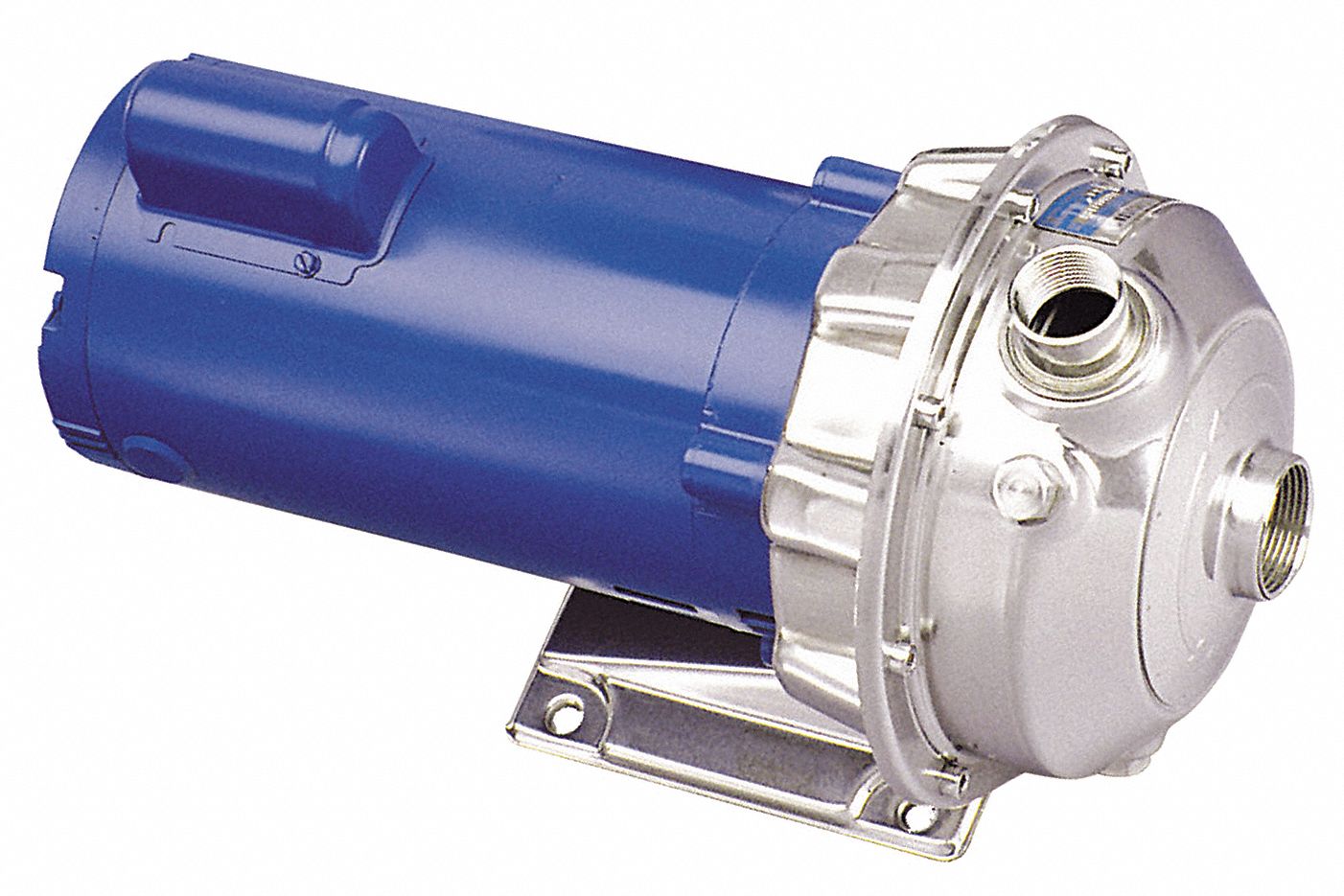

Pump, Straight Center Discharge, 1/2 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Straight Center Discharge, 1/2 HP, 1 Phase, Voltage 115/230, Amps 9.2/ 4.6, 60 Hz, Inlet 1-1/4 In., Outlet 1 In., Motor Enclosure TEFC, NEMA/IEC Frame 56J, Motor RPM 3500, Wetted Materials ANSI 316L SS, Impeller Material 316 SS, Housing Material 316 SS, Seal Material Silicon Carbide, Viton And Stainless Steel, Max. Liquid Temp. 212 F, Max. Head 75 Ft.

Grainger Item #	6NZL6
Price (ea.)	$893.50
Brand	GOULDS WATER TECHNOLOGY
Mfr. Model #	1ST1C4E4
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	39.4
Availability	Typically in Stock
Catalog Page No.	4075
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Straight Center Discharge
HP		1/2
Phase		1
Voltage		115/230
Amps		9.2/ 4.6
Hz		60
Inlet (In.)		1-1/4
Outlet (In.)		1
Motor Enclosure		TEFC
NEMA/IEC Frame		56J
Motor RPM		3500
Wetted Materials		ANSI 316L SS
Impeller Material		316 SS
Housing Material		316 SS
Volute Material		316 SS
Shaft Material		AISI 316 SS
Shaft Size (In.)		5/8
Screw Material		316 SS
Seal Type		Type 21 Mechanical
Seal Material		Silicon Carbide, Viton And Stainless Steel
Seal Application		Water
Bearings		Ball/Ball
Max. Liquid Temp. (F)		212
GPM of Water @ 40 Ft. of Head		37
GPM of Water @ 50 Ft. of Head		32
GPM of Water @ 60 Ft. of Head		25
GPM of Water @ 70 Ft. of Head		10
Max. Head (Ft.)		75
Best Efficiency GPM @ Head (Ft.)		27 @ 48
Max. Specific Gravity		1
Max. Fluid Viscosity		1.0
Impeller Type		Closed
Bearing Type		Ball
Duty		Continuous
Max. Pressure (PSI)		125
Port Rotation		9
Drain Plug		Yes
Length (In.)		15-3/8
Height (In.)		8-5/8
Width (In.)		8-1/8
For Use With		Water
Manufacturers Warranty Length		1 Year
