Centrifugal Pump, Power Rating 5 HP, Voltage @ 60 Hz 208-230/460 Volts, Current Rating 13.6/6.8 Amps, Impeller Diameter 4 3/4 Inches, Phase Three, Maximum Head 75 Feet, Motor Enclosure TEFC, Outlet 2 1/2 Inches, Inlet 3 Inches, Service Factor 1.15, Length 20 1/2 Inches, Height 10 1/2 Inches, Width 13 Inches, Water Flow @ 30 Feet of Head 240 GPM, Water Flow @ 40 Feet of Head 215 GPM, Water Flow @ 50 Feet of Head 192 GPM, Bronze Fitted
  • Grainger Item #1N472
    Price (ea.)$2,349.00
    BrandGOULDS WATER TECHNOLOGY
    Mfr. Model #4BF1J5J0
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)139.0
    Availability Typically in Stock
    Catalog Page No.4076
    Country of Origin
    (Country of Origin is subject to change.)
    USA
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemPump
TypeCentrifugal
HP5
Phase3
Voltage208-230/460
Amps14.8-13.6/6.8
Inlet (In.)3
Outlet (In.)2-1/2
Motor EnclosureTEFC
Housing MaterialCast Iron
Impeller TypeClosed
Impeller MaterialBronze
Max. GPM @ Head (Ft.)210 @ 58
Best Efficiency GPM @ Head (Ft.)140 @ 70
Min. GPM @ Head (Ft.)50 @ 75
Max. Head (Ft.)75
Seal MaterialStainless Steel, Buna N Carbon/Ceramic Parts
Length (In.)20-1/2
Width (In.)13
Height (In.)10-1/2
Impeller Dia. (In.)4-1/2
NEMA/IEC Frame184JM
Motor RPM3500
Hz60
Service Factor1.15
Wetted MaterialsCI,BR,Carbon,Ceramic,Buna N,SS
Volute MaterialCast Iron
Shaft Material300 Series Stainless Steel
Max. Liquid Temp. (F)212F with Standard Seal, 250F with High Temperature Seal
GPM of Water @ 30 Ft. of Head240
GPM of Water @ 40 Ft. of Head215
GPM of Water @ 50 Ft. of Head192
GPM of Water @ 60 Ft. of Head162
GPM of Water @ 70 Ft. of Head120
Best Efficiency Range GPM @ Head (Ft.)100-200 GPM @ 75-38 Ft
Max. Specific Gravity1.0
Max. Case Pressure (PSI)175
Max. Fluid Viscosity40 SSU
Inlet Pressure (PSI)100 G
Max. Pressure (PSI)175
DutyContinuous
Max. Dia. Solids (In.)5/16
Port Rotation90 Increments
Drain PlugAll Position
Manufacturers Warranty Length1 Year
ApplicationBooster Service Spraying systems Irrigation Water Circulation Liquid Transfer General Purpose Pumping


Required Accessories

More Accessories

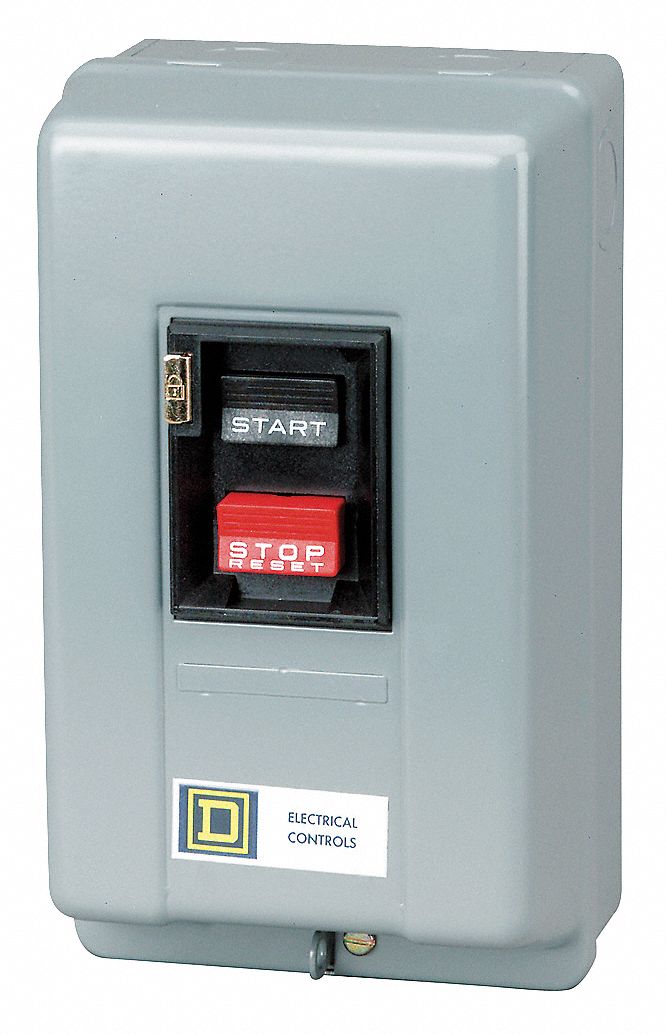

Brand:
