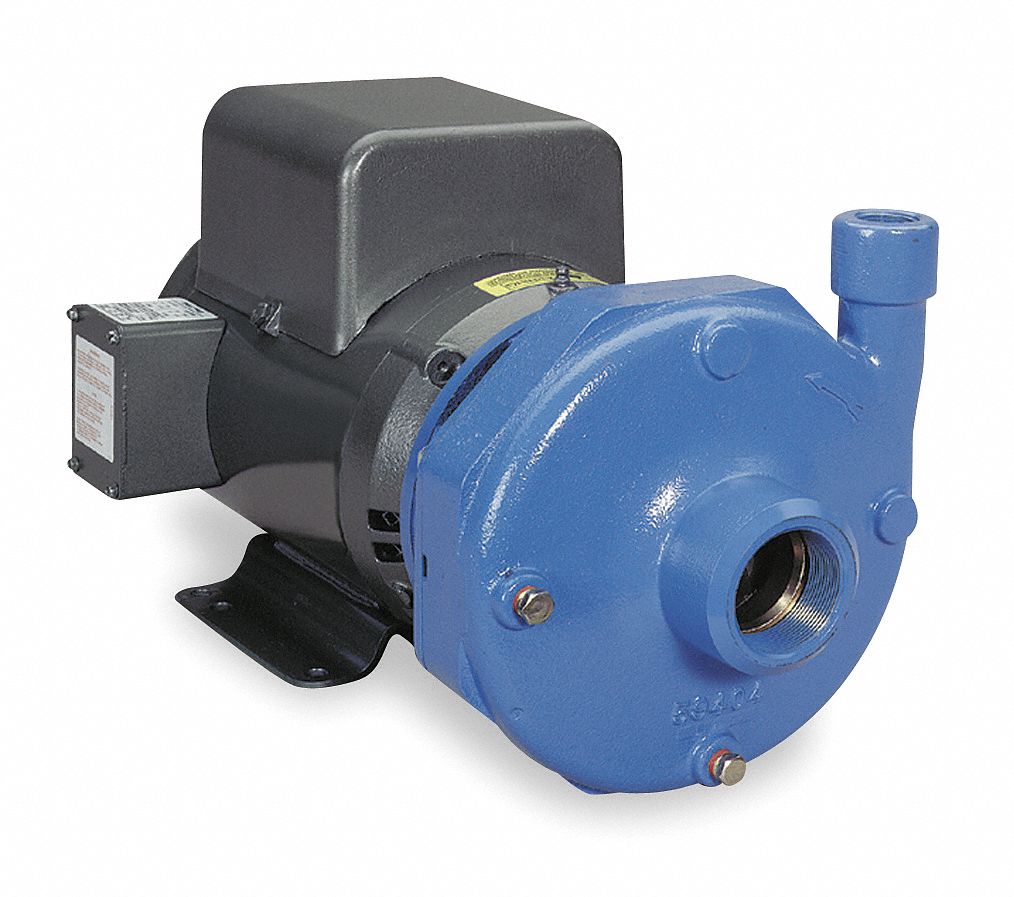

Centrifugal Pump, Power Rating 15 HP, Voltage @ 60 hz 208-230/460 Volts, Current Rating 41/20.5 Amperes, Impeller Diameter 7 5/8 Inches, Phase Three, Maximum Head 260 Feet, Motor Enclosure ODP, Outlet 1 1/2 Inches, Inlet 2 Inches, Service Factor 1.15, Length 23 5/8 Inches, Height 10 3/4 Inches, Width 14 9/16 Inches, Water Flow @ 160 Feet of Head 250 Gallons per Minute, Water Flow @ 180 Feet of Head 230 Gallons per Minute, Water Flow @ 200 Feet of Head 210 Gallons per Minute, Bronze Fitted
  • Grainger Item #1N468
    Price (ea.)$3,106.00
    BrandGOULDS WATER TECHNOLOGY
    Mfr. Model #5BF1M2B0
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)180.0
    Availability Item ships within 6 business days from supplier
    Catalog Page No.4076
    Country of Origin
    (Country of Origin is subject to change.)
    USA
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
ItemCentrifugal Pump
TypeClose Coupled
Housing MaterialCast Iron
HP15
Voltage208-230/460
Amps44-41.8/20.9
Hz60
Inlet (In.)2
Outlet (In.)1-1/2
Motor EnclosureODP
NEMA/IEC Frame215JM
Motor RPM3500
Motor TypeJM
Service Factor1.15
Impeller TypeClosed
Impeller MaterialBronze
Impeller Dia. (In.)7-5/8
Max. Dia. Solids (In.)5/16
Volute MaterialCast Iron
Shaft MaterialSteel
Seal TypeType 21
Seal MaterialMechanical Shaft, with Stainless Steel, Buna N Carbon/Ceramic Parts
Seal ApplicationWater
Max. Liquid Temp. (F)212
GPM of Water @ 160 Ft. of Head250
GPM of Water @ 180 Ft. of Head230
GPM of Water @ 200 Ft. of Head210
GPM of Water @ 220 Ft. of Head185
GPM of Water @ 240 Ft. of Head135
Max. Head (Ft.)260
Min. GPM @ Head (Ft.)50 @ 260
Max. GPM @ Head (Ft.)255 @ 160
Best Efficiency GPM @ Head (Ft.)180 @220
Best Efficiency Range GPM @ Head (Ft.)105-235 GPM @ 250-180 Ft
Max. Specific Gravity1
Wetted MaterialsCast Iron, Bronze,303 SS,Buna N,Carbon,Ceramic
Max. Case Pressure (PSI)175
Max. Fluid Viscosity40 SSU
Inlet Pressure (PSI)100
DutyContinuous
Port Rotation45 Increments
Drain PlugAll Position
Manufacturers Warranty Length1 Year
ApplicationWater Circulation Booster Service Liquid Transfer Spraying Systems jockey Pump Service
Length (In.)23-5/8
Width (In.)14-9/16
Height (In.)10-3/4


Required Accessories

More Accessories

Brand:

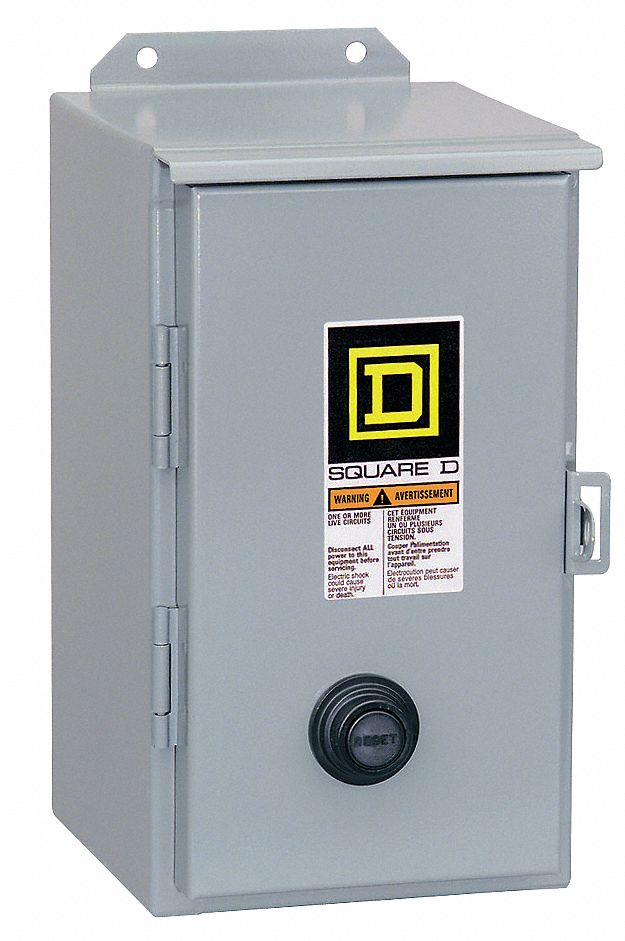

SQUARE D
