Pumps
>
Centrifugal Pumps
>
Straight Pumps (Above 80' of Max. Head)

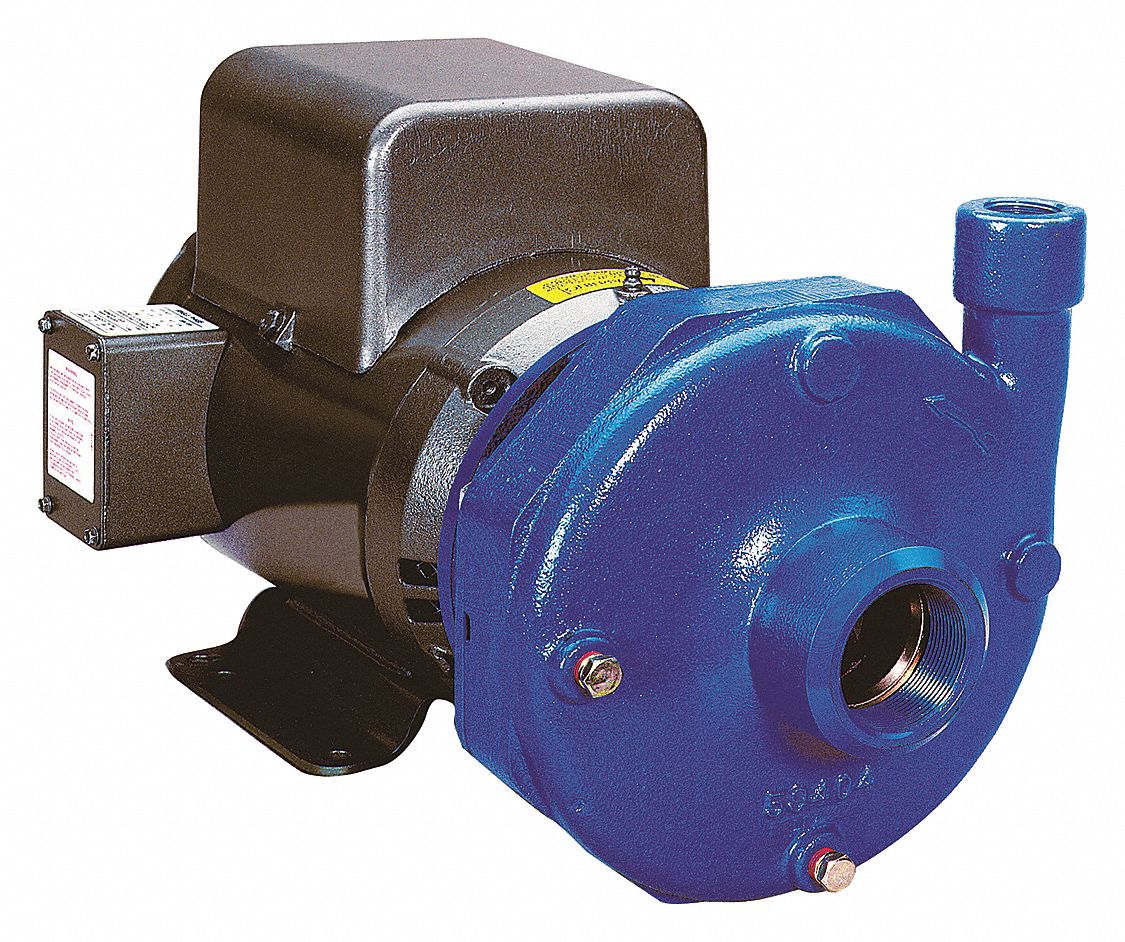

GOULDS WATER TECHNOLOGY Pump, Centrifugal, 15 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, HP Rating 15, Voltage @ 60 Hz 208-230/460, Phase Three, Full Load Amps 41/20.5, Service Factor 1.15, Impeller Diameter 6 3/8 Inches, Maximum Case Pressure 175 PSIG, Maximum Head 160 Feet, Motor Enclosure ODP, Outlet 3 Inches, Inlet 4 Inches, Water Flow @ 60 Feet of Head 570 GPM, @ 70 Feet of Head 550 GPM, @ 80 Feet of Head 530 GPM, Casing Cast Iron, Impeller Bronze, Length 23 5/8 Inches, Height 11 1/4 Inches, Width 17 13/16 Inches

Grainger Item #	1N458
Price (ea.)	$3,474.00
Brand	GOULDS WATER TECHNOLOGY
Mfr. Model #	6BF1M2B0
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	212.0
Availability	Typically in Stock
Catalog Page No.	4076
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Close Coupled
Housing Material		Cast Iron
HP		15
Phase		3
Voltage		208-230/460
Amps		44-41.8/20.9
Hz		60
Inlet (In.)		4
Outlet (In.)		3
Motor Enclosure		ODP
NEMA/IEC Frame		215JM
Motor RPM		3500
Motor Type		JM
Service Factor		1.15
Impeller Type		Closed
Impeller Material		Bronze
Impeller Dia. (In.)		6-3/8
Max. Dia. Solids (In.)		1/2
Volute Material		Cast Iron
Shaft Material		Steel
Seal Type		Type 21
Seal Material		Mechanical Shaft, with Stainless Steel, Buna N Carbon/Ceramic Parts
Seal Application		Water
Max. Liquid Temp. (F)		212
GPM of Water @ 60 Ft. of Head		570
GPM of Water @ 70 Ft. of Head		550
GPM of Water @ 80 Ft. of Head		530
GPM of Water @ 90 Ft. of Head		510
GPM of Water @ 100 Ft. of Head		480
GPM of Water @ 120 Ft. of Head		420
GPM of Water @ 140 Ft. of Head		320
Max. Head (Ft.)		160
Min. GPM @ Head (Ft.)		150 @ 157
Max. GPM @ Head (Ft.)		580 @ 55
Best Efficiency GPM @ Head (Ft.)		400 @ 125
Best Efficiency Range GPM @ Head (Ft.)		225-510 GPM @ 150-90 Ft
Max. Specific Gravity		1
Wetted Materials		Cast Iron, Bronze,303 SS,Buna N,Carbon,Ceramic
Max. Case Pressure (PSI)		175
Max. Fluid Viscosity		40 SSU
Inlet Pressure (PSI)		100
Duty		Continuous
Port Rotation		90 Increments
Drain Plug		All Position
Manufacturers Warranty Length		1 Year
Application		Water Circulation Booster Service Liquid Transfer Spraying Systems jockey Pump Service
Length (In.)		23-5/8
Width (In.)		17-13/16
Height (In.)		11-1/4
