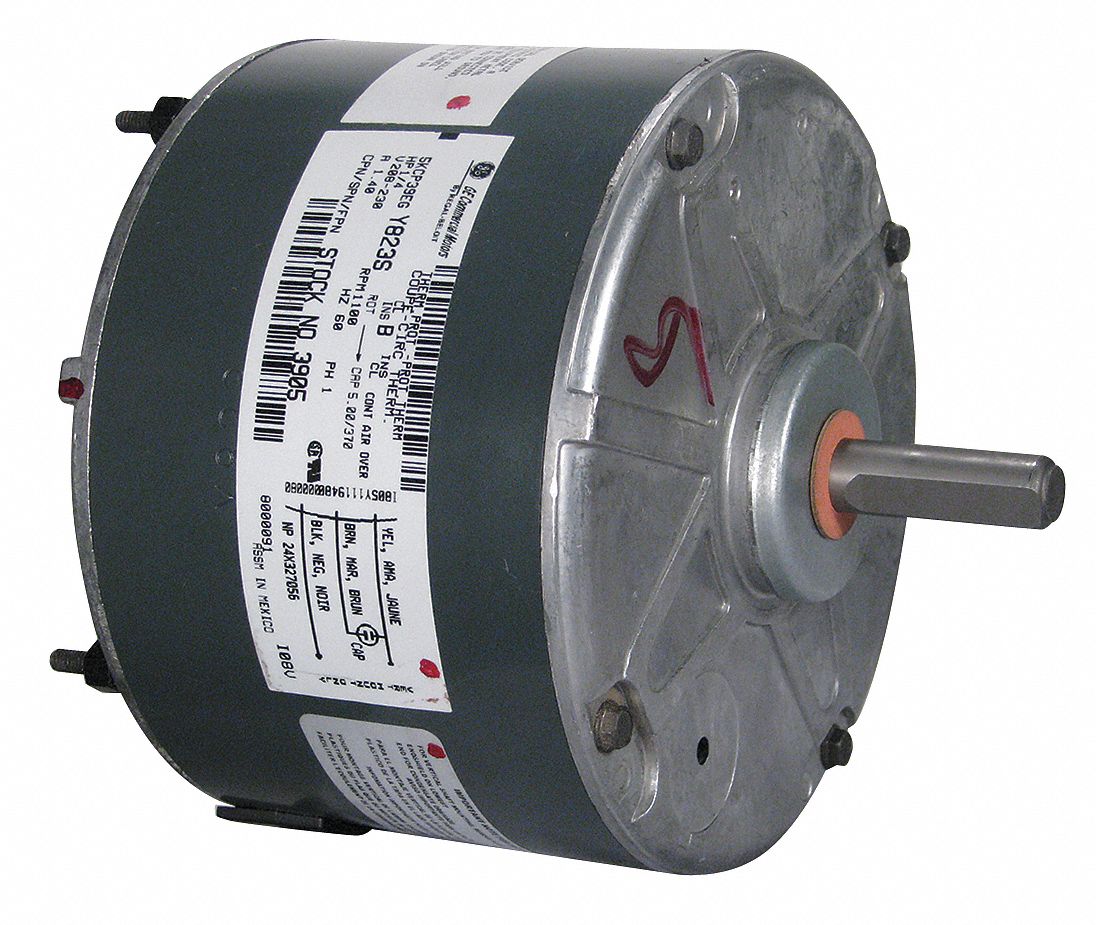

GENTEQ Mtr, PSC, 1/4 HP, 1100 RPM, 208-230V, 48, TENV

Condenser Fan Motor, PSC, 1/4 HP, Nameplate RPM 1100, Voltage 208-230, Frame 48, Totally Enclosed Nonventilated, Number of Speeds 1, Full Load Amps 1.4, 60 Hz, Stud/Band Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CCWSE, Overall Length 5-15/16 In., Shaft Dia. 1/2 In., Shaft Length 1-1/2 In., Capacitor Required 2MDV4
  • Grainger Item #6DLL0
    Price (ea.)$145.10
    BrandGENTEQ
    Mfr. Model #5KCP39EGY823S
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)9.85
    Availability Typically in Stock
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCondenser Fan Motor
Motor TypePSC
EnclosureTotally Enclosed Nonventilated
HP1/4
Nameplate RPM1100
Voltage208-230
Full Load Amps1.4
Frame48
Service Factor1.0
Hz60
MountingStud/Band
BearingsSleeve
Thermal ProtectionAuto
RotationCCWSE
Insulation ClassB
Max. Ambient Temp.40 Degrees C
Number of Speeds1
Phase1
Shaft Dia.1/2"
Shaft Length1-1/2"
Body Dia.5-3/5"
Length Less Shaft4-7/16"
Overall Length5-15/16"
Stud Pattern3-11/16 x 3-11/16"
Stud Size8"
Capacitor Required2MDV4
ApplicationReplaces Carrier Mfr. No. 5KCP39EGY823S and GE 5KCP39EGS070S
RPM Range1000-1380
StandardsUL Recognized (E46035, E306343, E27885), CSA Certified (MC236833)
