Electrical
>
Starters and Contactors
>
Magnetic Motor Starters

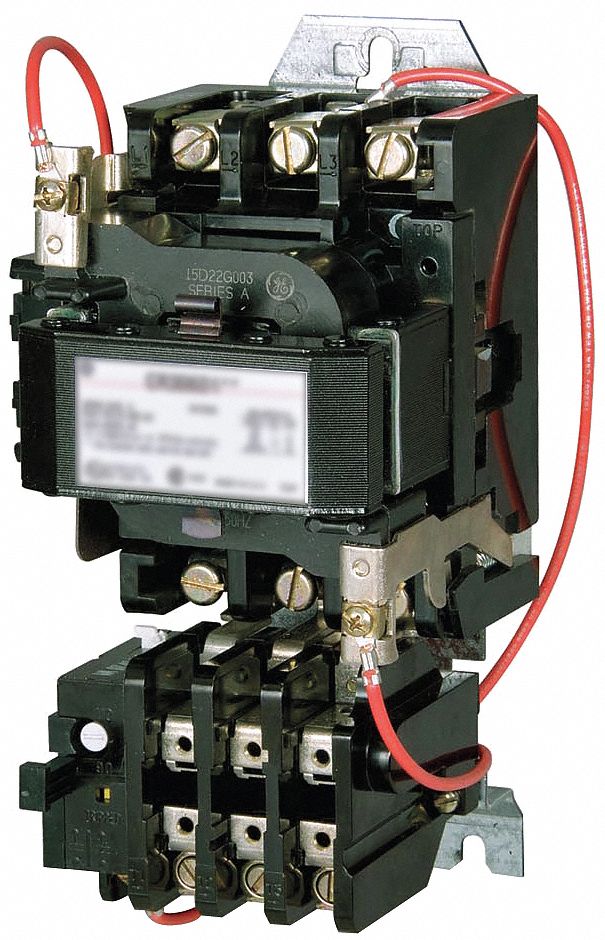

GENERAL ELECTRIC Mtr Starter, NEMA Size2, 3P, 115-120V, 45A

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motor Starter, NEMA, Nonreversing, NEMA Size 2, NEMA Enclosure Type Open, Coil Volts 120VAC, 50/60 Hz, Number of Poles 3, 25 to 50 Amps AC, Aux. Contact Configuration 1NO, 10 HP @ 3 Phase - 208V, 15 HP @ 3 Phase - 230V, 25 HP @ 3 Phase - 460V, Height (In.) 7, Width (In.) 3.71, Depth (In.) 3.94, Standards UL/CSA, Includes Electronic Overload Relay

Grainger Item #	6ANF2
Price (ea.)	$845.50
Brand	GENERAL ELECTRIC
Mfr. Model #	CR306D00200XAAAAJ
UNSPSC #	39121521
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	8.35
Availability	Typically in Stock
Catalog Page No.	322
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Mtr Starter, NEMA Size2, 3P, 115-120V, 45A

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motor Starter
Type		NEMA
Starter Type		Nonreversing
NEMA Size		2
Coil Volts		120VAC
Hz		50/60
Number of Poles		3
Amps AC		25 to 50
HP @ 3 Phase - 208V		10
HP @ 3 Phase - 230V		15
HP @ 3 Phase - 460V		25
Height (In.)		9.12
Width (In.)		5.44
Depth (In.)		5.50
Aux. Contact Configuration		1NO
NEMA Enclosure Type		Open
Standards		UL/CSA
Includes		Electronic Overload Relay
