GENERAL ELECTRIC GP Mtr, 3 Ph, ODP, 3/4 HP, 1725 rpm, 56C

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 3/4 HP, Nameplate RPM 1725, Voltage 208-230/460, 56C Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 3.3-3.0/1.5, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.25Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	5N975
Price (ea.)	$287.25
Brand	GENERAL ELECTRIC
Mfr. Model #	5K46KN4031
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	20.0
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

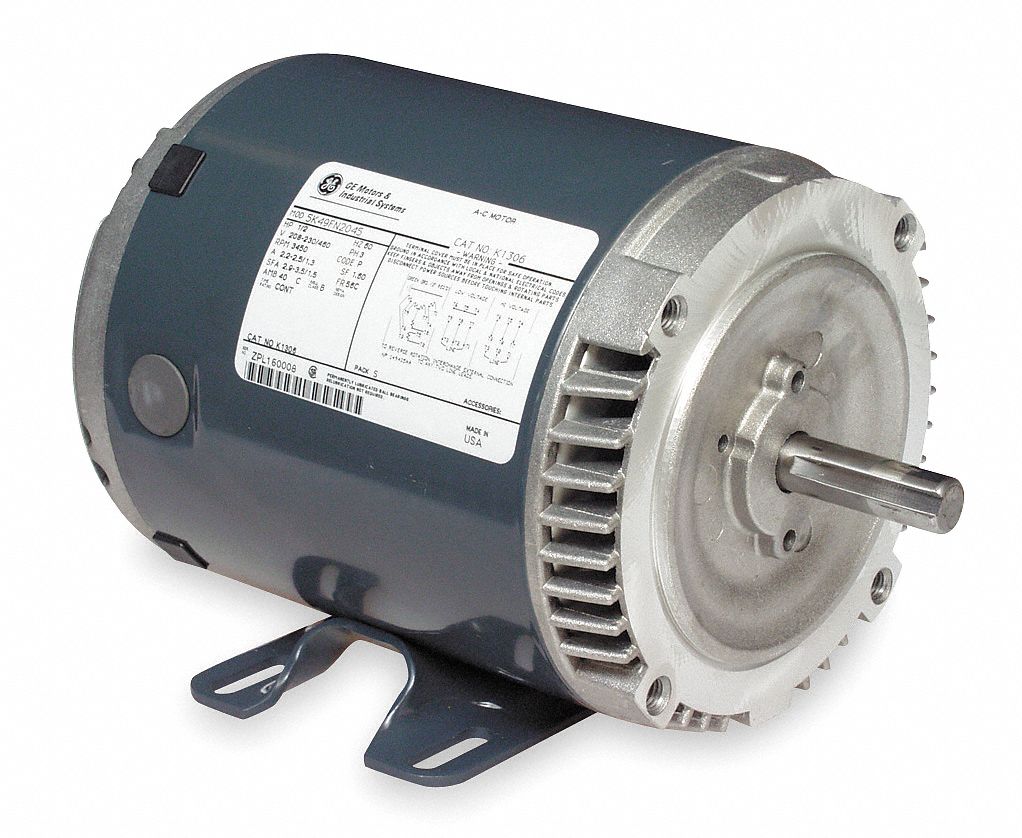

GP Mtr, 3 Ph, ODP, 3/4 HP, 1725 rpm, 56C

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		3/4
Nameplate RPM		1725
NEMA/IEC Frame		56C
Frame		56C
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		3.3-3.0/1.5
Number of Speeds		1
Mounting		Face/Base
Mounting Position		Horizontal/Vertical
Thermal Protection		None
Insulation Class		B
Service Factor		1.25
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Shaft Type		Keyed
RPM Range		1400-1800
Duty		Continuous
Nominal Efficiency		74.3%
Warranty (Years)		1
