GENERAL ELECTRIC GP Mtr, 3 Ph, ODP, 1/2 HP, 1725 rpm, 56C

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 1/2 HP, Nameplate RPM 1725, Voltage 208-230/460, 56C Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 2.3-2.2/1.1, 60/50 Hz, Face Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 9-1/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	3N683
Price (ea.)	$244.50
Brand	GENERAL ELECTRIC
Mfr. Model #	5K42HN4127
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.0
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

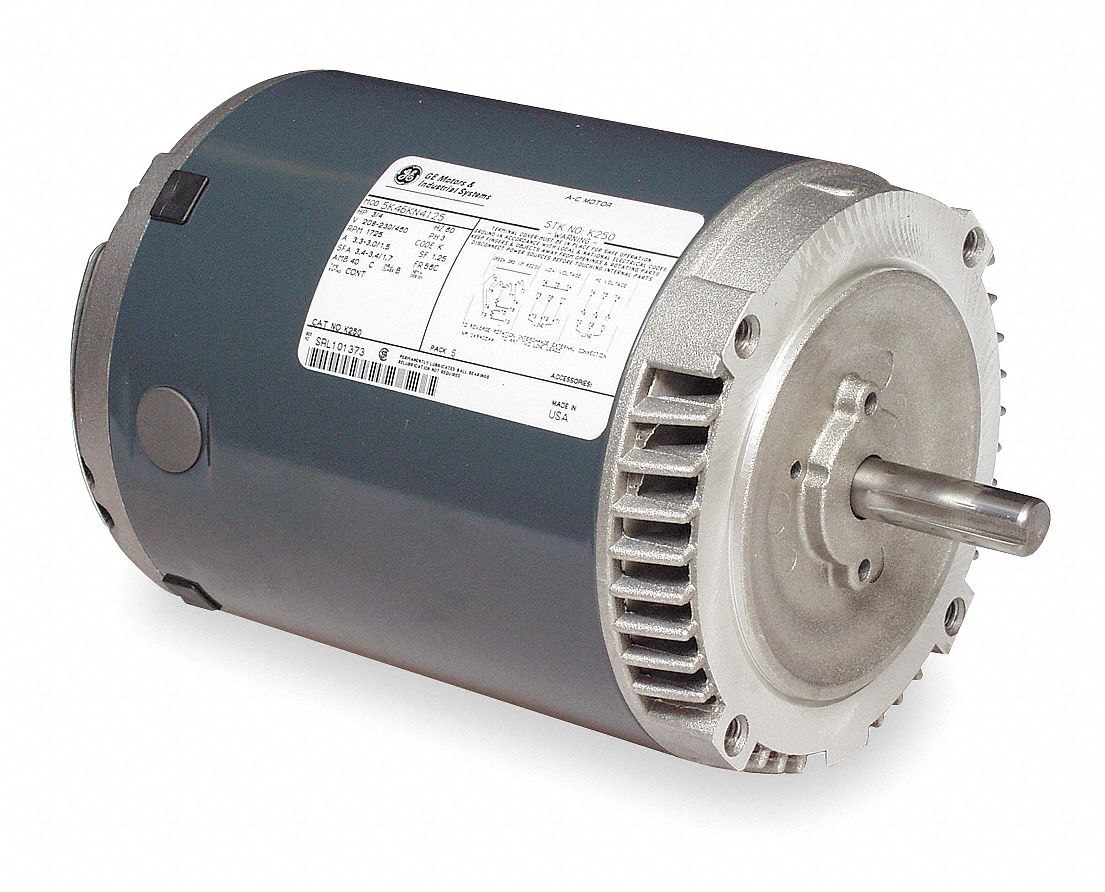

GP Mtr, 3 Ph, ODP, 1/2 HP, 1725 rpm, 56C

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		1/2
Nameplate RPM		1725
NEMA/IEC Frame		56C
Frame		56C
Voltage		208-230/460
Hz		60/50
Phase		3
Full Load Amps		2.3-2.2/1.1
Number of Speeds		1
Mounting		Face
Mounting Position		Horizontal/Vertical
Thermal Protection		None
Insulation Class		B
Service Factor		1.25
Bearings		Ball
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		7-3/16"
Overall Length		9-1/16"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Nominal Efficiency		73.4%
Warranty (Years)		1
Footnotes		68
