GENERAL ELECTRIC

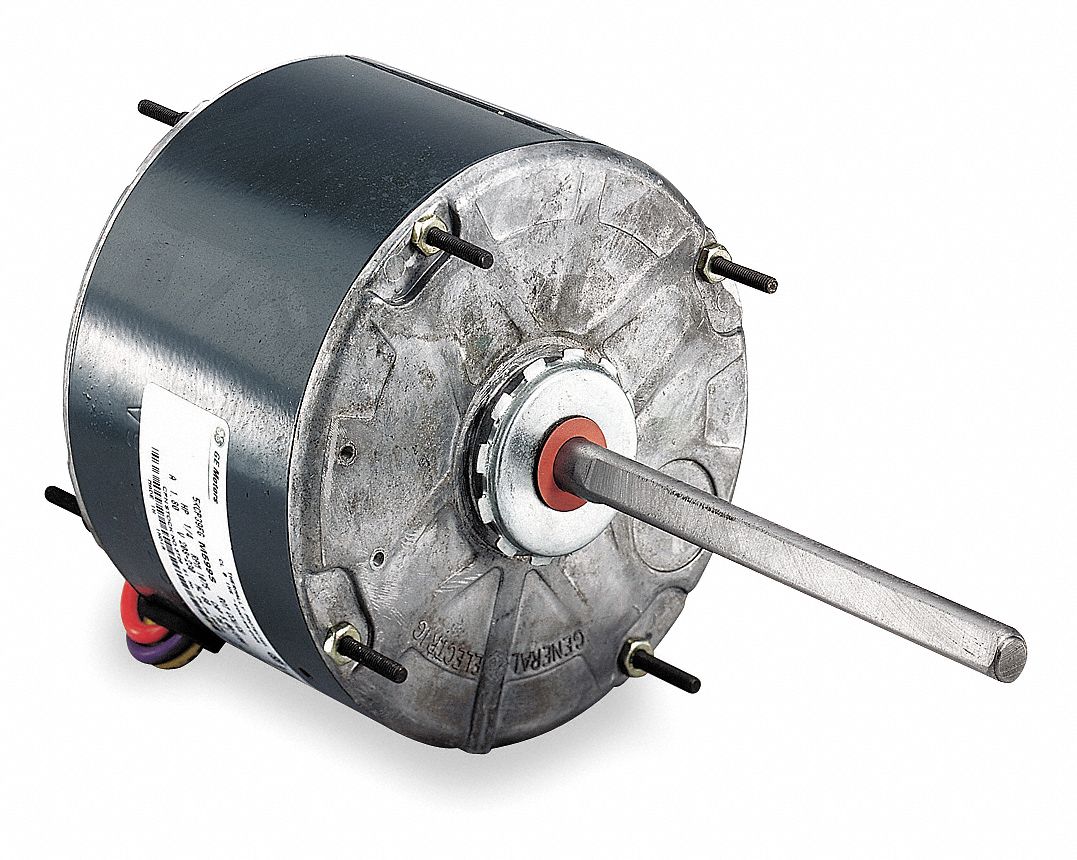

Motor, PSC, 1/4 HP, 1075, 208-230v, 48YZ, TEAO

Condenser Fan Motor, Permanent Split Capacitor, Totally Enclosed Air-Over, 1/4 HP, Number of Speeds 1, Nameplate RPM 1075, NEMA/IEC Frame 48YZ, Voltage 208-230, 60 Hz, Full Load Amps 1.8, Stud Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.00, Sleeve Bearings, Ambient 60 C, CW/CCW Rotation, Length Less Shaft 5 1/8 In, Shaft Dia 1/2 In, Shaft Length 6 In, Body Dia 5 5/8 In, Capacitor Required 2GE76
Grainger Item #1YJB5
Price (ea.)$89.65
BrandGENERAL ELECTRIC
Mfr. Model #5KCP39FGM599S
Ship Qty. 1
Sell Qty. (Will-Call) 1
Ship Weight (lbs.)10.9
Availability Ready to Ship
Catalog Page No.72 catalog
Country of Origin
(Country of Origin is subject to change.)		Mexico

  • Add to Order
  • Add to Personal List
  • Compare Alternate Items
Price shown may not reflect your price. Sign in or register.
When can I get it? Use your ZIP code to estimate availability.
  1.
  2.
Check Pickup Availability ButtonPlease wait...
ItemCondenser Fan Motor
Motor TypePermanent Split Capacitor
EnclosureTotally Enclosed Air-Over
HP1/4
Number of Speeds1
Nameplate RPM1075
NEMA/IEC Frame48YZ
Voltage208-230
Hz60
Phase1
Full Load Amps1.8
MountingStud
Thermal ProtectionAuto
Insulation ClassB
Service Factor1.0
BearingsSleeve
Ambient (C)60
RotationCW/CCW
Length Less Shaft (In.)5-1/8
Shaft Dia. (In.)1/2
Shaft Length (In.)6
Body Dia. (In.)5-5/8
Stud Quantity4
Stud Pattern (In.)3 11/16 x 3 11/16
Stud Size (In.)1/8
Nominal EfficiencyStandard
Shaft TypeDouble Flat
Shaft OrientationUp/Down
Lead Length (In.)26
Features26" Motor Leads, Water Slinger on Shaft, Mounting Holes in Shell for Capacitor Bracket
DutyContinuous Air-Over
Capacitor Required2MDV4
RPM Range1000-1380
StandardsUL Recognized (E46035), CSA Certified (MC236833)
Mfr. Stock No.3728



Required Accessories

More Accessories

Run Capacitor, 5 MFD, 370 VAC, Oval

Brand:

DAYTON

Grainger Item #:

2MDV4

Price (ea.):

$6.46

Add to Order
