GENERAL ELECTRIC Circuit Breaker, 2Pole, 30A, THQ, 120/240V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circuit Breaker, Plug In, AIR Rating 10kA, Standard Circuit Breaker Type, Number of Poles 2, Voltage 120/240VAC, 30 Amps, 2 Phase, Any Phase Connection, Min Wire Size 14 AWG, Max Wire Size 8 AWG, Length 3.28 In, Width 2.00 In, Depth 2.38 In, Screw Clamp Terminal Connection, For Use With Power Mark Gold Load Centers and AQ Lighting Panels, Frame Size THQ, High Amp Trip Setting 300 Fixed, Standards UL/ CSA

Grainger Item #	3HXL3
Price (ea.)	$30.50
Brand	GENERAL ELECTRIC
Mfr. Model #	THQL2130
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.2
Availability	Typically in Stock
Catalog Page No.	287
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

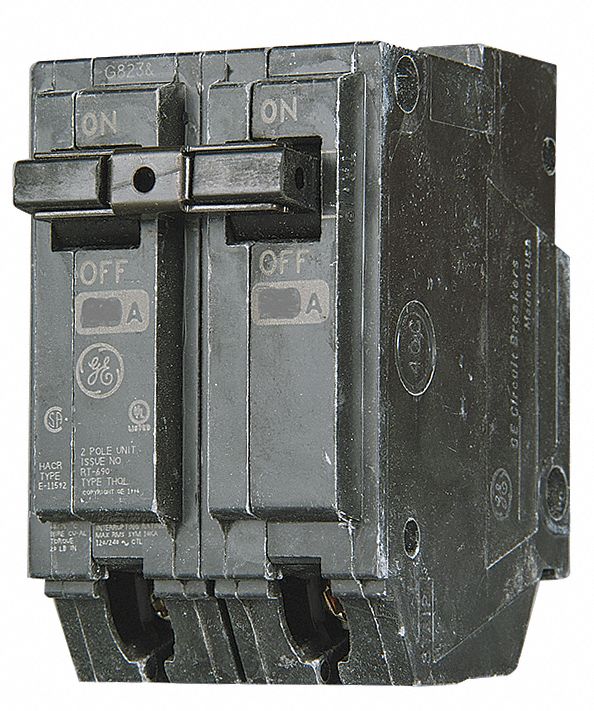

Circuit Breaker, 2Pole, 30A, THQ, 120/240V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circuit Breaker
Type		Panelboard Mount
Circuit Breaker Type		Standard
Number of Poles		2
Amps		30
Voltage		120/240 VAC
AIR Rating		10k
AIR @ 120VAC		10k
Phase		1
Phase Connection		Any
Terminal Connection		Screw Clamp
Min. Wire Size (AWG)		14
Max. Wire Size (AWG)		8
Length (In.)		3.28
Width (In.)		2.00
Depth (In.)		2.38
Instantaneous Trip		Fixed
High Amp Trip Setting		300
Frame Size		THQ
For Use With		Power Mark Gold Load Centers and AQ Lighting Panels
Standards		UL, CSA
Panelboard Mounting		Plug-In
