GENERAL CABLE Control Cable, 22 AWG, 15 Conductors, 7/30

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Communication and Control Cable, Unshielded, Conductor Type Stranded Copper, Number of Conductors 15, Voltage 300, Color Gray, Stranding 7/30, Insulation Premium-Grade, Color-Coded S-R PVC (UL1061), Vertical Tray Flame Test Meets UL 70, 000 BTU, Temp. Range -4 to 176, Standards NEC Article 800 Type CM (UL: 75 Degrees C); UL Style 2464 (UL: 80 Degrees C, 300V); UL Style 2576 (UL: 80 Degrees C, 150V); CSA CMG (CSA 60 Degrees C); RoHS Compliant Directive 2002/95/EC; Passes CSA CMG Flame Test

Grainger Item #	19G602
Price (ea.)	$1,608.00
Brand	GENERAL CABLE
Mfr. Model #	C4073A.41.10
UNSPSC #	26121603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	18.3
Availability	Item ships within 3 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

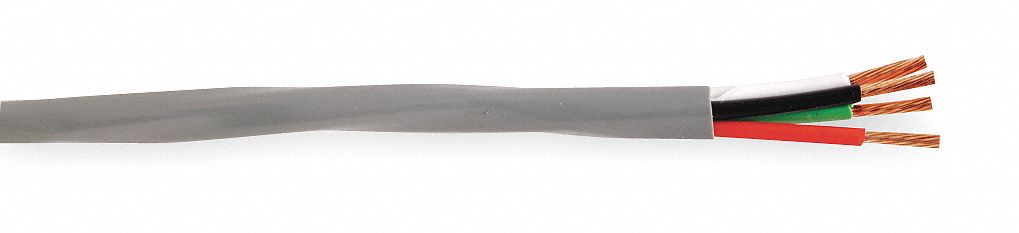

Control Cable, 22 AWG, 15 Conductors, 7/30

Enlarge Image

Item		Communication and Control Cable
Cable Type		Unshielded
Conductor Type		Stranded Copper
Number of Conductors		15
Conductor Size (AWG)		22
Nominal Outside Dia. (In.)		0.303
Spool/Coil Length (Ft.)		1000
Voltage		300
Color		Gray
Stranding		7/30
Insulation		Premium-Grade, Color-Coded S-R PVC (UL1061)
Vertical Tray Flame Test		Meets UL 70,000 BTU
Temp. Range		-4 to 176
Standards		NEC Article 800 Type CM (UL: 75 Degrees C); UL Style 2464 (UL: 80 Degrees C, 300V); UL Style 2576 (UL: 80 Degrees C, 150V); CSA CMG (CSA 60 Degrees C); RoHS Compliant Directive 2002/95/EC; Passes CSA CMG Flame Test
Jacket Material		PVC
Capacitance		24.5 pF/ft
Application		Public Address Systems; Intercoms; Internal Telephones; Remote Control Circuits; Suitable For EIA RS-232 Applications
Facing Material		Conductors
NEC Article		800
Package Quantity		1
