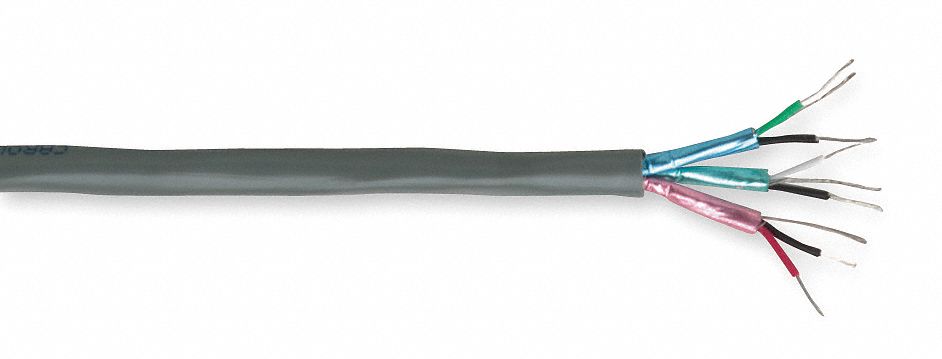

GENERAL CABLE Control Cable, 22 AWG, 2 Conductors, 7/30

Communication and Control Cable, Individually Shielded, Conductor Type Stranded Copper, Twisted Pairs, Number of Conductors 2, Voltage 300, Color Gray, Stranding 7/30, Insulation Premium-Grade, Color-Coded Polypropylene, Vertical Tray Flame Test Meets UL 70, 000 BTU, Temp. Range -4 to 176, Standards NEC Article 800 Type CM (UL: 75 Degrees C, 300V); UL Style 2717 (UL: 80 Degrees C); UL Style 2835 (UL: 60 Degrees C, 30V); CSA CMH (CSA: 60 Degrees C); RoHS Compliant Directive 2002/95/EC; Passes CSA
  • Grainger Item #19G497
    Price (ea.)$702.00
    BrandGENERAL CABLE
    Mfr. Model #C1353A.41.10
    UNSPSC #26121603
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)18.3
    Availability Item ships within 3 business days from supplier
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)
    USA
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
ItemCommunication and Control Cable
Cable TypeIndividually Shielded
Conductor TypeStranded Copper, Twisted Pairs
Number of Conductors2
Conductor Size (AWG)22
Nominal Outside Dia. (In.)0.208
Spool/Coil Length (Ft.)1000
Voltage300
ColorGray
Stranding7/30
InsulationPremium-Grade, Color-Coded Polypropylene
Vertical Tray Flame TestMeets UL 70,000 BTU
Temp. Range-4 to 176
StandardsNEC Article 800 Type CM (UL: 75 Degrees C, 300V); UL Style 2717 (UL: 80 Degrees C); UL Style 2835 (UL: 60 Degrees C, 30V); CSA CMH (CSA: 60 Degrees C); RoHS Compliant Directive 2002/95/EC; Passes CSA CMH Flame Test
ShieldingIndividually Shielded Pairs; 100% Aluminum/Polyester, 25% Overlap, Foil Facing Out; Stranded Tinned Copper Drain Wire
Jacket MaterialPVC
Capacitance25.0 pF/ft
ApplicationWhere Total Isolation Of Signal Is Required; Computers; Control Circuits; Industrial Equipment
Facing MaterialConductors
NEC Article800
Package Quantity1


Optional Accessories

More Accessories

Brand:

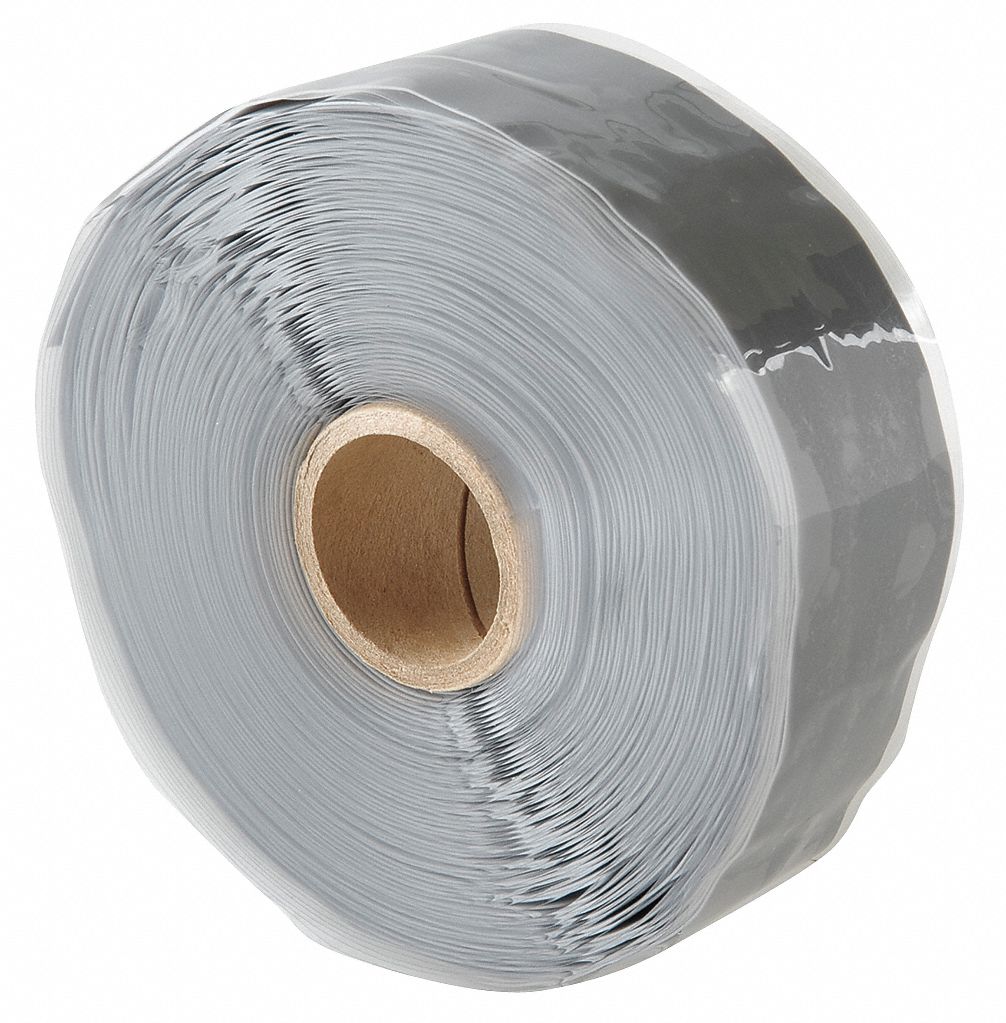

ER TAPE

Grainger Item #:

6PFH5

Price (ea.):

$19.62
