GEMS SENSORS Flow Rate Sensor, 3/8 MNPT, 0.2 to 2.0 GPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Flow Rate Sensor, Turbine, Housing Material Noryl, Connection Size 3/8 MNPT In., Max. Voltage 24, Pulses per Gallon 10, 313, Flow Range 0.2 to 2.0 GPM, Accuracy Plus or Minus 2 %, Cable Length 3 Ft., Input Power 5 to 24 VDC @ 8mA, Flow Range 0.8 TO 7.6 LPM, Max. Viscosity 32-81 SSU, Operating Pressure 200 PSI, Operating Temp. Range -4 to 176 F, Circuit Type NPN, Repeatability +/- 0.5 %, Wetted Materials Nylon, SS, Noryl, POM, PS, Agency Compliance NSF Std. 61 Listed, Includes Cable

Grainger Item #	4ARK9
Price (ea.)	$137.30
Brand	GEMS SENSORS
Mfr. Model #	FT-330 0.2 - 2.0 GPM
UNSPSC #	41112501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.15
Availability	Typically in Stock
Catalog Page No.	4111
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

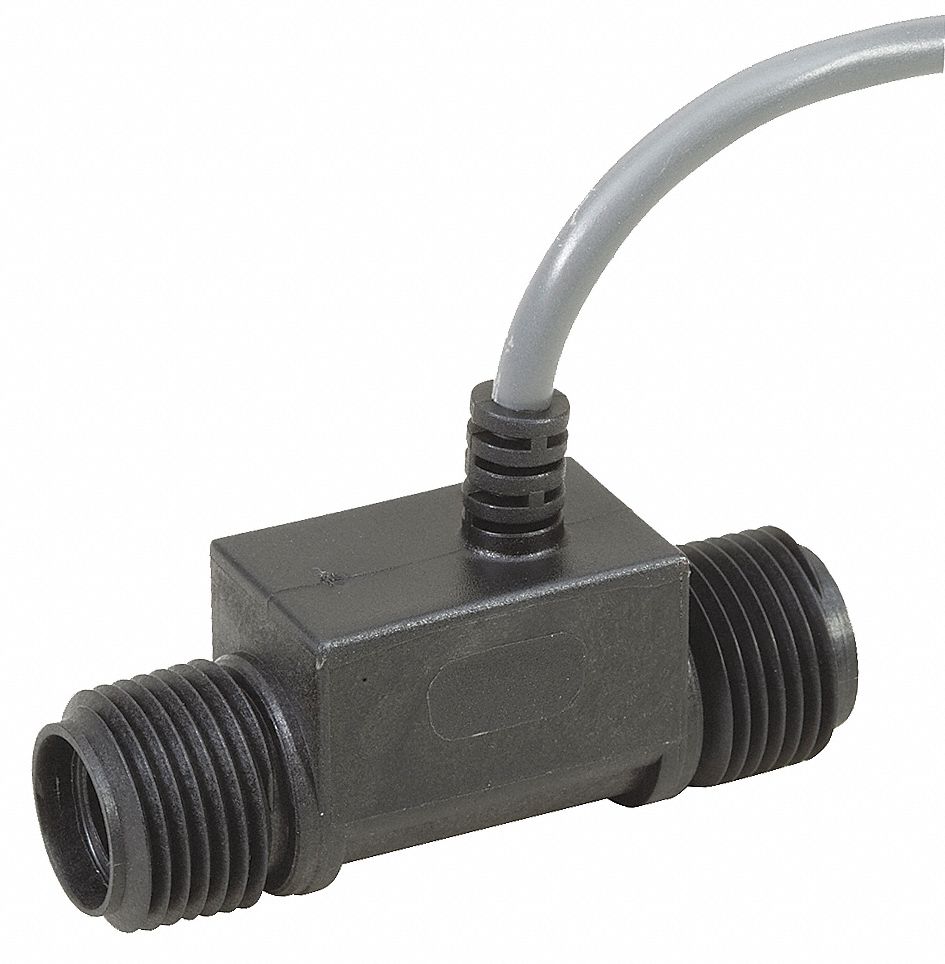

Flow Rate Sensor, 3/8 MNPT, 0.2 to 2.0 GPM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Flow Rate Sensor
Type		Turbine
Housing Material		Noryl
Connection Size (In.)		3/8 MNPT
Max. Voltage		24
Pulses per Gallon		10,313
Flow Range		0.2 to 2.0
Flow Range (GPM)		0.2 to 2.0
Accuracy (%)		+/- 2
Cable Length (Ft.)		3
Input Power		5 to 24 VDC @ 8mA
Flow Range (LPM)		0.8 TO 7.6
Output Frequency (Hertz)		34 to 343
Pulses per Liter		2724
Max. Viscosity (SSU)		32 to 81
Recommended Filtration (microns)		Less Than 50
Operating Pressure (PSI)		200
Burst Pressure (PSI)		1000
Operating Temp. Range (F)		-4 to 176
Circuit Type		NPN
Repeatability (%)		+/-0.5
Gauge/Conductor		#22 AWG
Wetted Materials		Nylon, SS, Noryl, POM, PS
Length (In.)		2-15/64
Width (In.)		45/64
Height (In.)		57/64
Agency Compliance		NSF Std. 61 Listed
Includes		Cable
