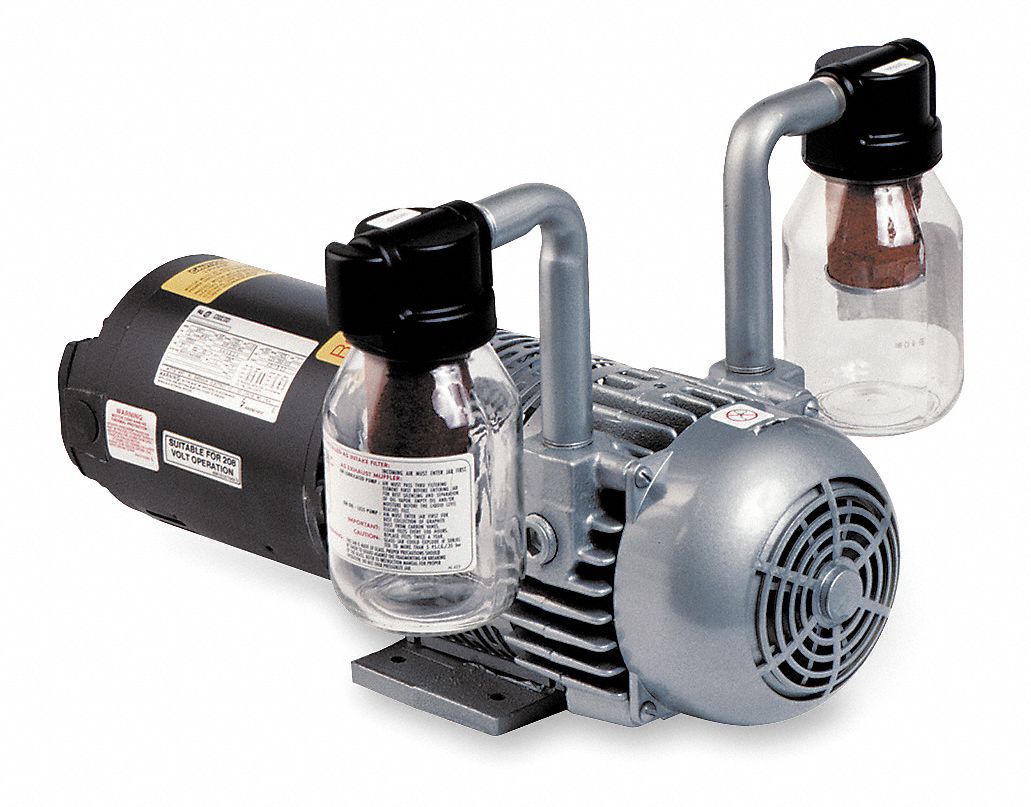

GAST Pump, Vacuum, 1 1/2 HP

JavaScript Disabled

Your web browser does not have JavaScript enabled.
In order to use most of the functionality of this website, you will need to have JavaScript
enabled in your browser.

Item		Compressor/Vacuum Pump
Type		Rotary Vane
HP		1-1/2
Voltage		230/460
Phase		3
Full Load Amps		4.7-4.4/2.2
Hz		60
(F)NPT Inlet (In.)		3/4
(F)NPT Outlet (In.)		3/4
Free Air CFM @ 0 PSI		21.00
Free Air CFM @ 5 PSI		19.5
Free Air CFM @ 10 PSI		17.90
Max. Vacuum (In. Hg)		27.0
Free Air CFM @ 0 Vacuum (in Hg)		21.00
Free Air CFM @ 5 Vac (in Hg)		17
Free Air CFM @ 10 Vac (in Hg)		13.00
Free Air CFM @ 15 Vac (in Hg)		9.00
Free Air CFM @ 20 Vac (in Hg)		5.00
Free Air CFM @ 25 Vac (in Hg)		1.50
Motor Enclosure		TEFC
RPM		1725
Housing		Cast Iron
Bearings		Sealed
Design		Oil-less
Features		Self-adjusting, Self-lubricating Vanes For Maximum Efficiency
Motor Mounting		Close Coupled
Includes		Filter and Muffler Assembly

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Grainger Item #	7Z783
Price (ea.)	$1,536.00
Brand	GAST
Mfr. Model #	7Z783
UNSPSC #	40151502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	91.55
Availability	Typically in Stock
Catalog Page No.	4013
Country of Origin (Country of Origin is subject to change.)	USA
