Pneumatics
>
Air Compressors and Vacuum Pumps
>
Piston Air Compressor/Vacuum Pump

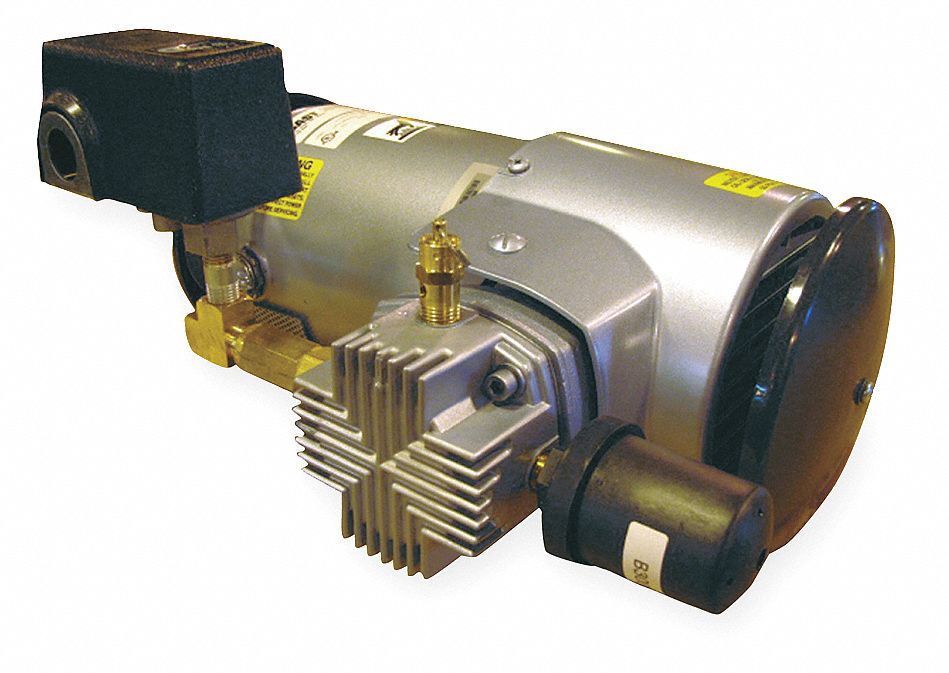

GAST Air Compressor, 1/3 HP, 2.00 CFM, 115 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Piston Air Compressor, Oil-Less, 1/3 HP, Voltage 115, 60 Hz, 1 Phase, 7.2 Full Load Amps, FNPT Outlet 1/4 In, Max PSI Cont/Int 50/50, Free Air CFM @ 0 PSI 2, Length 14.96 In, Width 9.4 In, Height 7.71 In, Cast Iron Cylinder Material, 1 Cylinders, Motor Type ODP, Sound Rating 75 dbA, Oil-Less Design, Agency Compliance UL 2125, Temp Range 32 to 104 F

Grainger Item #	3HDG5
Price (ea.)	$1,045.00
Brand	GAST
Mfr. Model #	3LEM-246S-M345EX
UNSPSC #	40151601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.45
Availability	Typically in Stock
Catalog Page No.	4014
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Piston Air Compressor
Type		Oil-Less
HP		1/3
Voltage		115
Hz		60
Phase		1
Full Load Amps		7.2
(F)NPT Inlet (In.)		1/4
(F)NPT Outlet (In.)		1/4
Max. PSI Cont./Int.		50/50
Free Air CFM @ 0 PSI		2.00
Free Air CFM @ 50 PSI		0
Length (In.)		15
Width (In.)		9-2/5
Height (In.)		7-3/4
Cylinder Material		Cast Iron
Cylinders		1
Motor Type		ODP
RPM		1750
Sound Rating		75 dbA
Design		Oil-Less
Finish		Gray Paint
Valve		Stainless Steel
Agency Compliance		UL 2125
Bearings		Permanently Lubricated Sealed Bearings
Temp. Range		32 to 104F
Thermal Protection		InterN/Al Thermal Protector
Application		Dry Pipe Sprinkler Systems
