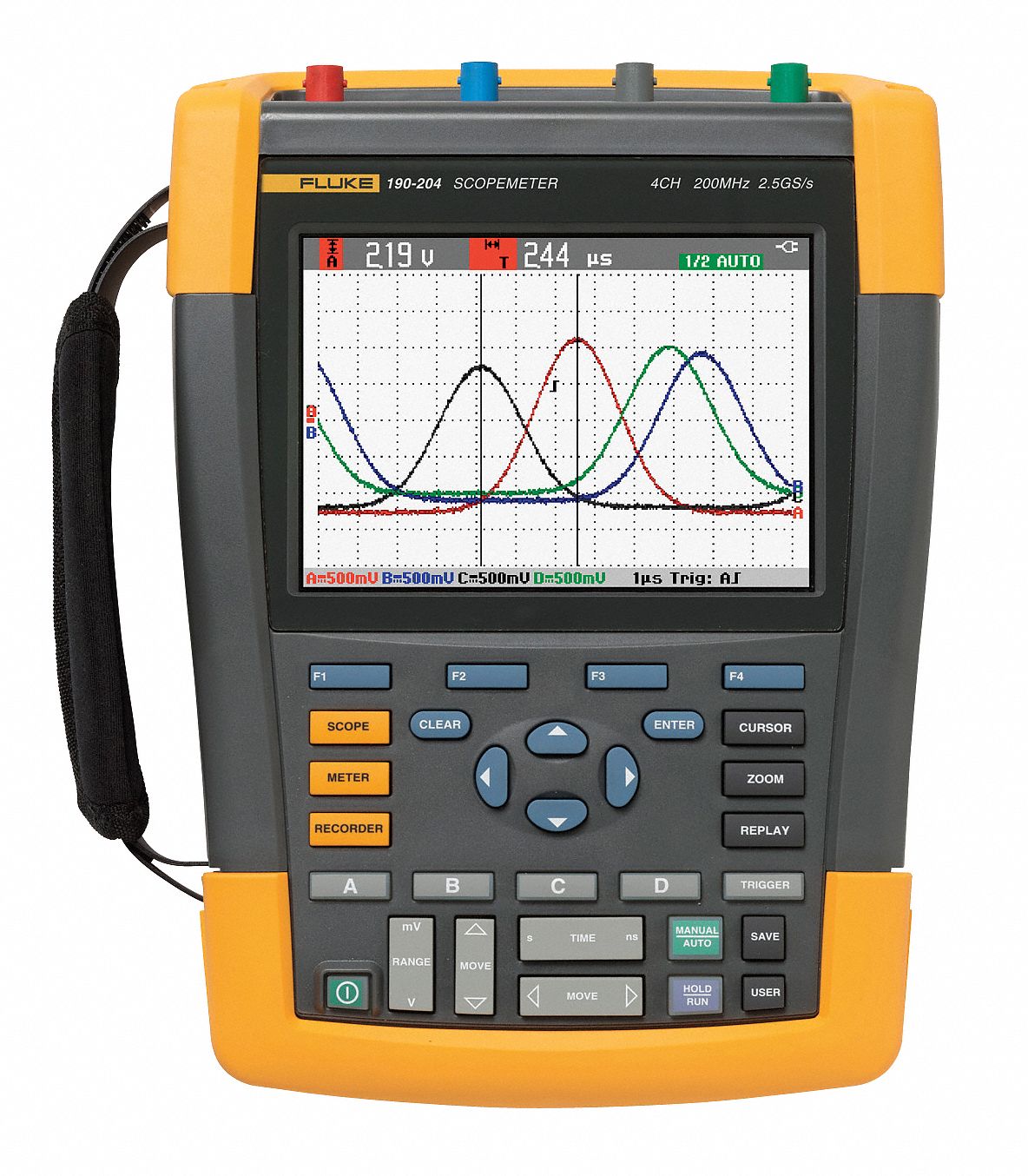

FLUKE Oscilloscope Kit, 200 MHz, 2.5 GS/s

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Portable Oscilloscope Kit, Bandwidth (MHz) 200 MHz, Channels 4, Display 153 mm Full-Color LCD with LED Backlight, Sampling Rate 2.5 GS/s, Max./Min. Sweep Speed 5 ns - 2 min/div, Includes BC190 Power Adapter, BP291 Double Capacity Li-ion, Battery Pack, VPS410-R Probe Red, VPS410-B Probe Blue, VPS410-G Probe Gray, VPS410-V Probe Green, USB Cable A - B (Mini), Hanging Strap, Side Strap, CD Users Manual With Flukeview, Scopemeter Software Demo Version, Statement of Calibration Practice

Grainger Item #	6WZP4
Price (ea.)	$5,167.00
Brand	FLUKE
Mfr. Model #	Fluke-190-204/WWG
UNSPSC #	41113638
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.22
Availability	Typically in Stock
Catalog Page No.	793
Country of Origin (Country of Origin is subject to change.)	Netherlands

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Portable Oscilloscope Kit
Bandwidth (MHz)		200 MHz
Channels		4
Display		153 mm Full-Color LCD with LED Backlight
True RMS		Yes, Volts rms
Sampling Rate		2.5 GS/s
Max./Min. Sweep Speed		5 ns - 2 min/div
Waveform/Measurement Stored		Two Multiple Input Scoperecord Waveforms Can Be Saved Internally for Later Recall And Analysis, Direct Storage on External FlashMemory Drive Through USB Host Port.
Max. Record Length		10k/ Channel
FFT Analysis		FrequencySpectrum Using FFT Analysis
Cursors & Zoom		Ranges From Full Record Overview To Zoom In UpTo Sample Level At Any Record Length
Real Time Clock		Provides Date And Time Stamp Information For Scope Record, 100 Screen Replay SequencesAnd For Trend Plot Recordings
Triggering Mode		Automatic Connect-and-View(TM), Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable Pulsewidth(Channel A Only), N-Cycle
Input Sensitivity		2 mV/div to 100 V/div
Persistence		Digital Persistence Off/Short/Medium/Long/Infinite, Traces Fade Ot In Seven Levels
Glitch Capture		8 ns Peak Detect On Each Channel
Capacitance Measurements		N
Interface		USB Cable
Safety Rating		CAT III 1000V / CAT IV 600V
Battery Type		Li-ion Battery
Battery Life		Up to 7 hrs
Features		IEC61010 1000 V Cat Iii/600 V Cat IV Safety Rating, Four Fully Isolated Floating Input Channels With Up To 2.5 Gs/S Real-time Sampling Rate, 8ns Glitch Detect, 10,000 Sample Deep Memory Per Channel for Displaying High Resolution Waveform Details, 4 Trendplot tm Traces, 4 Scoperecordtm Traces, High Capacity Li-ion Batteries Offer Up to Seven Hours Operation, Battery Access Door to Easily Swap out Batteries For Extended Operation, Two Electrically Isolated Usb Ports, Mini Usb-a For Pc Connectivity and a Usb Memory Device Port, Security Slot to Lock Down Instrument Using Standard Kensington(R) Pc Lock, Screw Insert for Standard Camera Mounting Accessories, 100 Mhz or 200 Mhz Bandwidth, Up to 2.5 Gs/S Real Time Sample Rate and Up to 400 Pico Seconds Resolution, Connect-and-viewtm to Easily Trigger on and Display Even Complex Waveforms, Trendplottm and Scoperecord(TM) to Capture or Plot
Calibration Certificate		No
Includes		BC190 Power Adapter, BP291 Double Capacity Li-ion, Battery Pack, VPS410-R Probe Red, VPS410-B Probe Blue, VPS410-G Probe Gray, VPS410-V Probe Green, USB Cable A - B (Mini), Hanging Strap, Side Strap, CD Users Manual With Flukeview, Scopemeter Software Demo Version, Statement of Calibration Practice
Manufacturers Warranty Length		3 Years And 1 Year On Accessories
