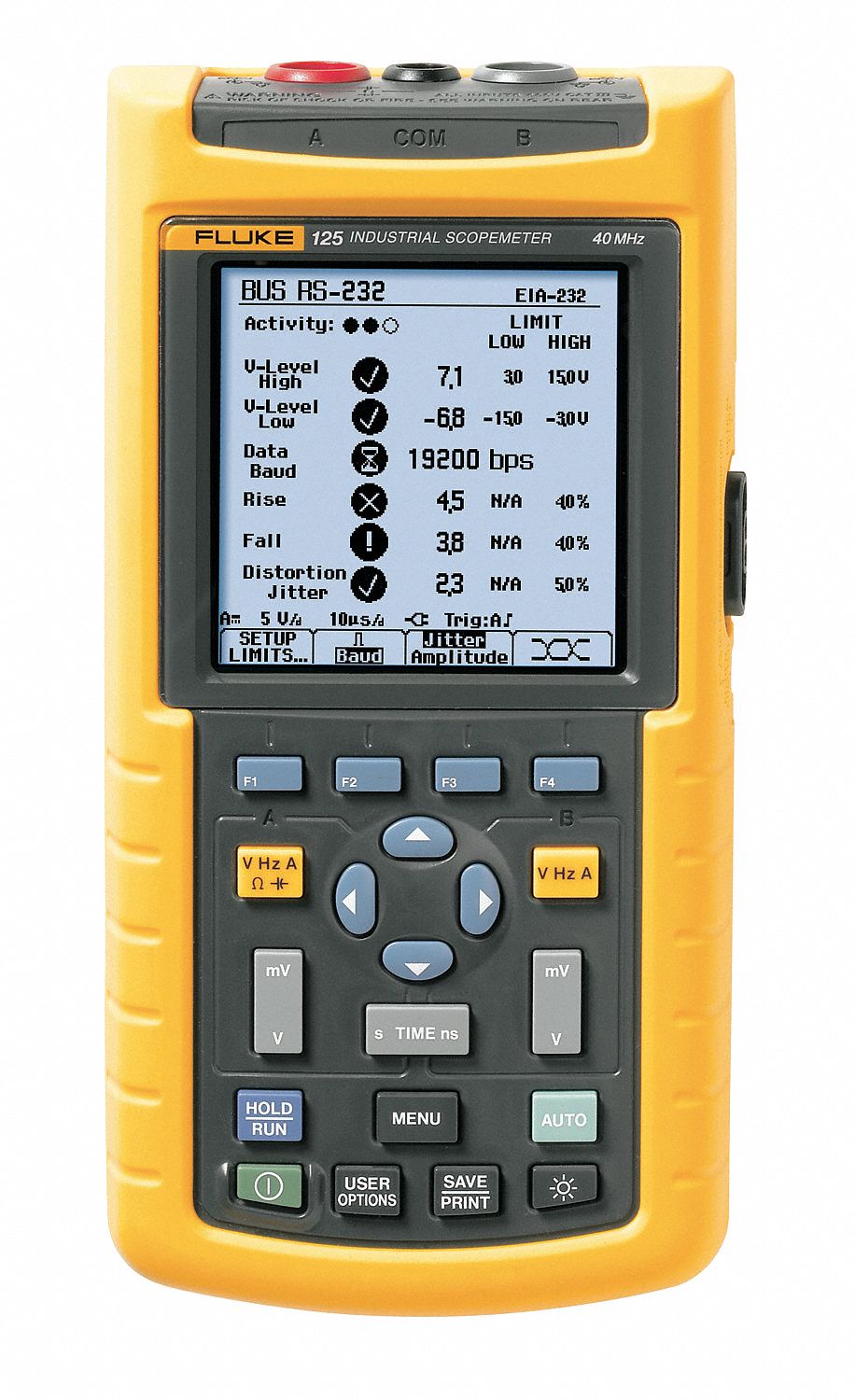

FLUKE Portable Oscilloscope Kit, 40MHZ

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Portable Oscilloscope Kit, Bandwidth (MHz) 40 MHz, Sampling Rate 25 MS/s, Includes STL120 Shielded Test Lead Set, HC120 Hook Clips, BB120 Shielded BNC Adapter, AC120 Alligator clips, PM8907 Battery Charger/Line Voltage Adapter, BP120MH NiMH Battery Pack, Getting Started Booklet, User Manual (CD-ROM), Multi Lingual

Grainger Item #	6MRK9
Price (ea.)	$2,907.00
Brand	FLUKE
Mfr. Model #	FLUKE-125/WWG
UNSPSC #	41113638
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.5
Availability	Typically in Stock
Catalog Page No.	793
Country of Origin (Country of Origin is subject to change.)	Romania

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Portable Oscilloscope Kit
Bandwidth (MHz)		40 MHz
Channels		2
Display		10.2 cm Monochrome LCD
True RMS		Dual Fully Featured 5000 Counts DMM
Sampling Rate		25 MS/s
Waveform/Measurement Stored		HarmonicsMode
Max. Record Length		512 Min/Max Points Per Input
FFT Analysis		No
Cursors & Zoom		Cursors
Real Time Clock		Time and Date Stamp For ScopeRecord, 100 Captured Screens and Trend Plots
Triggering Mode		Connect And ViewTM, Free Run, Single Shot, Edge, Video
Input Sensitivity		5 mV/div, 500 V/div.
Persistence		No
Glitch Capture		40 ns
Capacitance Measurements		50 nF to 500 micron F
Interface		PC And Printer Using Optional Optically Insulated Adapter/Cable OC4USB (USB) or PM9080 (RS-232)
Safety Rating		600 V CAT III
Battery Type		Ni-MH
Battery Life		7 hours
Battery Pack Recharge Time (Hr.)		4
Features		A Dual Input 40 Mhz Or 20 Mhz Digital Oscilloscope, Two 5,000 Counts True-Rms Digital Multimeters, Cursor Measurements, A Dual Input Trendplot Recorder, Connect-And-View Trigger Simplicity For Hands-Off Operation, Shielded Test Leads For Oscilloscope, Resistance, Continuity And Capacitance Measurements, Full Bandwidth, VPS40 10:1 40 Mhz Probe Included Standard, Up To Seven Hours BatteryOperation, 600 V Cat Iii Safety Certified, Optically Isolated RS-232 Interfac, Rugged, Compact Case, Bus Health Test For Industrial BusSystems, Power Measurements And Harmonics Measurement
Calibration Certificate		No
Includes		STL120 Shielded Test Lead Set, HC120 Hook Clips, BB120 Shielded BNC Adapter AC120 Alligator clips, PM8907 Battery Charger/Line Voltage Adapter, BP120MH NiMH Battery Pack Getting Started Booklet, User Manual (CD-ROM), Multi Lingual
Manufacturers Warranty Length		3 Yr
