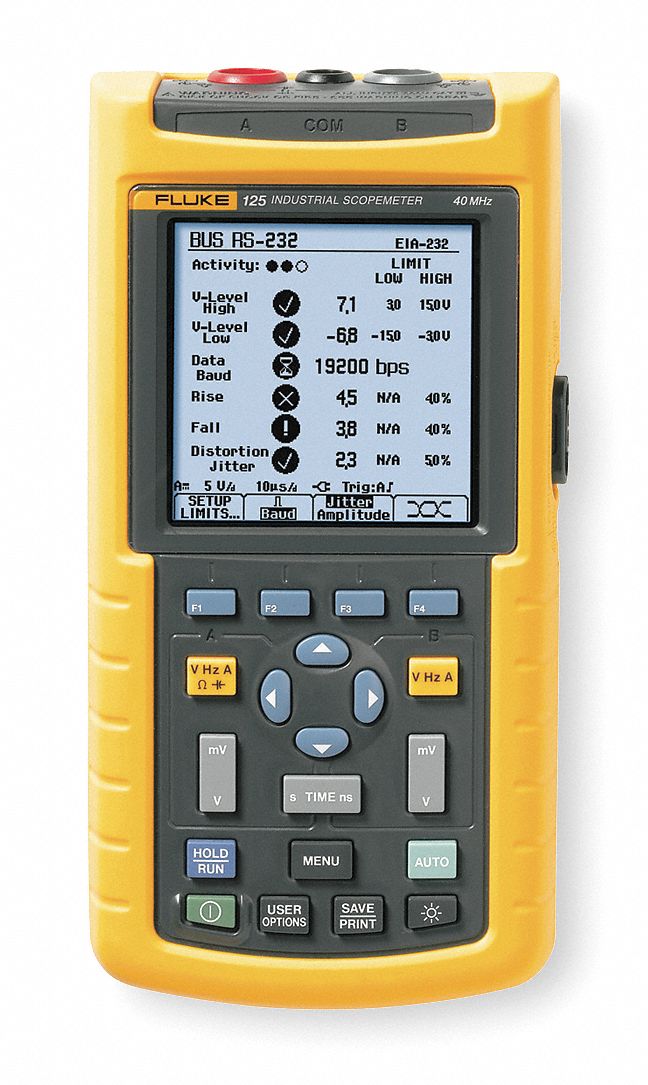

Portable Digital Oscilloscope, Bandwidth (MHz) 40, Monochrome LCD Display, 2 Channels, True RMS Yes, Rechargeable NiMH Battery Type, Battery Life Up to 7 Hr, Battery Pack Recharge Time (Hr.) 7, 20 Waveform/Measurement Stored, Sampling Rate 25 MS/s, 20 nSec to 1 min/div Max./Min. Sweep Speed, Max. Record Length 512 Points, Cursors & Zoom Yes, Real Time Clock Yes, Connect-and-View(TM) Triggering Mode, Glitch Capture Yes, Capacitance Measurements Yes, Optically Isolated RS-232 Interface
  • Grainger Item #2EWV4
    Price (ea.)$3,245.00
    BrandFLUKE
    Mfr. Model #FLK-125-NIST
    UNSPSC #41113638
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)6.45
    Availability Item ships within 11 business days from supplier
    Catalog Page No.793
    Country of Origin
    (Country of Origin is subject to change.)
    Romania
  • Price shown may not reflect your price. Sign in or register.
ItemPortable Digital Oscilloscope
Bandwidth (MHz)40
Channels2
DisplayMonochrome LCD
True RMSYes
Sampling Rate25 MS/s
Max./Min. Sweep Speed20 nSec to 1 min/div
Waveform/Measurement Stored20
Max. Record Length512 Points
Cursors & ZoomYes
Real Time ClockYes
Triggering ModeConnect-and-View(TM)
Input Sensitivity5 mV/Div to 500 V/Div
Glitch CaptureYes
Capacitance MeasurementsYes
InterfaceOptically Isolated RS-232
Safety RatingCAT III 600V
Battery TypeRechargeable NiMH
Battery LifeUp to 7 Hr
Battery Pack Recharge Time (Hr.)7
FeaturesMultimeter Measures AC/DC Voltage, Bus Health Test, Power, Harmonic, Current, Resistance, Diode Check and Continuity
Calibration CertificateNIST
IncludesTest Leads, Oscilloscope Probes and Adapters, Battery and Charger, Clamp On Current Probe and Instructions
Manufacturers Warranty Length3 Years

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Handheld Digital Oscilloscope, NIST" /> <div id="BVRRContentValidationID_2EWV4"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-21" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Handheld Digital Oscilloscope, NIST" />Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_2EWV4"><div id='13724833' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Handheld Digital Oscilloscope, NIST" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">Andy</span><span itemprop="name"> When you need more than a DMM</span><span itemprop="description"> We get electrial &quot;noise&quot; in our equipment and this is a great tool to help find the problem.</span> June 8, 2012<meta itemprop="datePublished" content="2012-06-08" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_2EWV4').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>

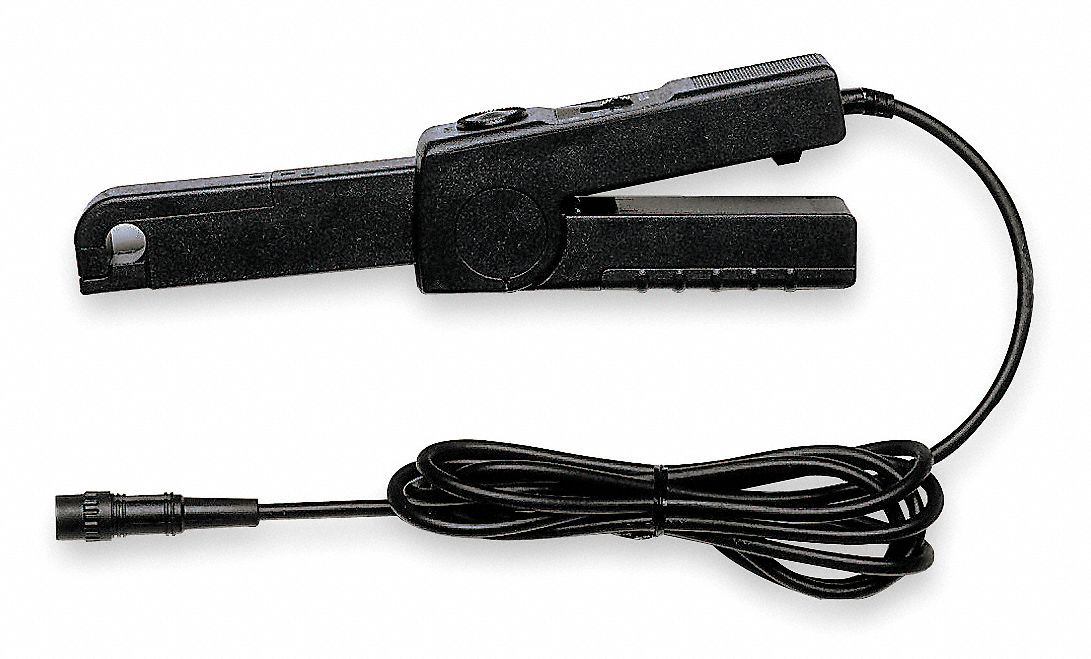

Optional Accessories
