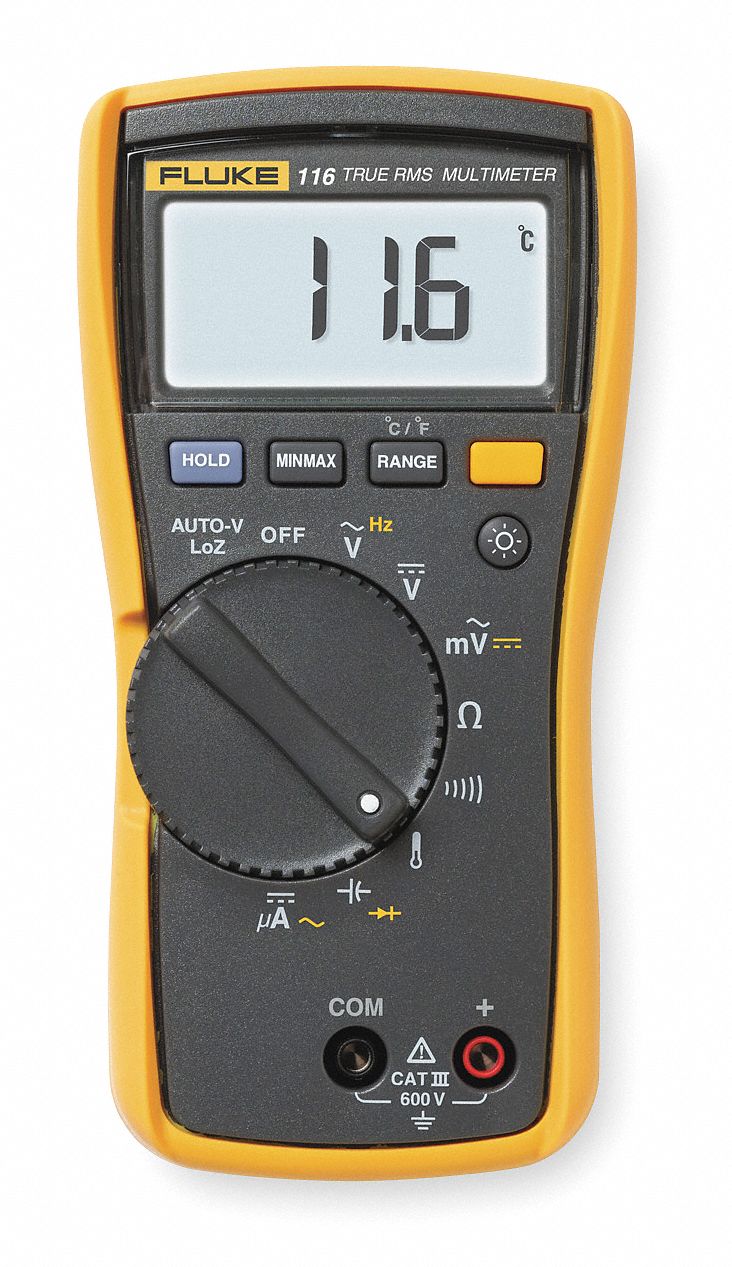

FLUKE Digital HVAC Multimeter, 600V, 40 MOhms

Digital Multimeter, Max. AC Volts 600, Max. DC Volts 600, Max. AC Amps 600uA, Max. DC Amps 600uA, Max. Ohms 40 M Ohms, Basic DC Accuracy +/-0.5 Percent + 2 Digits, Counts 6000, Battery Type 9V Alkaline, Safety Rating CAT III 600V, Audible Continuity Yes, AC Response True RMS, Capacitance Range 1nF to 9999uF, Frequency Counter Range 0.01 Hz to 50 kHzIncludes Test Leads, Battery, Instructions
  • Grainger Item #1GAJ1
    Price (ea.)$234.75
    BrandFLUKE
    Mfr. Model #FLUKE-116
    UNSPSC #41113630
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)1.55
    Availability Typically in Stock
    Catalog Page No.756
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemDigital Multimeter
Max. AC Volts600
Max. DC Volts600
Max. AC Amps600uA
Max. DC Amps600uA
Max. Ohms40 M Ohms
Basic DC Accuracy+/-0.5% + 2 Digits
Counts6000
Battery Type9V Alkaline
Safety RatingCAT III 600V
Audible ContinuityYes
AC ResponseTrue RMS
Capacitance Range1nF to 9999uF
Frequency Counter Range0.01 Hz to 50 kHz
Min./Max. MemoryYes
Data HoldYes
Bar GraphYes
DisplayLCD
Auto RangingYes
Temp. Range14 to 122 Degrees F (-10 to 50 Degrees C), -40 to 140 Degrees F (-40 to 60 Degrees C)
Special FeaturesTemperature and Microamp Measurement Range
Diode TestYes
Auto Power OffYes
IncludesTest Leads, Battery, Instructions
Manufacturers Warranty Length3 yr.
